Operation Manual – HWPing
H3C S3100 Series Ethernet Switches
SD Maximal delay: 0
Packet lost in test: 0%
Disconnect operation number: 0
System busy operation number: 0
Operation sequence errors: 0
Other operation errors: 0
[Sysname-hwping-administrator-icmp] display hwping history administrator
icmp
HWPing entry(admin administrator, tag icmp) history record:
Index
For detailed output description, see the corresponding command manual.

1.3.2 DHCP Test

I. Network requirements
The HWPing client is an H3C S3100 series Ethernet switch, while the DHCP server can
be an H3C S5600 series Ethernet switch. Perform a HWPing DHCP test between the
two switches to test the time required for the HWPing client to obtain an IP address
from the DHCP server.
II. Network diagram

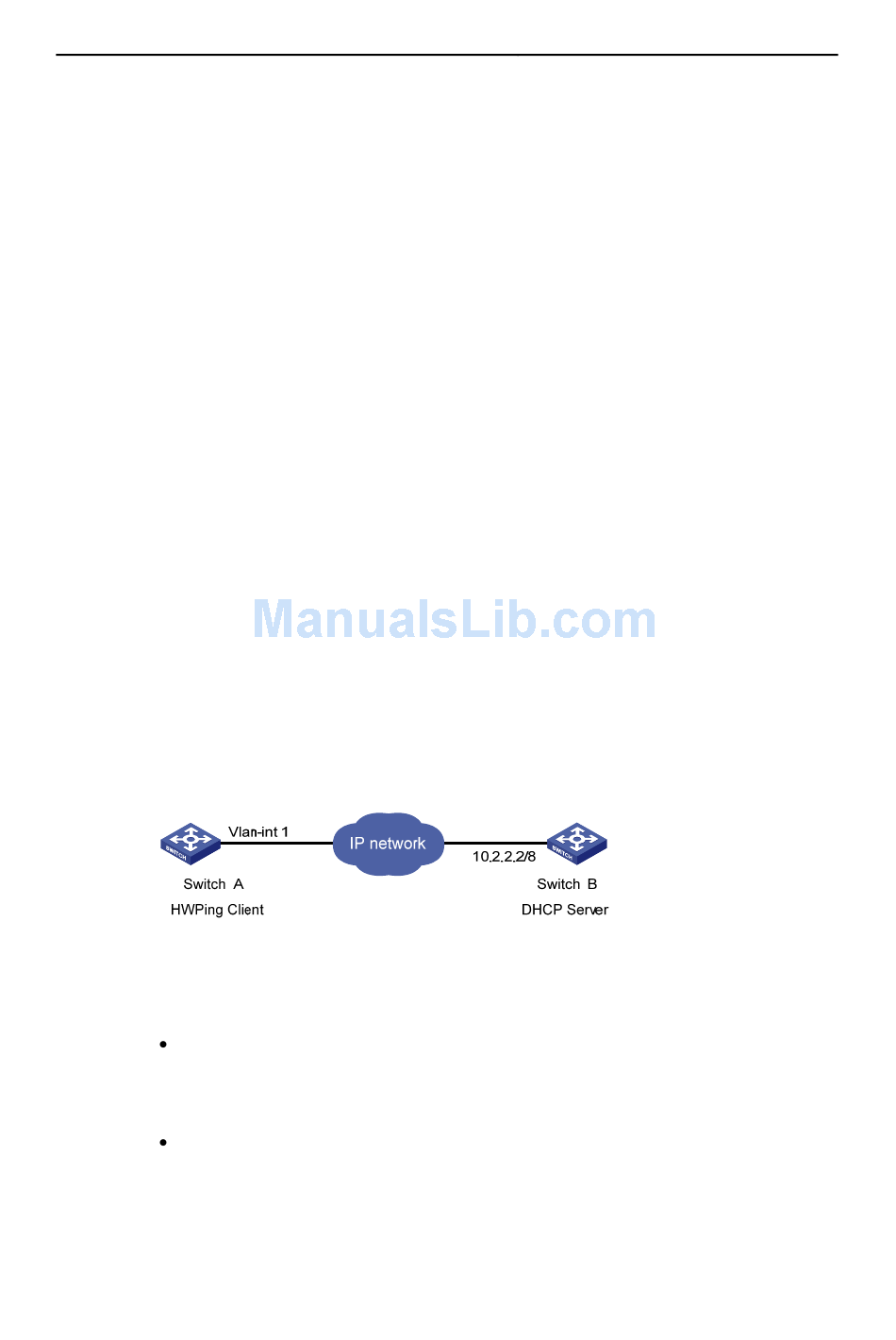

Figure 1-3 Network diagram for the DHCP test
III. Configuration procedure
Configure DHCP Server(Switch B):
Configure DHCP server on Switch B. For specific configuration of DHCP server, refer to
the DHCP module in the H3C S5600 Series Ethernet Switches Operation Manual.
Configure HWPing Client (Switch A):
# Enable the HWPing client.
<Sysname> system-view
[Sysname] hwping-agent enable
Response Status
1 3
2 4
3 4
4 3
5 3
Chapter 1 HWPing Configuration
DS Maximal delay: 0
Operation timeout number: 0
Connection fail number: 0
Drop operation number: 0
LastRC
1 0 2000-04-02 20:55:12.3
1 0 2000-04-02 20:55:12.3
1 0 2000-04-02 20:55:12.2
1 0 2000-04-02 20:55:12.2
1 0 2000-04-02 20:55:12.2
1-22
Time
