II. Network diagram

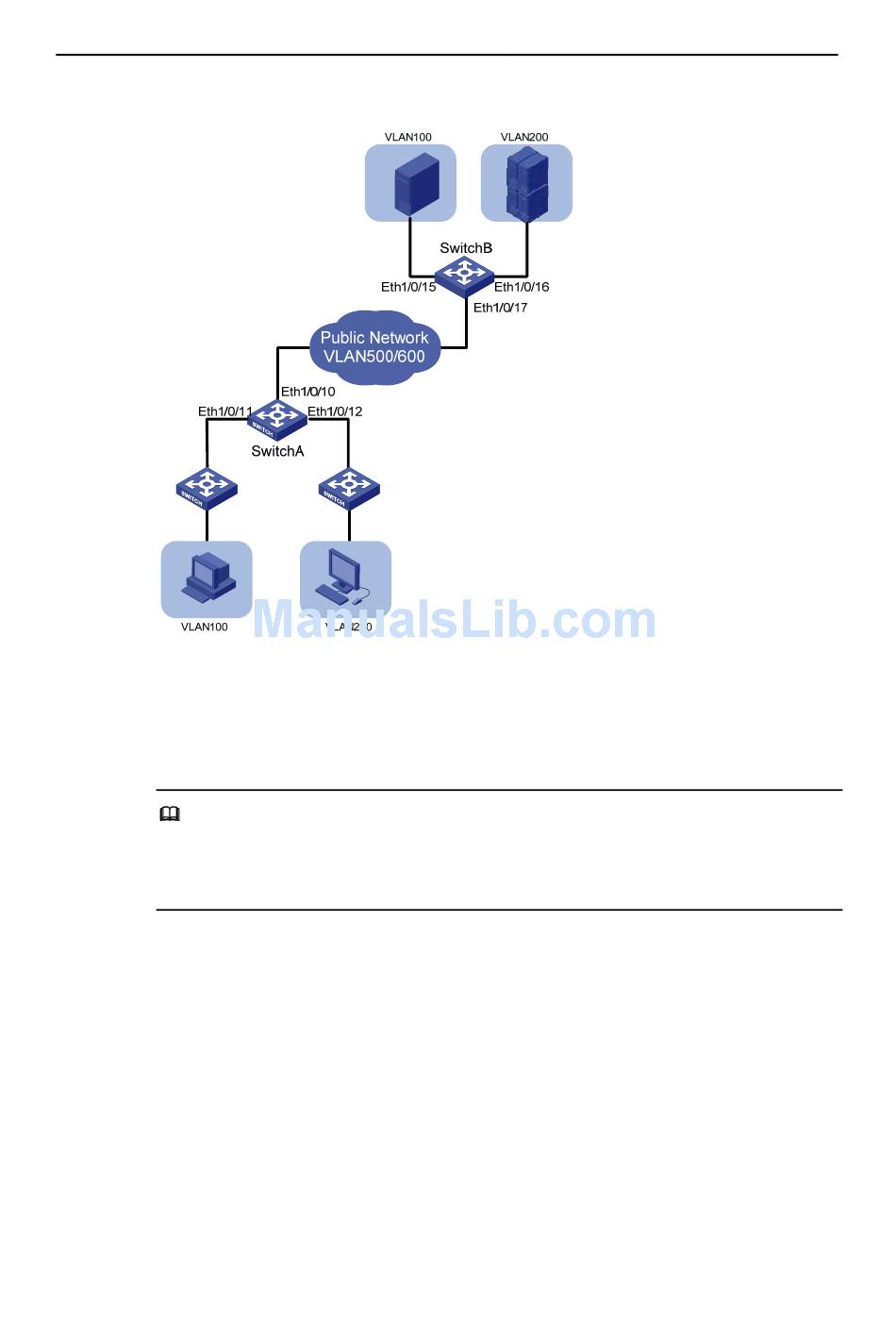

Figure 3-3 Network diagram for VLAN mapping configuration
III. Configuration procedure
Note:
In this example, the VLAN mapping function is enabled based on port-level VLAN
mapping rules.
# Create customer VLANs VLAN 100 and VLAN 200 and service VLANs VLAN 500 and
VLAN 600 on Switch A.
<SwitchA> system-view
[SwitchA] vlan 100
[SwitchA-vlan100] quit
[SwitchA] vlan 200
[SwitchA-vlan200] quit
[SwitchA] vlan 500
[SwitchA-vlan500] quit
[SwitchA] vlan 600
[SwitchA-vlan600] quit
