Operation Manual – Stack-Cluster
H3C S3100 Series Ethernet Switches
Operation
Display the stack
status information
on a slave switch

1.5 Stack Configuration Example

I. Network requirements
Connect Switch A, Switch B and Switch C with each other through their stack ports to
form a stack, in which Switch A acts as the main switch, while Switches B and C act as
slave switches.
Configure Switches B and Switch C through Switch A.
II. Network diagram

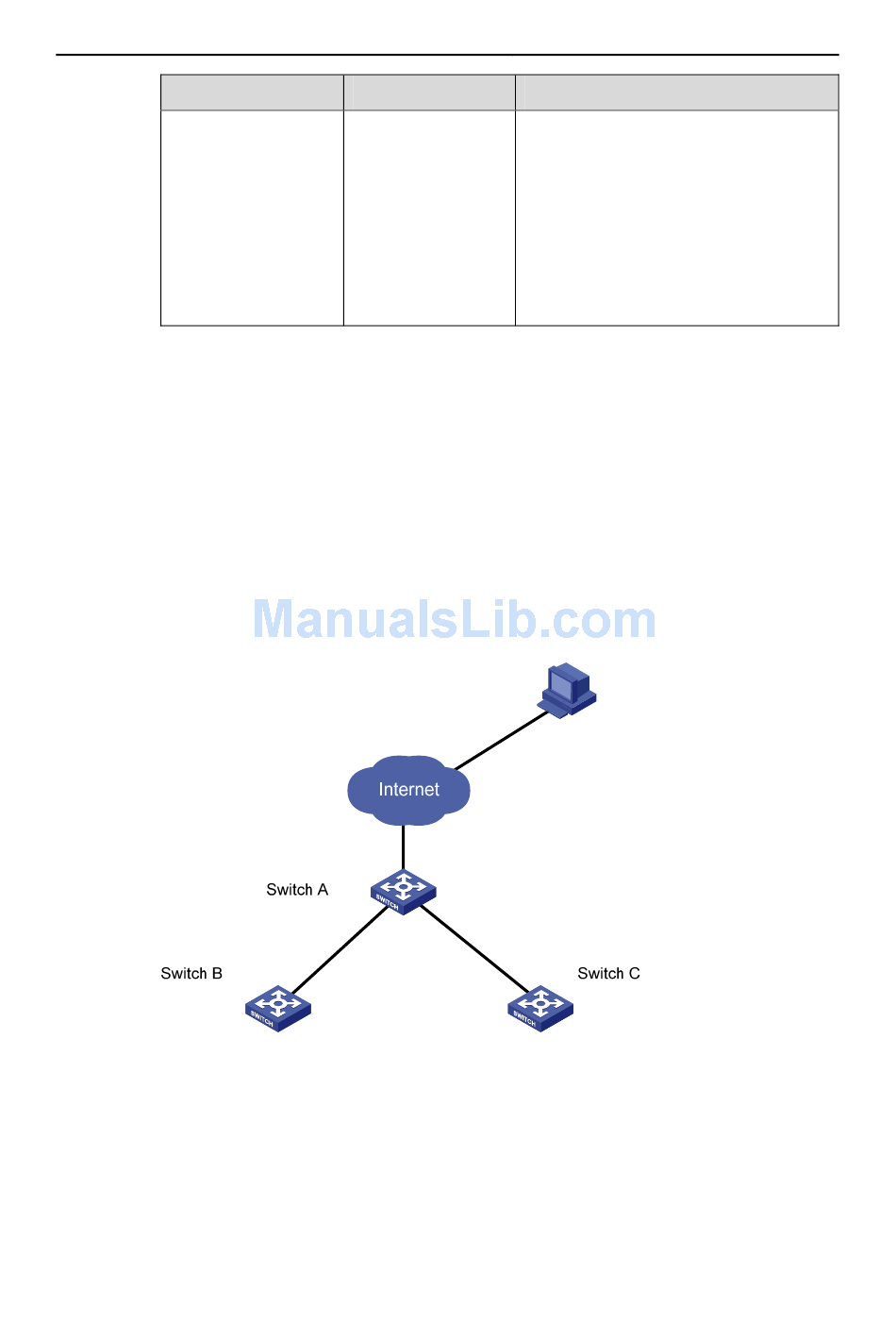

Figure 1-1 Network diagram for stack configuration
III. Configuration procedure
# Configure the IP address pool for the stack on Switch A.
<Sysname> system-view
[Sysname] stacking ip-pool 129.10.1.15 3
Command
display stacking
1-5
Description
Optional
The display command can be
executed in any view.
The displayed information indicates
that the local switch is a slave switch.
The information such as stack number
of the local switch, and the MAC
address of the main switch in the stack
is also displayed.
Chapter 1 Stack
