Operation Manual – VLAN
H3C S3100 Series Ethernet Switches
Note:
To convert a Trunk port into a Hybrid port (or vice versa), you need to use the
Access port as a medium. For example, the Trunk port has to be configured as an
Access port first and then a Hybrid port.
The default VLAN IDs of the Trunk ports on the local and peer devices must be the
same. Otherwise, packets cannot be transmitted properly.

2.2.4 Displaying and Maintaining Port-Based VLAN

Display the hybrid or trunk
ports

2.2.5 Port-Based VLAN Configuration Example

I. Network requirements
As shown in
workstation (Host).
For data security concerns, the two servers are assigned to VLAN 101 with the
descriptive string being "DMZ", and the PCs are assigned to VLAN 201.
The devices within each VLAN can communicate with each other but that in
different VLANs cannot communicate with each other directly.
II. Network diagram
VLAN101
Server
Server

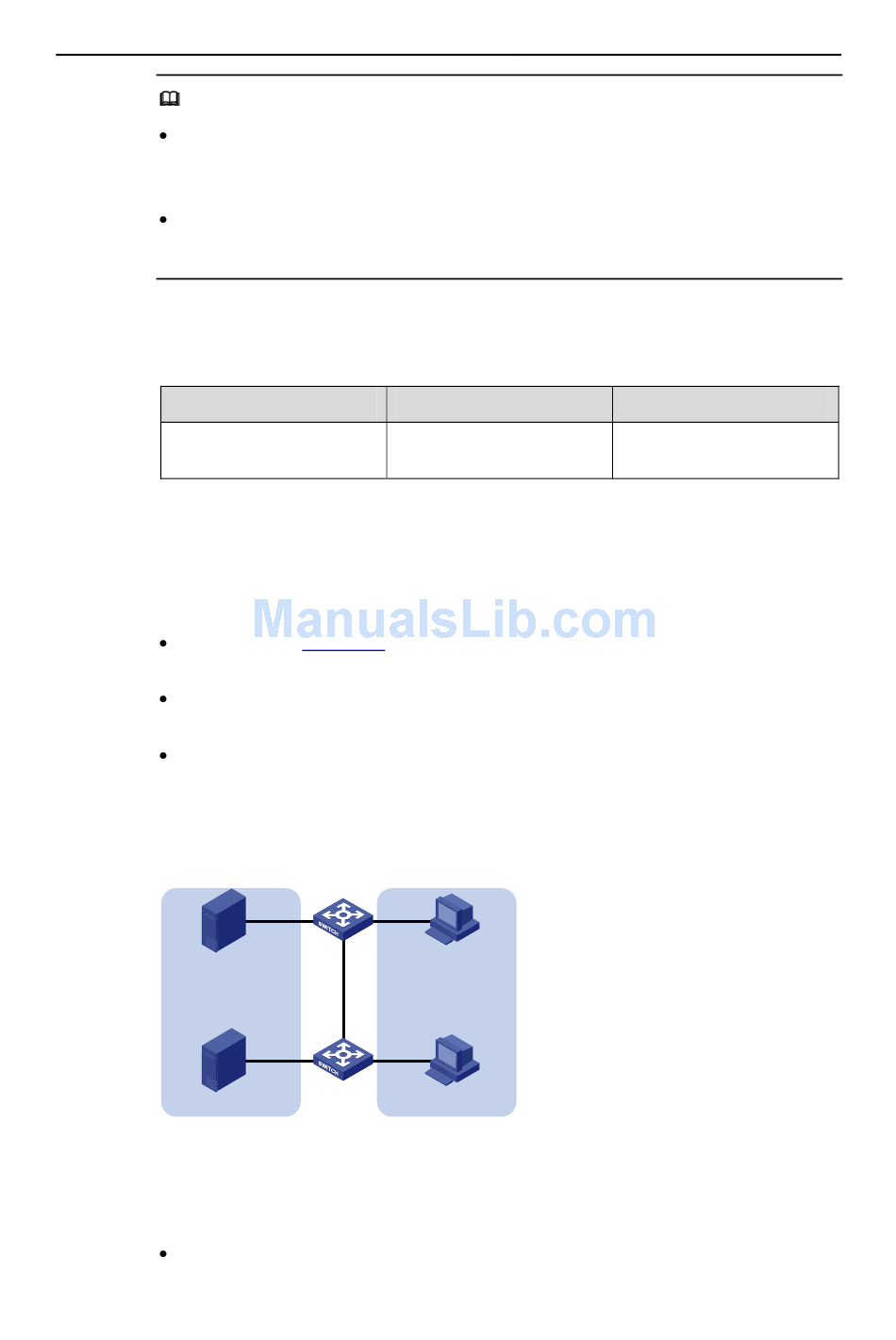

Figure 2-1 Network diagram for VLAN configuration
III. Configuration procedure
Configure Switch A.
To do...
display port { hybrid |
trunk }
Figure 2-1, Switch A and Switch B each connect to a server and a
SwitchA
Eth1/0/1 Eth1/0/2
Eth1/0/3
Eth1/0/10
Eth1/0/11 Eth1/0/12
SwitchB
Use the command...
VLAN201
Host
Host
2-6
Chapter 2 VLAN Configuration
Remarks
Available in any view.
