1.1.3 NTP Implementation Modes

According to the network structure and the position of the local Ethernet switch in the
network, the local Ethernet switch can work in multiple NTP modes to synchronize the
clock.
I. Server/client mode

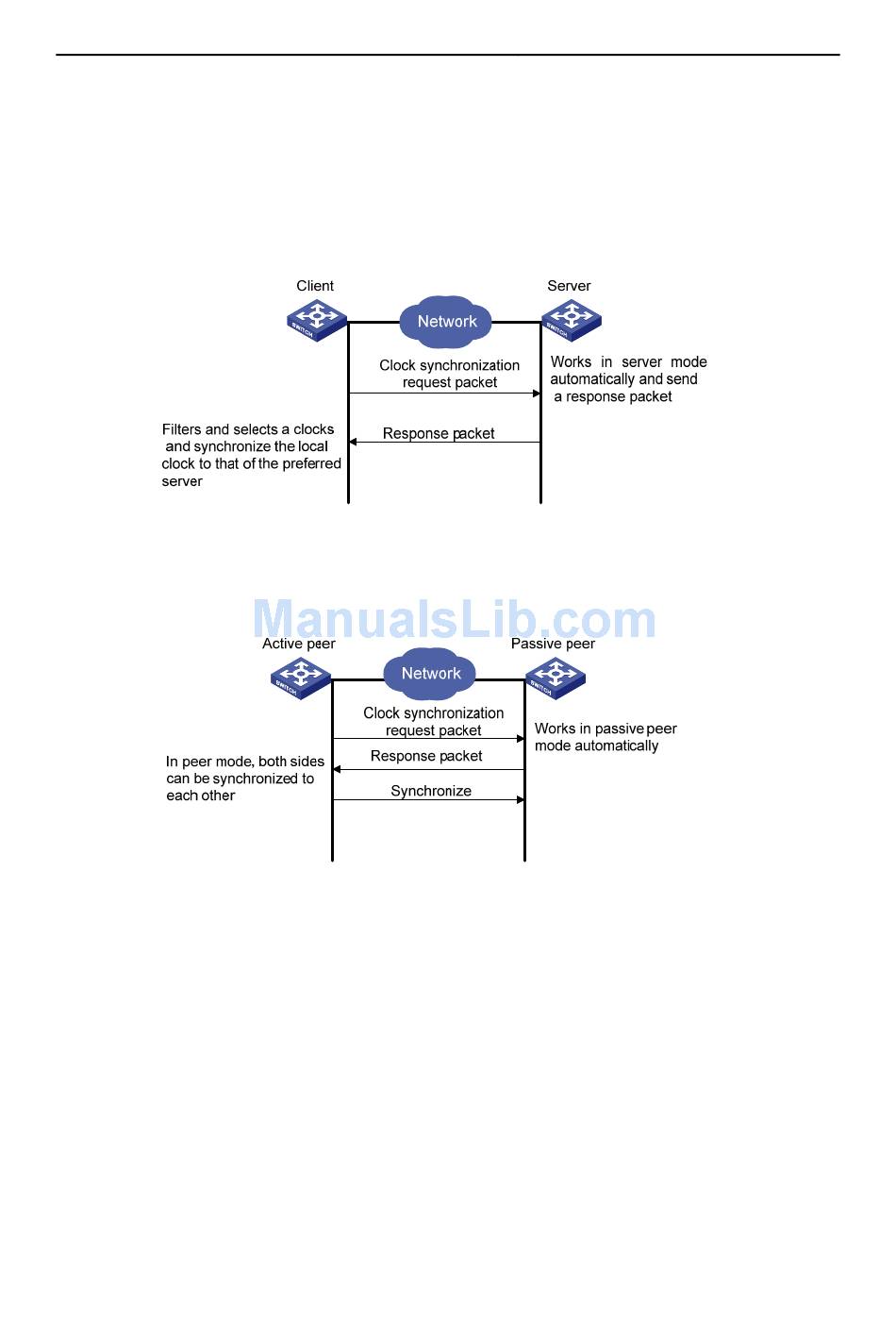

Figure 1-2 Server/client mode
II. Symmetric peer mode
Figure 1-3 Symmetric peer mode
In the symmetric peer mode, the local S3100 Ethernet switch serves as the
symmetric-active peer and sends clock synchronization request first, while the remote
server serves as the symmetric-passive peer automatically.
If both of the peers have reference clocks, the one with a smaller stratum number is
adopted.
