Command Center Spooling PC

Command Center's Spooler option in the Controller menu gives you
complete access to all features available for spooling and the job
queue. The Spooler window lists the job ID, its status, where the job
is stored, and its size in bytes.
PC Spooler

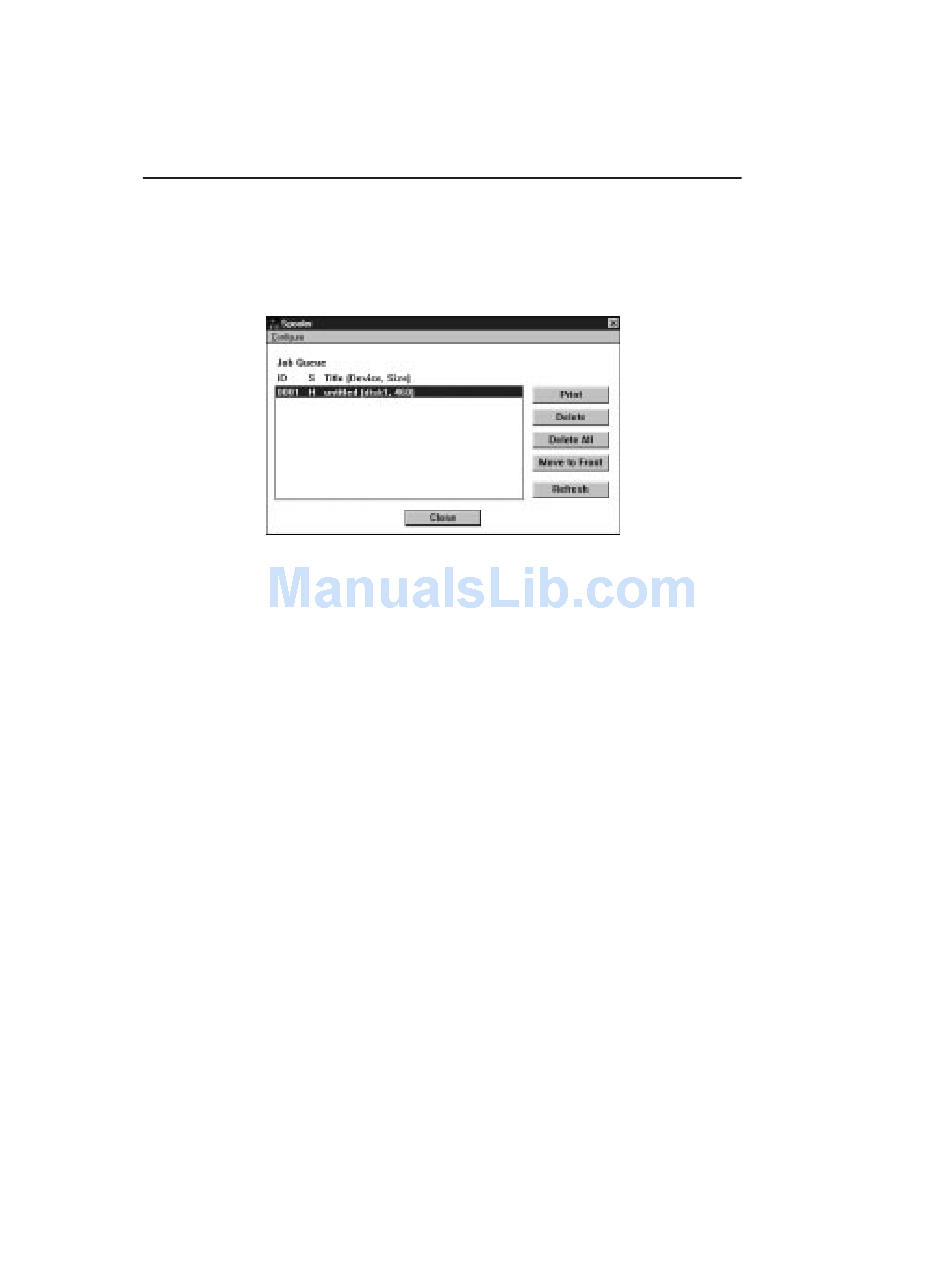

Fig. 6.33 The Spooler Window and Job Queue
The job status can be W (waiting to be processed), P (currently
processing), or H (already processed and being held). If the job is
stored on the controller's hard disk, "disk" and a number from 1 to 7
displays for the Device.
If the job is spooled to RAM disk (which allows you to send the job
faster from your computer), it disappears from the job queue when
the controller is turned off. RAM disk storage also limits the size of
the jobs.
Other Spooler options allow you to print a held job, delete a job or
all jobs from the queue, move a job to the top of the queue for
priority printing, and refresh the screen. Except when refreshing the
screen or deleting all jobs, you need to select a particular job in the
queue and then click the option for the appropriate action.
The Configure option in the Spooler dialog box allows you to select
a spool device and to what I/O interfaces to spool.
