Controlling the Outputs
Step 1 - Select an Output

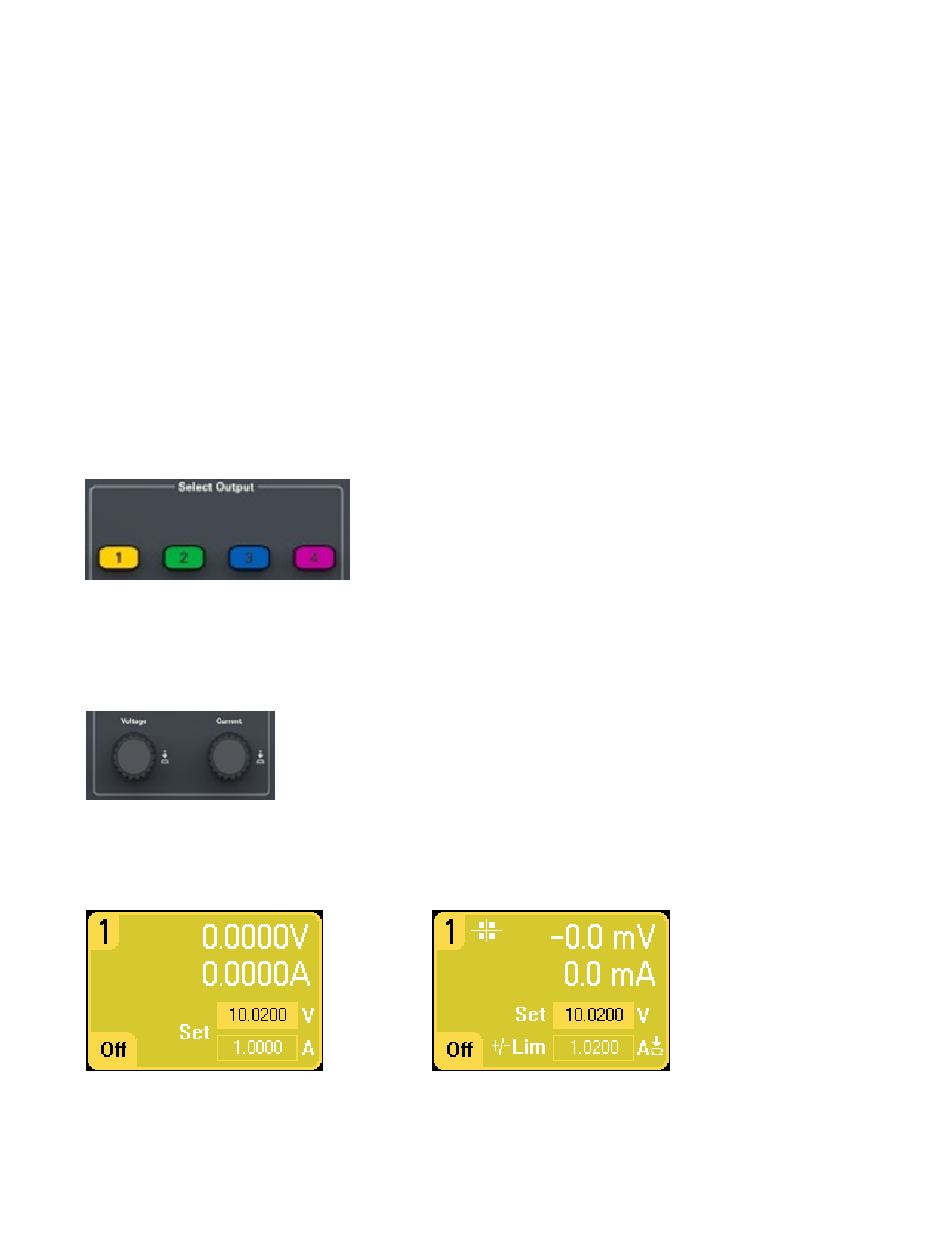

Press one of the Select Output keys to select an output to control. The lit key identifies the selected
output. All subsequent output-specific front panel commands are sent to the selected output.
Step 2 - Set the Output Voltage and Current
Turn the Voltage and Current knobs. The output voltage or current setting changes when they are
turned. These knobs are active in Meter View, Scope View, and Data Logger mode.
You can also enter the voltage and current values directly in the numeric entry fields (the Set fields) in
the Meter-view display. Use the navigation keys to select the field; use the numeric entry keys to enter
the value. The value becomes active when you press Enter.
Lastly, you can press the Settings key to access the Source Settings window. Use the navigation keys
to highlight the Voltage or Current fields. Then enter the voltage and current values with the numeric
80
Push the voltage and current knobs to access a pop-up dialog that lets you:
1. Lock/Unlock the knobs.
2. Select limit parameters or select limit tracking on Keysight N678xA SMU
and N6783A.
