User-Defined Parameters

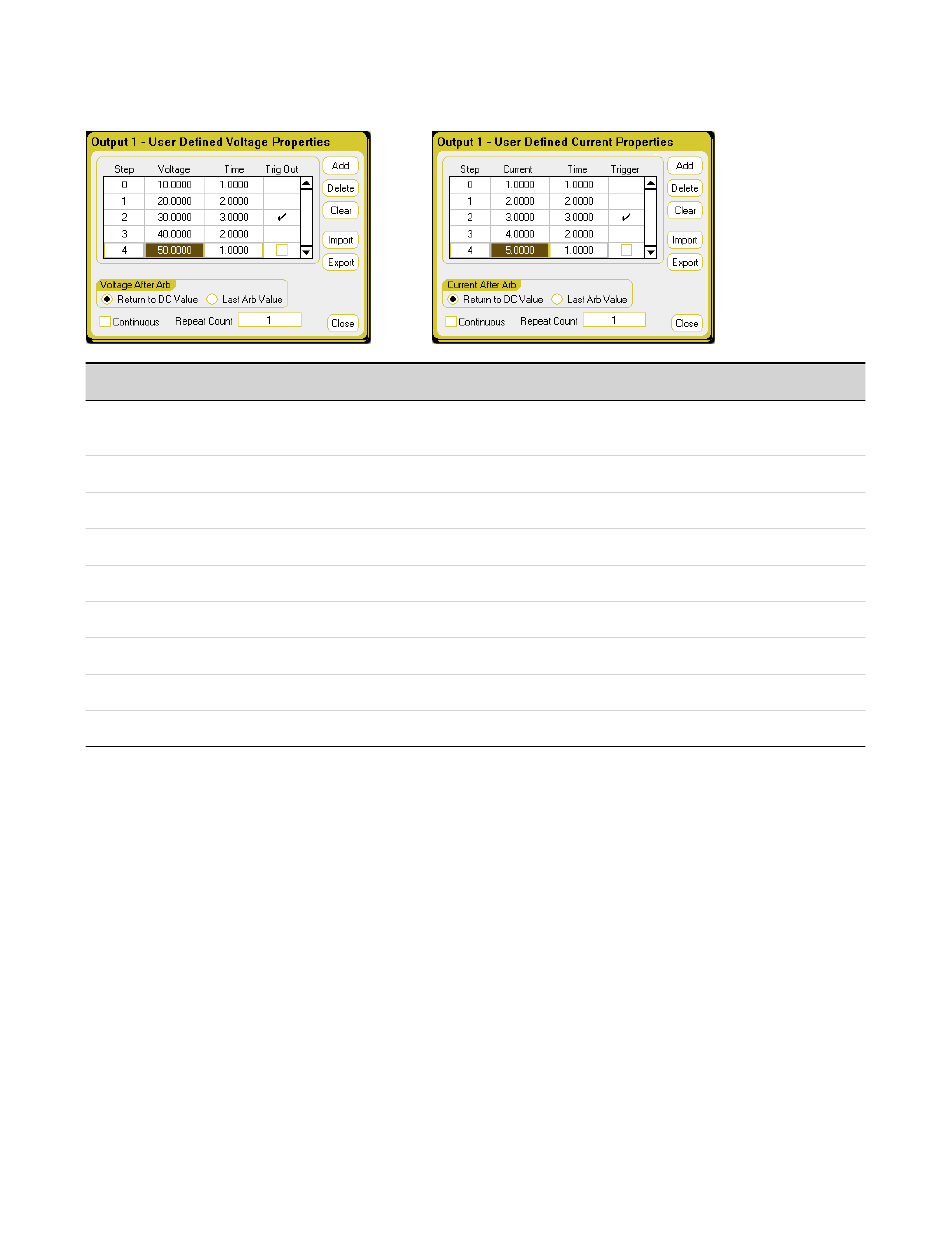

Parameter
Step <n>
Current or Voltage
Time
Trigger
Add
Delete
Clear
Import (.csv format)
Export (.csv format)
From the remote interface:
The current or voltage value of five steps:
ARB:CURR:UDEF:LEV 1,2,3,4,5,(@1)
ARB:VOLT:UDEF:LEV 1,2,3,4,5,(@1)
The time that the output stays at the steps:
ARB:CURR:UDEF:DWEL 1,2,3,2,1,(@1)
ARB:VOLT:UDEF:DWEL 1,2,3,2,1,(@1)
Generate an external trigger signal at the start of the step (the trigger is generated at the start of step
#3):
ARB:CURR:UDEF:BOST 0,0,1,0,0,(@1)
ARB:VOLT:UDEF:BOST 0,0,1,0,0,(@1)
118
Description
Each step of the waveform includes a voltage or current parameter, dwell time, and trigger option. The
total number of steps determines the length. Use the ▲ ▼ navigation keys to scroll through the steps.
The current or voltage value of the step.
The time that the output stays at the step.
Generate an external trigger signal at the start of the step when checked.
Inserts a step below the selected step; values are copied from the previous step.
Deletes the presently selected step.
Clears all steps.
Imports a current or voltage Arb list.
Exports a current or voltage Arb list.
