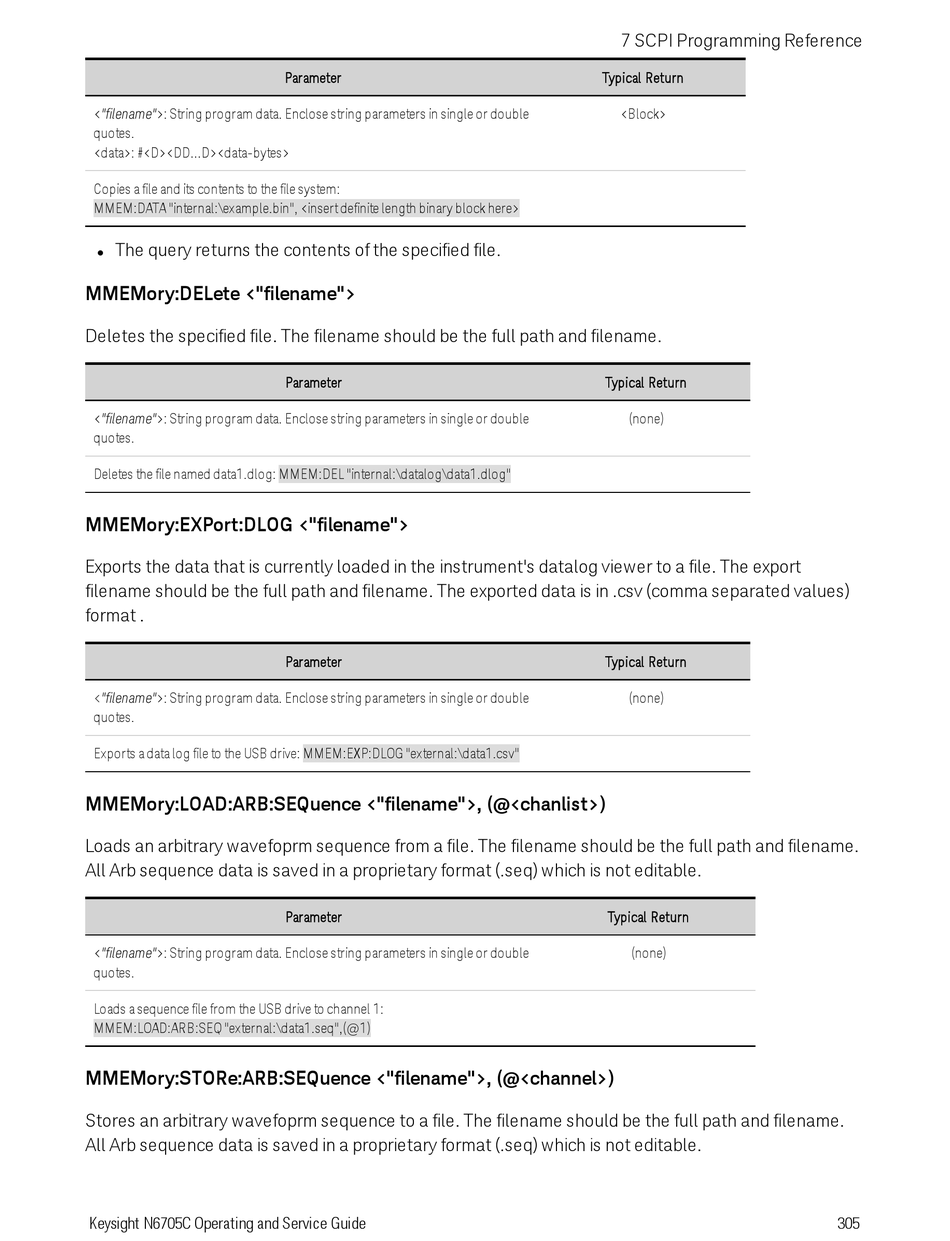

Keysight Technologies N6705C Operating And Service Manual page 305

<"filename">: String program data. Enclose string parameters in single or double
quotes.
<data>: #<D><DD...D><data-bytes>
Copies a file and its contents to the file system:
MMEM:DATA "internal:\example.bin", <insert definite length binary block here>
The query returns the contents of the specified file.
l
MMEMory:DELete <"filename">
Deletes the specified file. The filename should be the full path and filename.
<"filename">: String program data. Enclose string parameters in single or double
quotes.
Deletes the file named data1.dlog: MMEM:DEL "internal:\datalog\data1.dlog"
MMEMory:EXPort:DLOG <"filename">
Exports the data that is currently loaded in the instrument's datalog viewer to a file. The export
filename should be the full path and filename. The exported data is in .csv (comma separated values)
format .
<"filename">: String program data. Enclose string parameters in single or double
quotes.
Exports a data log file to the USB drive: MMEM:EXP:DLOG "external:\data1.csv"
MMEMory:LOAD:ARB:SEQuence <"filename">, (@<chanlist>)
Loads an arbitrary wavefoprm sequence from a file. The filename should be the full path and filename.
All Arb sequence data is saved in a proprietary format (.seq) which is not editable.
<"filename">: String program data. Enclose string parameters in single or double
quotes.
Loads a sequence file from the USB drive to channel 1:
MMEM:LOAD:ARB:SEQ "external:\data1.seq",(@1)
MMEMory:STORe:ARB:SEQuence <"filename">, (@<channel>)
Stores an arbitrary wavefoprm sequence to a file. The filename should be the full path and filename.
All Arb sequence data is saved in a proprietary format (.seq) which is not editable.
Keysight N6705C Operating and Service Guide
Parameter
Parameter
Parameter
Parameter
7 SCPI Programming Reference
Typical Return
<Block>
Typical Return
(none)
Typical Return
(none)
Typical Return
(none)
305
