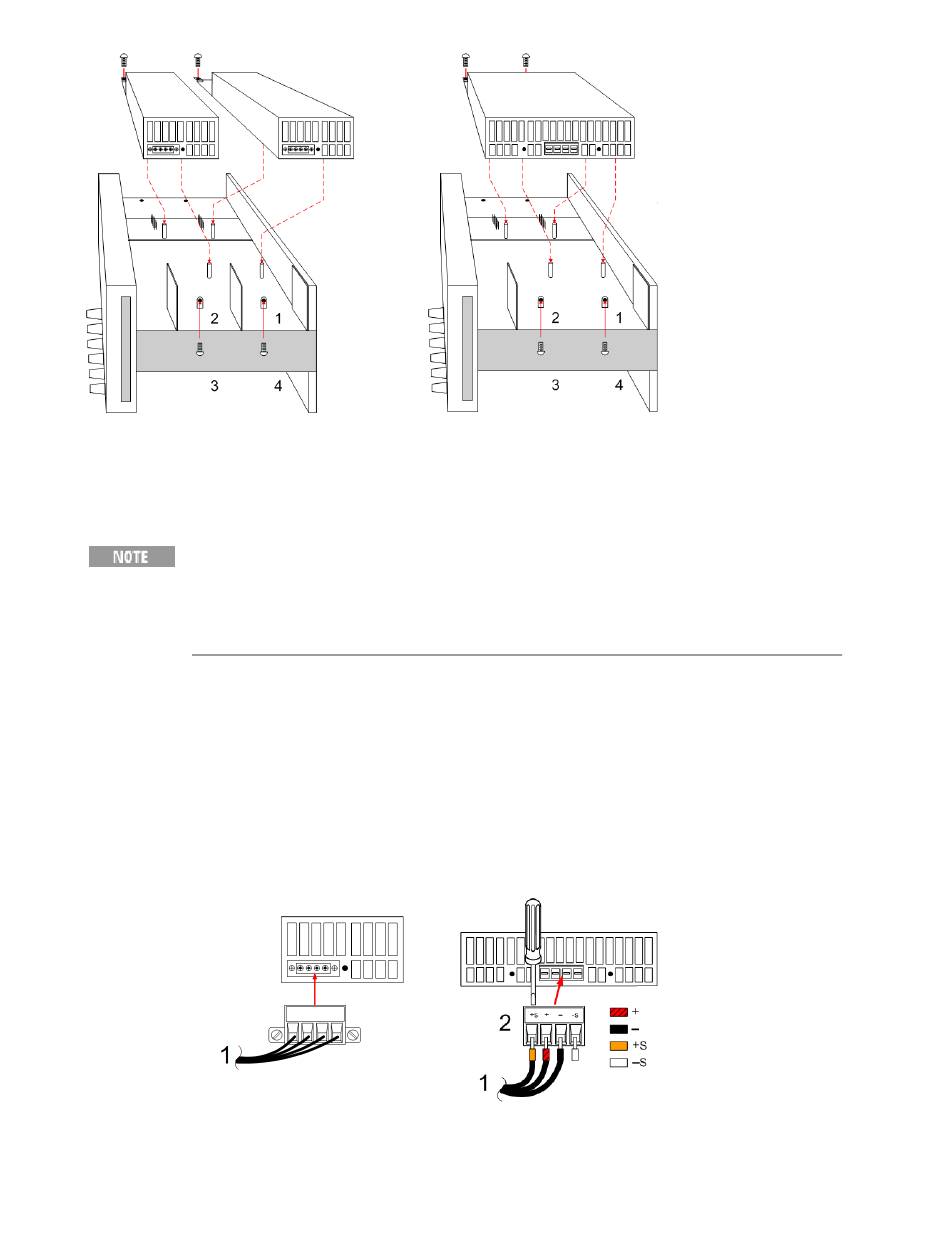

The location of the power modules inside the mainframe determines their front panel output and
programming channel assignments. For example, modules installed in channel 1 will be connected to
the wire harness for output 1. Modules installed in channel 4 will be connected to the wire harness for
output 4.
When installing a double-wide power module, you must first remove the center
deflector. Use a T10 Torx to remove the top deflector; use a 5.5 mm hex to remove
the bottom deflector. Install the deflector in the storage location on the opposite
side. You can only connect the double-wide power module to output 1 or output 3.
Step 3. Connect the front panel wire harness.
For power modules that use 12 A output connectors – Simply push the 12 A connector plug into the
power module. Tighten the locking screws on the connector.
For power modules that use 20 A output connectors – Remove the 12 A connector plug from the
harness and install the 20 A connector plug provided with the power module. Observe the output color
code. Tighten all connector screws. Install the connector in the module.
For power modules that use 50 A output connectors – see
1. To front panel
binding post
2. 20 A connector
Keysight N6705C Operating and Service Guide
High Current Output Connections.
