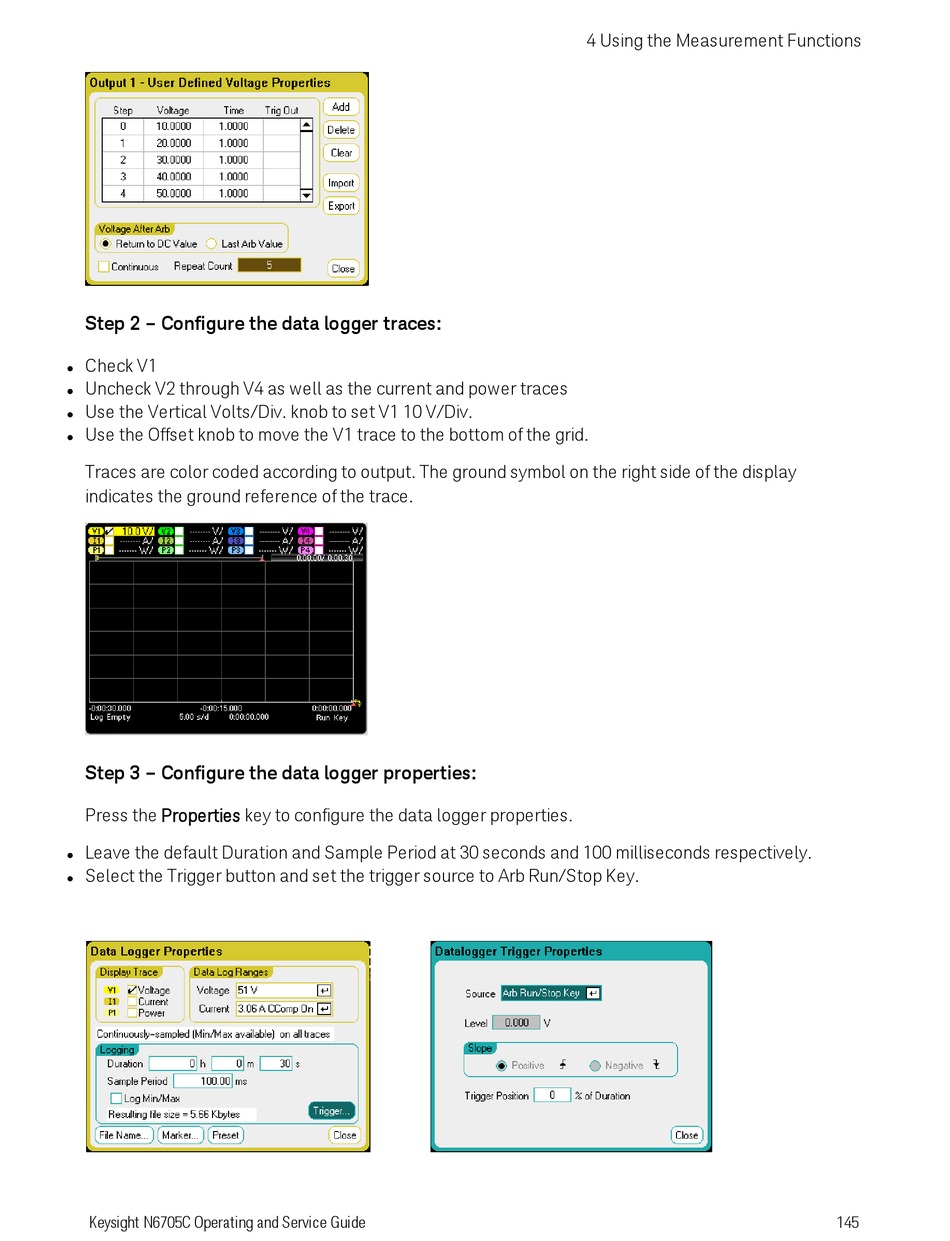

Step 2 – Configure the data logger traces:
Check V1
l
Uncheck V2 through V4 as well as the current and power traces
l
Use the Vertical Volts/Div. knob to set V1 10 V/Div.
l
Use the Offset knob to move the V1 trace to the bottom of the grid.
l
Traces are color coded according to output. The ground symbol on the right side of the display
indicates the ground reference of the trace.
Step 3 – Configure the data logger properties:
Press the Properties key to configure the data logger properties.
Leave the default Duration and Sample Period at 30 seconds and 100 milliseconds respectively.
l
Select the Trigger button and set the trigger source to Arb Run/Stop Key.
l
