3 Using the Source Functions
Advancedbutton – Advanced protection properties are configured in the Advanced Protection window.
Navigate to and select Advanced.
Models N678xA SMU also have a back-up local OVP function. Refer to Local OVP for a description of
the feature. Additionally, for model N6784A, you can program a negative over-voltage value. Enter the
value in the -OVP field.
From the remote interface:
To program the OVP level for outputs 1 and 2 to 10 V:
VOLT:PROT 10,(@1,2)
To enable OCP for outputs 1 and 2:
CURR:PROT:STAT 1,(@1,2)
To specify a 10 millisecond delay for the OCP:
CURR:PROT:DEL.01,(@1,2)
To start the delay timer by ANY output transition into CC mode:
CURR:PROT:DEL:STAR CCTR, (@1,2)
To start the timer by a settings change in voltage current or output:
CURR:PROT:DEL:STAR SCH, (@1,2)
To enable output protection coupling:
OUTP:PROT:COUP ON
To clear an output protection fault on output 1:
OUTP:PROT:CLE (@1)

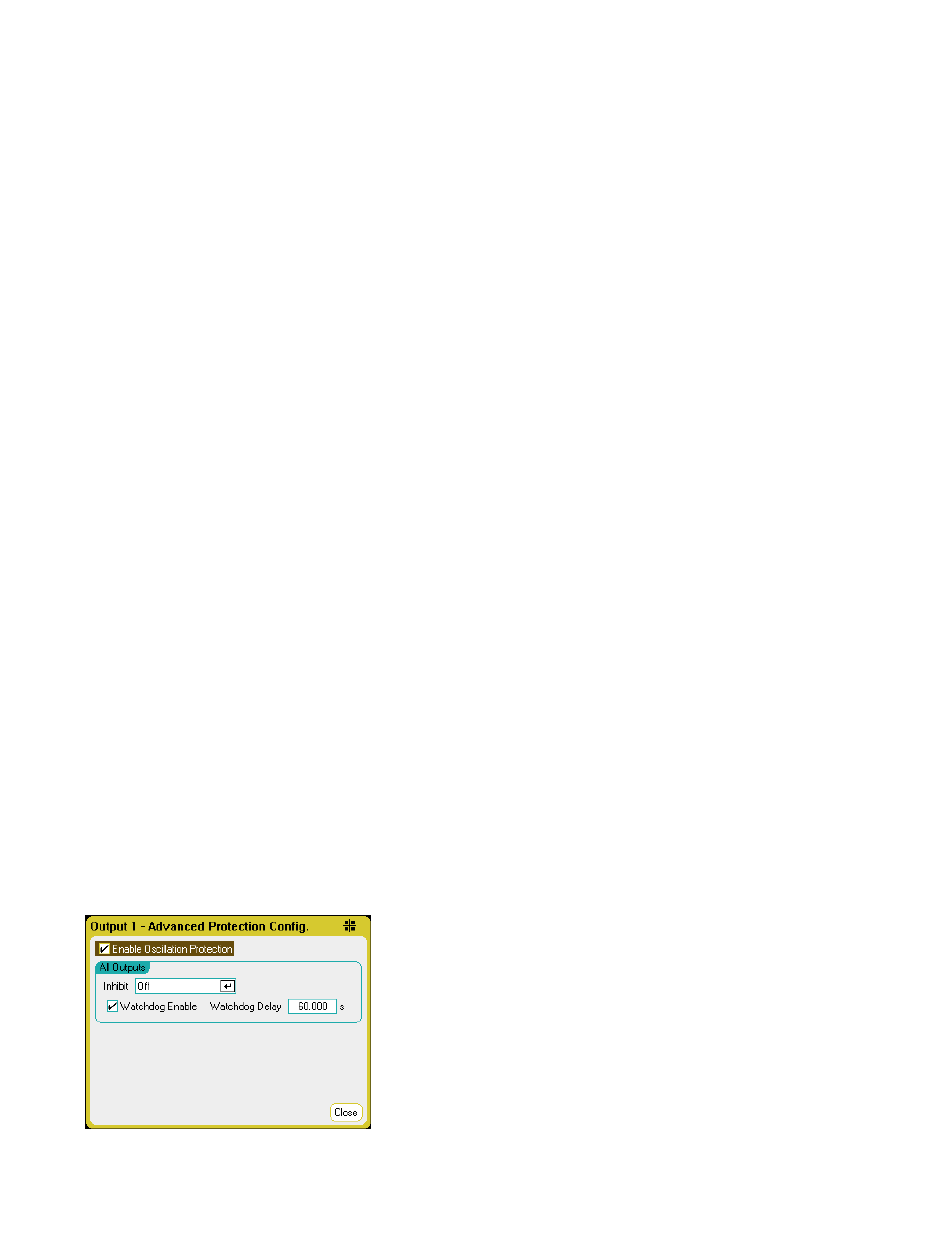

Advanced Protection

Press the Settings key to access the Source Settings window. Navigate to and select Protection.
Navigate to and select Advanced.
Keysight N6705C Operating and Service Guide 123
