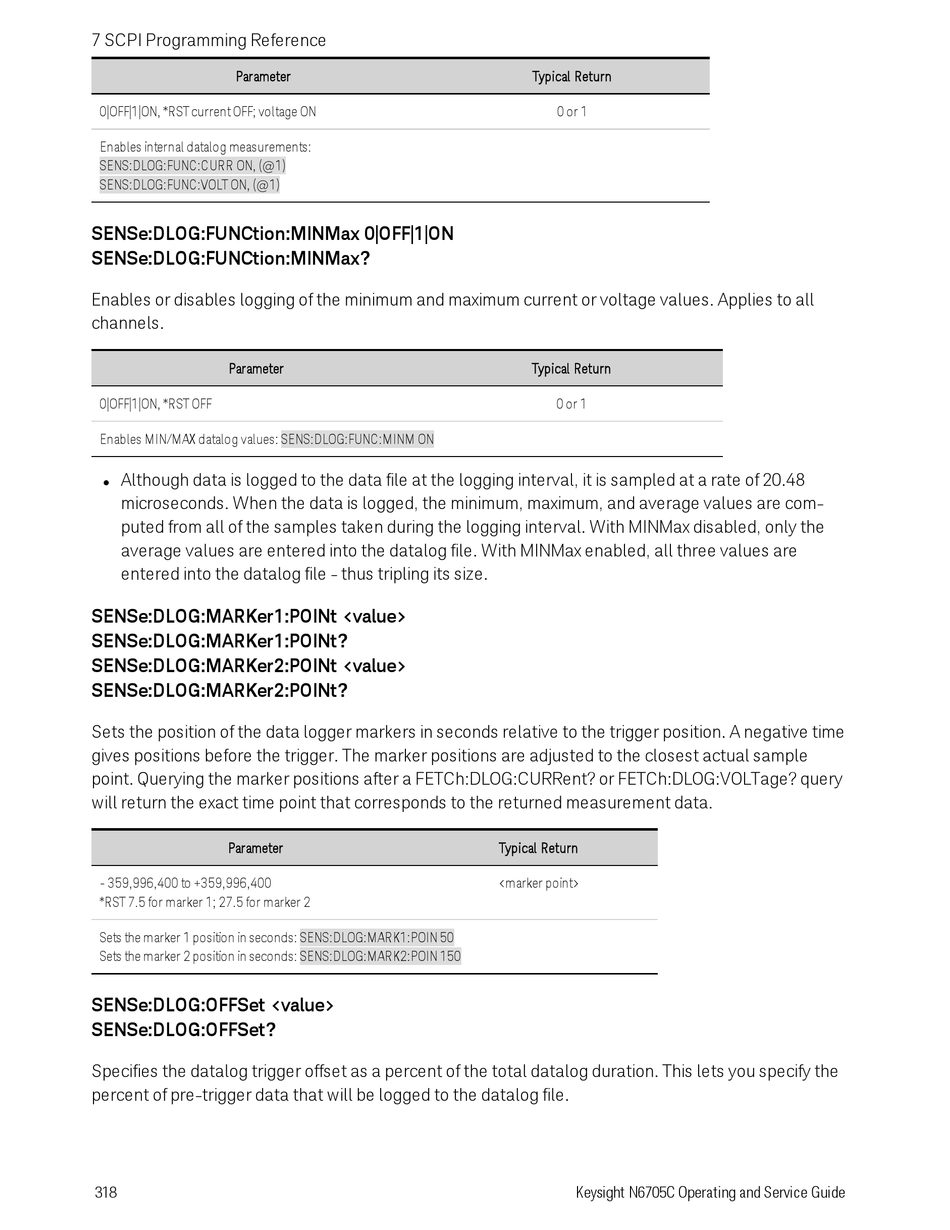

Keysight Technologies N6705C Operating And Service Manual page 318

7 SCPI Programming Reference
Parameter
0|OFF|1|ON, *RST current OFF; voltage ON
Enables internal datalog measurements:
SENS:DLOG:FUNC:CURR ON, (@1)
SENS:DLOG:FUNC:VOLT ON, (@1)
SENSe:DLOG:FUNCtion:MINMax 0|OFF|1|ON
SENSe:DLOG:FUNCtion:MINMax?
Enables or disables logging of the minimum and maximum current or voltage values. Applies to all
channels.
Parameter
0|OFF|1|ON, *RST OFF
Enables MIN/MAX datalog values: SENS:DLOG:FUNC:MINM ON
Although data is logged to the data file at the logging interval, it is sampled at a rate of 20.48
l
microseconds. When the data is logged, the minimum, maximum, and average values are com-
puted from all of the samples taken during the logging interval. With MINMax disabled, only the
average values are entered into the datalog file. With MINMax enabled, all three values are
entered into the datalog file - thus tripling its size.
SENSe:DLOG:MARKer1:POINt <value>
SENSe:DLOG:MARKer1:POINt?
SENSe:DLOG:MARKer2:POINt <value>
SENSe:DLOG:MARKer2:POINt?
Sets the position of the data logger markers in seconds relative to the trigger position. A negative time
gives positions before the trigger. The marker positions are adjusted to the closest actual sample
point. Querying the marker positions after a FETCh:DLOG:CURRent? or FETCh:DLOG:VOLTage? query
will return the exact time point that corresponds to the returned measurement data.
Parameter
- 359,996,400 to +359,996,400
*RST 7.5 for marker 1; 27.5 for marker 2
Sets the marker 1 position in seconds: SENS:DLOG:MARK1:POIN 50
Sets the marker 2 position in seconds: SENS:DLOG:MARK2:POIN 150
SENSe:DLOG:OFFSet <value>
SENSe:DLOG:OFFSet?
Specifies the datalog trigger offset as a percent of the total datalog duration. This lets you specify the
percent of pre-trigger data that will be logged to the datalog file.
318
Typical Return
0 or 1
Typical Return
0 or 1
Typical Return
<marker point>
