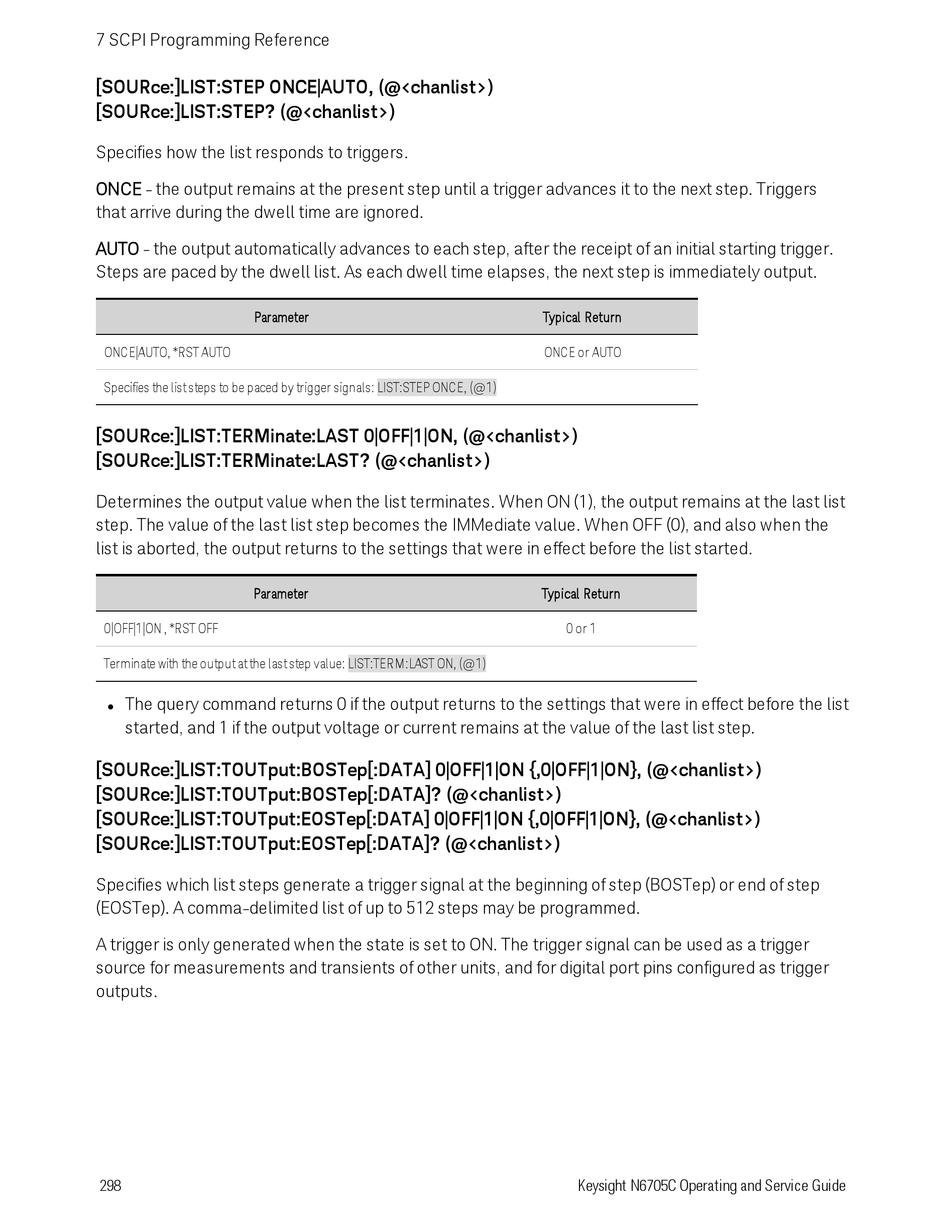

Keysight Technologies N6705C Operating And Service Manual page 298

7 SCPI Programming Reference
[SOURce:]LIST:STEP ONCE|AUTO, (@<chanlist>)
[SOURce:]LIST:STEP? (@<chanlist>)
Specifies how the list responds to triggers.
ONCE - the output remains at the present step until a trigger advances it to the next step. Triggers
that arrive during the dwell time are ignored.
AUTO - the output automatically advances to each step, after the receipt of an initial starting trigger.
Steps are paced by the dwell list. As each dwell time elapses, the next step is immediately output.
Parameter
ONCE|AUTO, *RST AUTO
Specifies the list steps to be paced by trigger signals: LIST:STEP ONCE, (@1)
[SOURce:]LIST:TERMinate:LAST 0|OFF|1|ON, (@<chanlist>)
[SOURce:]LIST:TERMinate:LAST? (@<chanlist>)
Determines the output value when the list terminates. When ON (1), the output remains at the last list
step. The value of the last list step becomes the IMMediate value. When OFF (0), and also when the
list is aborted, the output returns to the settings that were in effect before the list started.
Parameter
0|OFF|1|ON , *RST OFF
Terminate with the output at the last step value: LIST:TERM:LAST ON, (@1)
The query command returns 0 if the output returns to the settings that were in effect before the list
l
started, and 1 if the output voltage or current remains at the value of the last list step.
[SOURce:]LIST:TOUTput:BOSTep[:DATA] 0|OFF|1|ON {,0|OFF|1|ON}, (@<chanlist>)
[SOURce:]LIST:TOUTput:BOSTep[:DATA]? (@<chanlist>)
[SOURce:]LIST:TOUTput:EOSTep[:DATA] 0|OFF|1|ON {,0|OFF|1|ON}, (@<chanlist>)
[SOURce:]LIST:TOUTput:EOSTep[:DATA]? (@<chanlist>)
Specifies which list steps generate a trigger signal at the beginning of step (BOSTep) or end of step
(EOSTep). A comma-delimited list of up to 512 steps may be programmed.
A trigger is only generated when the state is set to ON. The trigger signal can be used as a trigger
source for measurements and transients of other units, and for digital port pins configured as trigger
outputs.
298
Typical Return
ONCE or AUTO
Typical Return
0 or 1
