1 Quick Reference
Characteristic
AC Input
Input ratings:
Input range:
Power Consumption:
Power Factor (Note 1):
Fuse:
Net Weight
N6705C with 4 modules:
Single-wide module (typical):
Dimensions:
Note 1: Under full load at 400 Hz, power factor drops from 0.99 @ 120 VAC to as low as 0.76 @ 265 VAC. Power factor degrades further under
no load conditions.

Dimension Diagrams

46
Keysight N6705C
~ 100 VAC – 240 VAC; 50/60/400Hz
86–264 VAC; 47–63Hz; 380–420 Hz
1440 VA
0.99 @ nominal input and rated power
Internal fuse - not customer accessible
16 kg / 35 lbs.
1.23 kg / 2.71 lbs

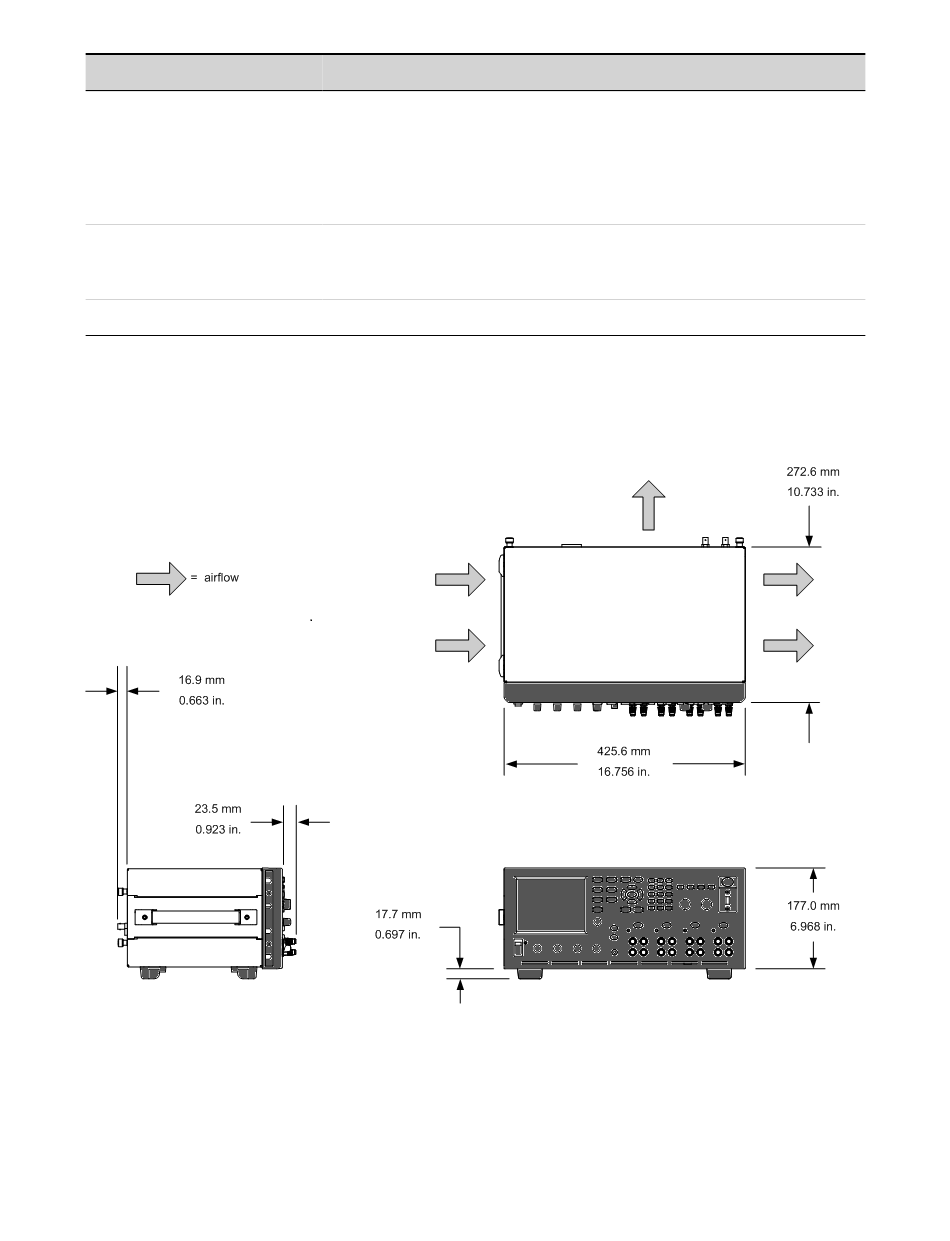

Refer to the dimension diagrams in the following section.
