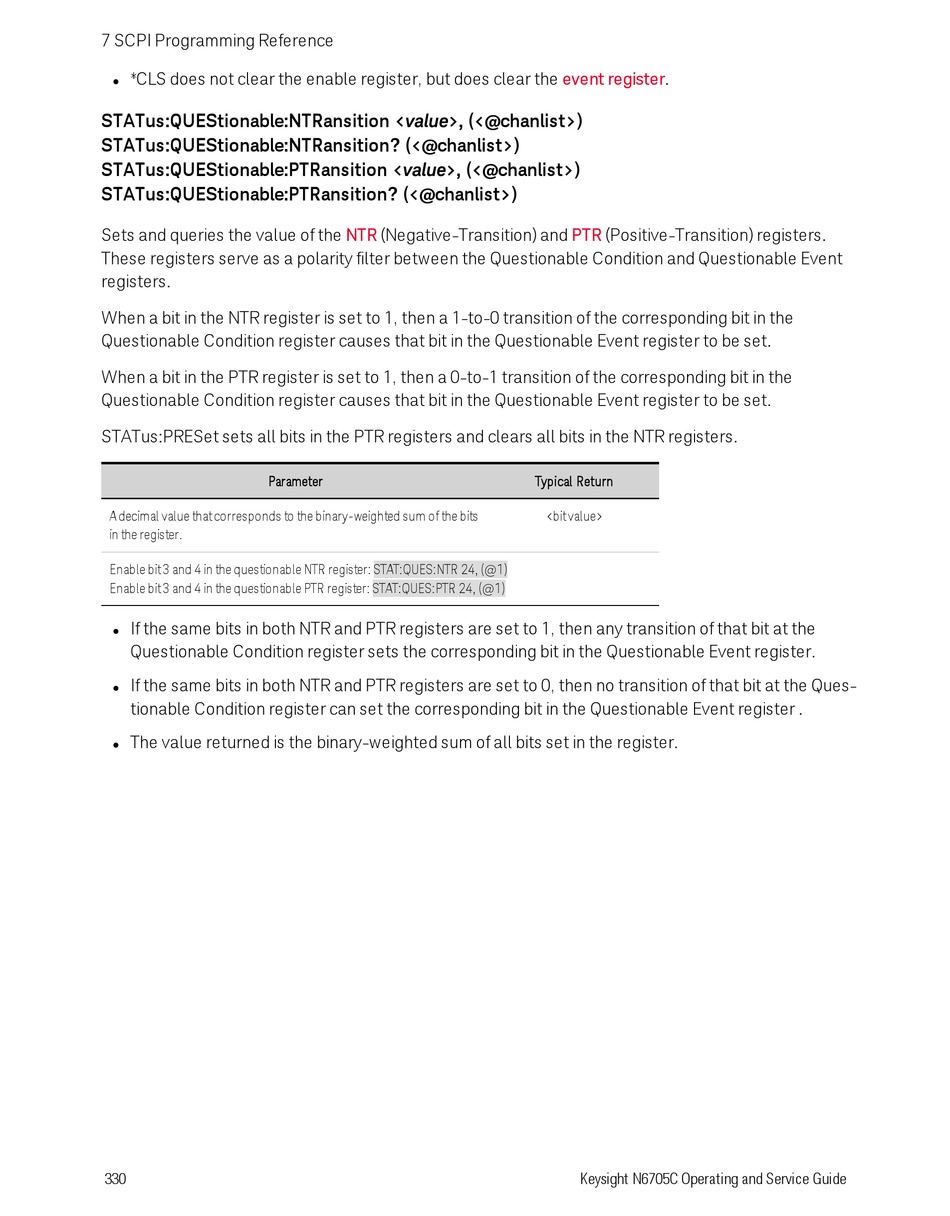

7 SCPI Programming Reference
*CLS does not clear the enable register, but does clear the
l
STATus:QUEStionable:NTRansition <value>, (<@chanlist>)
STATus:QUEStionable:NTRansition? (<@chanlist>)
STATus:QUEStionable:PTRansition <value>, (<@chanlist>)
STATus:QUEStionable:PTRansition? (<@chanlist>)
Sets and queries the value of the
These registers serve as a polarity filter between the Questionable Condition and Questionable Event
registers.
When a bit in the NTR register is set to 1, then a 1-to-0 transition of the corresponding bit in the
Questionable Condition register causes that bit in the Questionable Event register to be set.
When a bit in the PTR register is set to 1, then a 0-to-1 transition of the corresponding bit in the
Questionable Condition register causes that bit in the Questionable Event register to be set.
STATus:PRESet sets all bits in the PTR registers and clears all bits in the NTR registers.
Parameter
A decimal value that corresponds to the binary-weighted sum of the bits
in the register.
Enable bit 3 and 4 in the questionable NTR register: STAT:QUES:NTR 24, (@1)
Enable bit 3 and 4 in the questionable PTR register: STAT:QUES:PTR 24, (@1)
If the same bits in both NTR and PTR registers are set to 1, then any transition of that bit at the
l
Questionable Condition register sets the corresponding bit in the Questionable Event register.
If the same bits in both NTR and PTR registers are set to 0, then no transition of that bit at the Ques-
l
tionable Condition register can set the corresponding bit in the Questionable Event register .
The value returned is the binary-weighted sum of all bits set in the register.
l
330
NTR (Negative-Transition) and
event register.
PTR (Positive-Transition) registers.
Typical Return
<bit value>
