3 Using the Source Functions
Step 5 – Preview and run the Arb:

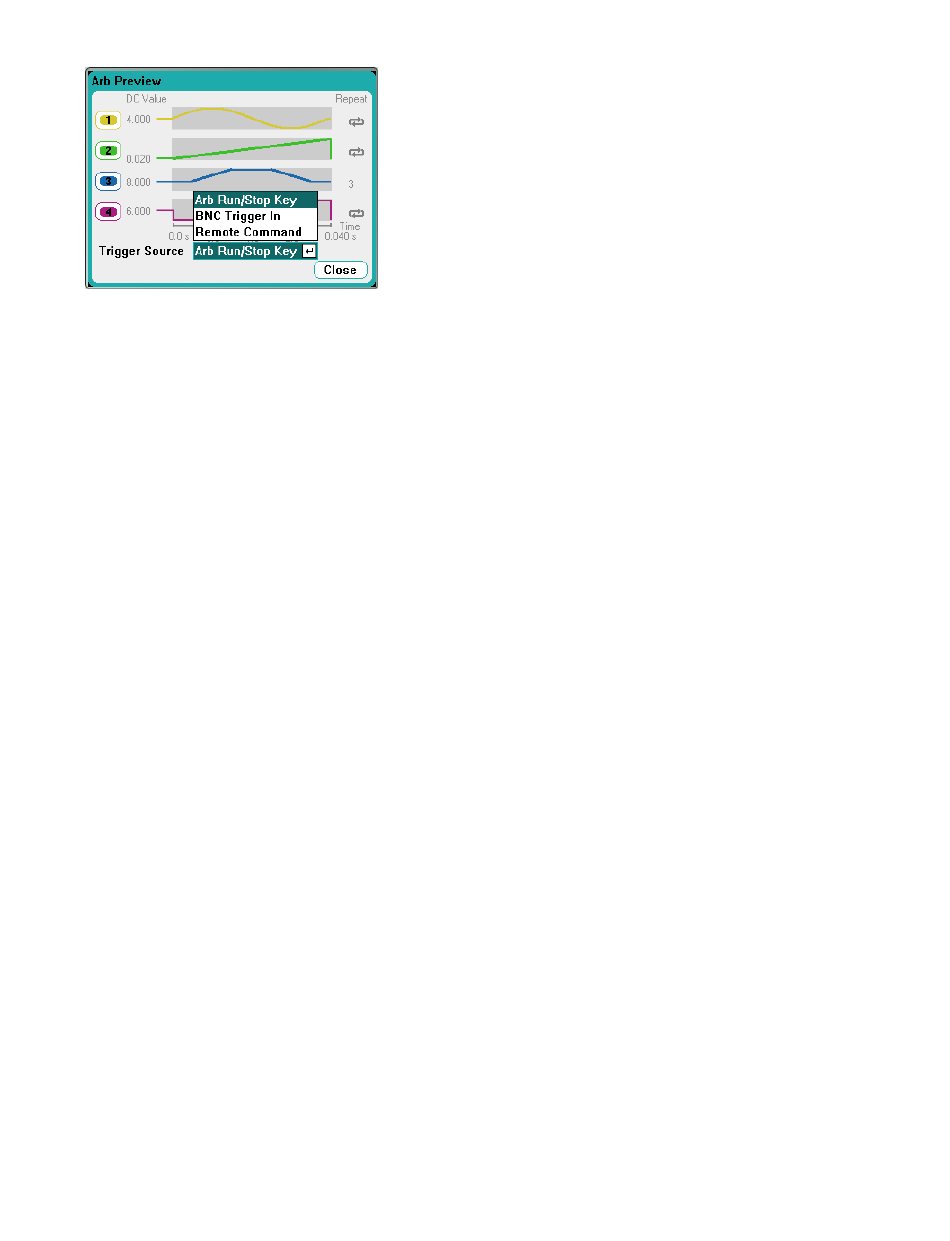

The Arb Preview dialog shown above provides a preview of the User-defined waveform that will be run
on output 1.
Select Meter View or Scope View to display the Arb. Press the Output 1 On key to enable the output.
Press the Arb Run/Stop key to run the Arb.
From the remote interface:
The following commands select, program, and trigger a User-defined voltage waveform of five steps
on output 1:
ARB:FUNC:TYPE VOLT,(@1)
ARB:FUNC:SHAP UDEF,(@1)
ARB:VOLT:UDEF:LEV 10,20,30,40,50,(@1)
ARB:VOLT:UDEF:DWEL 1,2,3,2,1,(@1)
ARB:VOLT:UDEF:BOST 0,0,1,0,0,(@1)
ARB:TERM:LAST OFF,(@1)
To set up the transient trigger system and trigger the Arb:
VOLT:MODE ARB,(@1)
TRIG:ARB:SOUR BUS
OUTP ON,(@1)
INIT:TRAN (@1)
*TRG

Configuring Constant-Dwell Arbs

Constant-Dwell (CD)Arbs are a unique type of Arb that have some useful differences from other types.
CD Arbs are not limited to 511 points, they can contain up to 65,535 points. Unlike other Arbs, they do
not have separate dwell values associated with each point; a single dwell value applies to every point
in the CD Arb. Also, the minimum dwell time of a CD Arb is 10 .24 microseconds, instead of the 1
microsecond resolution of the other Arbs.
