Front Panel At A Glance - Keysight Technologies N6705C Operating And Service Manual

1 Quick Reference
System features
Choice of three interfaces - GPIB (IEEE-488), LAN, and USB remote programming interfaces are
l
built in.
Built-in Web server - A built-in Web server lets you control the instrument directly from an inter-
l
net browser on your computer.
SCPI language - The instrument is compatible with the Standard Commands for Programmable
l
Instruments (SCPI).
Savable instrument data - A file management system saves display bitmaps, instrument states,
l
scope results, arbitrary waveforms, and data log results.
Memory port - Front USB port allows files to be saved to an external USB memory device.
l
Trigger connectors - Rear panel trigger in/out BNC connectors.
l
Low acoustic noise - Low acoustic noise for quiet bench operation.
l
Universal AC input - Mainframes have universal input voltage capability with active power factor
l
correction.

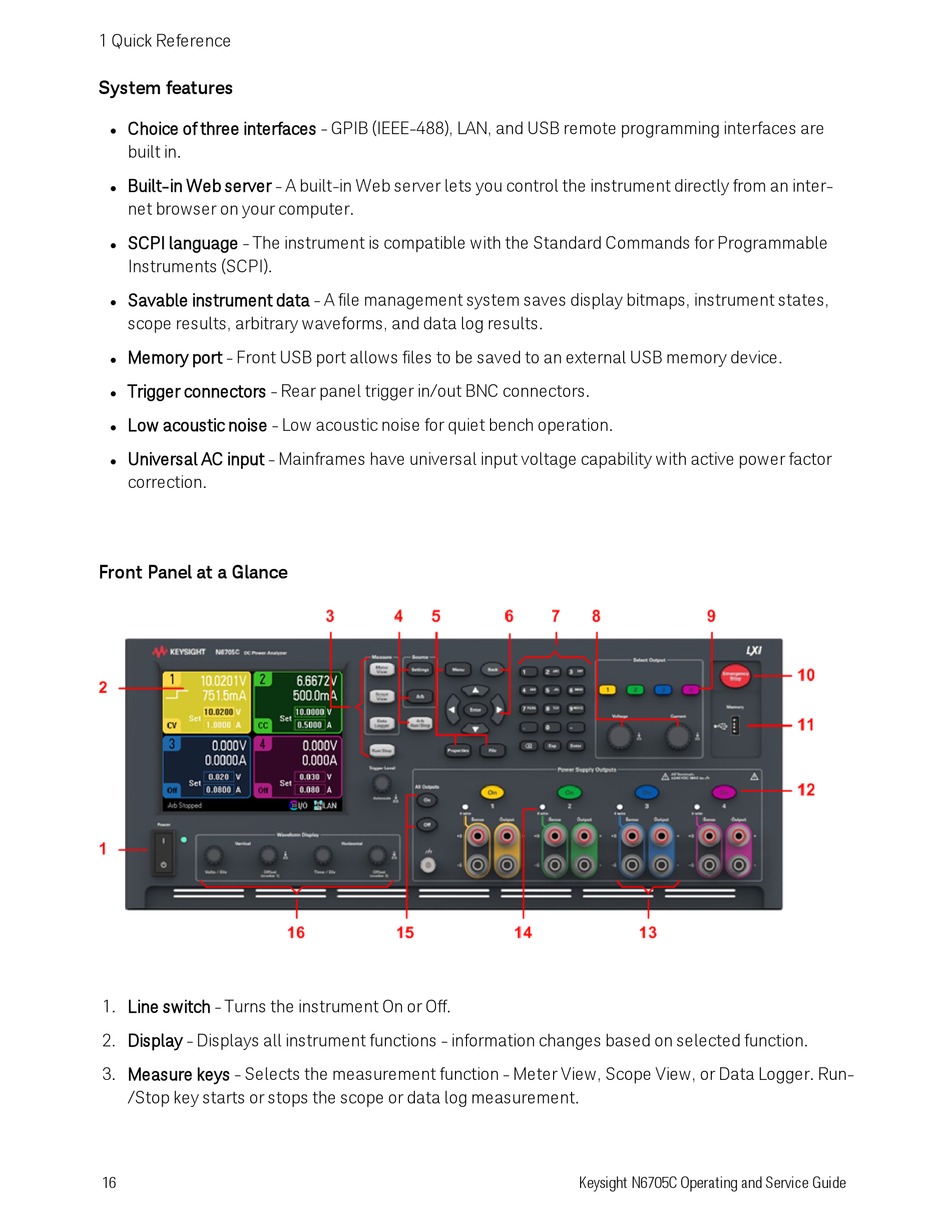

Front Panel at a Glance

1. Line switch - Turns the instrument On or Off.
2. Display - Displays all instrument functions - information changes based on selected function.
3. Measure keys - Selects the measurement function - Meter View, Scope View, or Data Logger. Run-
/Stop key starts or stops the scope or data log measurement.
