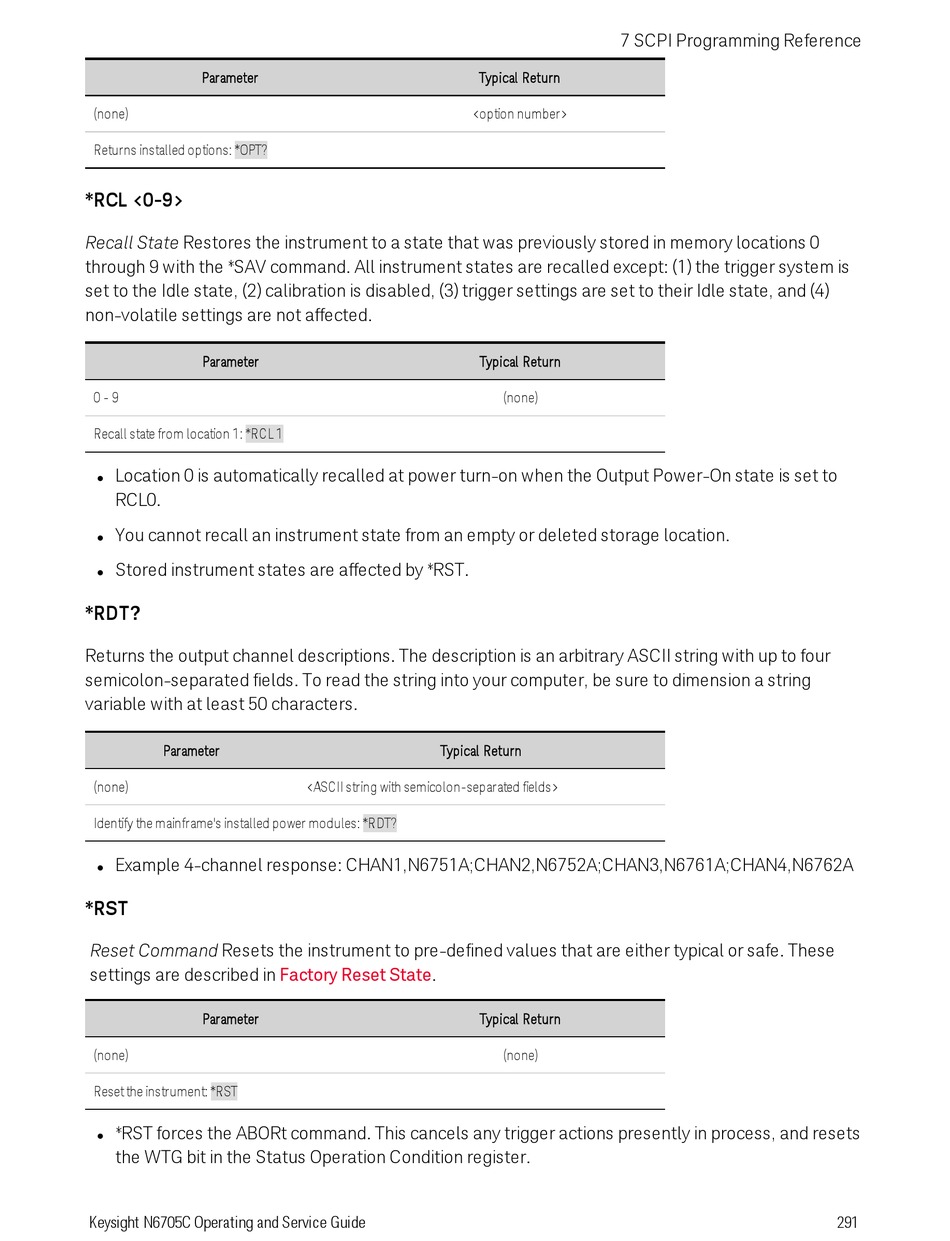

Keysight Technologies N6705C Operating And Service Manual page 291

Parameter
(none)
Returns installed options: *OPT?
*RCL <0-9>
Recall State Restores the instrument to a state that was previously stored in memory locations 0
through 9 with the *SAV command. All instrument states are recalled except: (1) the trigger system is
set to the Idle state, (2) calibration is disabled, (3) trigger settings are set to their Idle state, and (4)
non-volatile settings are not affected.
Parameter
0 - 9
Recall state from location 1: *RCL 1
Location 0 is automatically recalled at power turn-on when the Output Power-On state is set to
l
RCL0.
You cannot recall an instrument state from an empty or deleted storage location.
l
Stored instrument states are affected by *RST.
l
*RDT?
Returns the output channel descriptions. The description is an arbitrary ASCII string with up to four
semicolon-separated fields. To read the string into your computer, be sure to dimension a string
variable with at least 50 characters.
Parameter
(none)
Identify the mainframe's installed power modules: *RDT?
Example 4-channel response: CHAN1,N6751A;CHAN2,N6752A;CHAN3,N6761A;CHAN4,N6762A
l
*RST
Reset Command Resets the instrument to pre-defined values that are either typical or safe. These
settings are described in
Parameter
(none)
Reset the instrument: *RST
*RST forces the ABORt command. This cancels any trigger actions presently in process, and resets
l
the WTG bit in the Status Operation Condition register.
Keysight N6705C Operating and Service Guide
Typical Return
<ASCII string with semicolon-separated fields>
Factory Reset State.
7 SCPI Programming Reference
Typical Return
<option number>
Typical Return
(none)
Typical Return
(none)
