Autoranging - Keysight Technologies N6705C Operating And Service Manual

6 Advanced Source, Measurement, and Control

Autoranging

Autoranging only applies to Keysight N675xA and N676xA power modules.

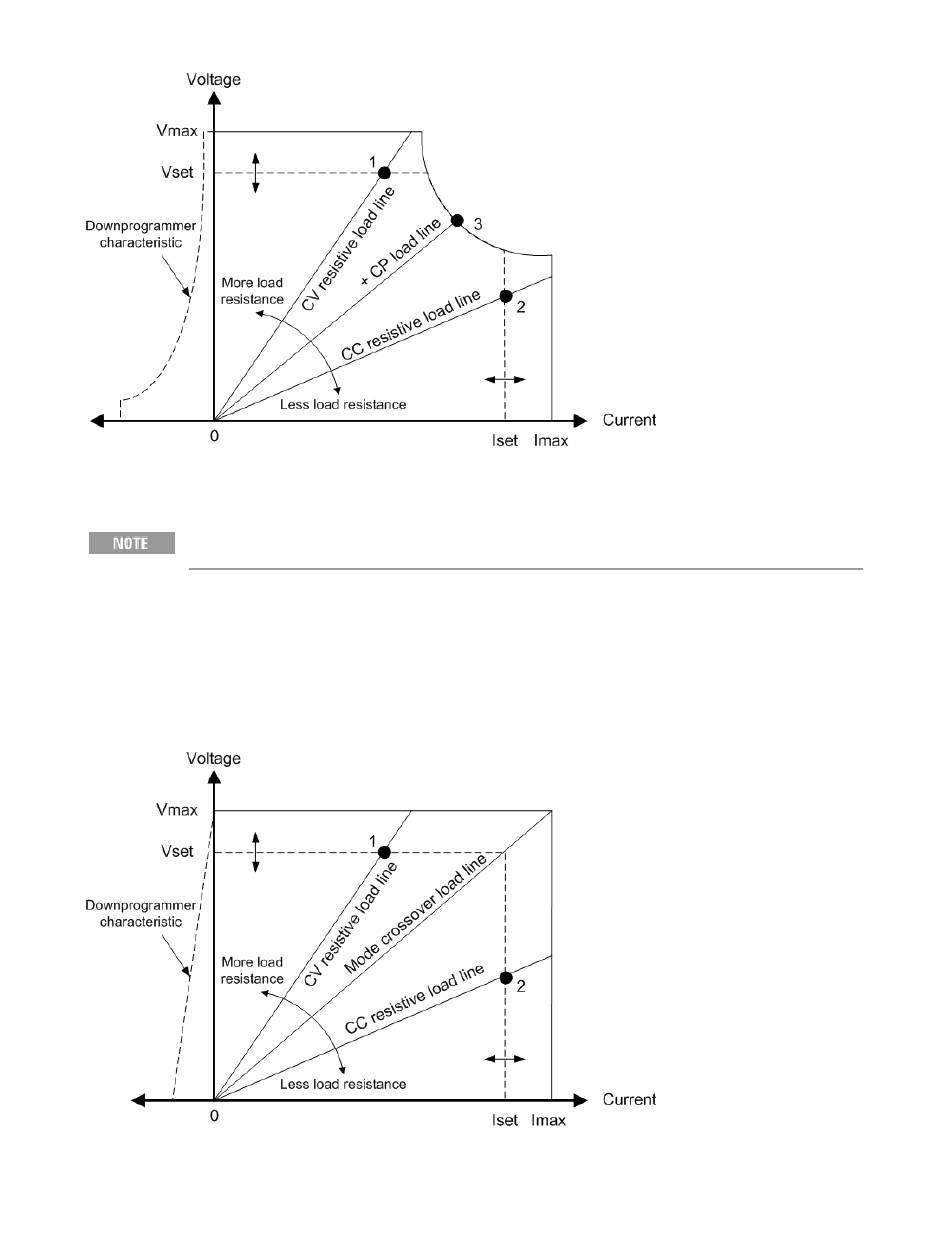

The following figure illustrates the autoranging output characteristic of the Keysight N675xA and
N676xA power modules. Point 3 shows a situation in which the voltage and current settings are such
that the operating locus is limited by the maximum output power boundary of the output. Depending
on the power module, this may be greater than the output power rating of the module. In this
situation, the output is not guaranteed to meet its operating specifications because it is operating in an
area that is outside its specified power rating.
