3 Using the Source Functions

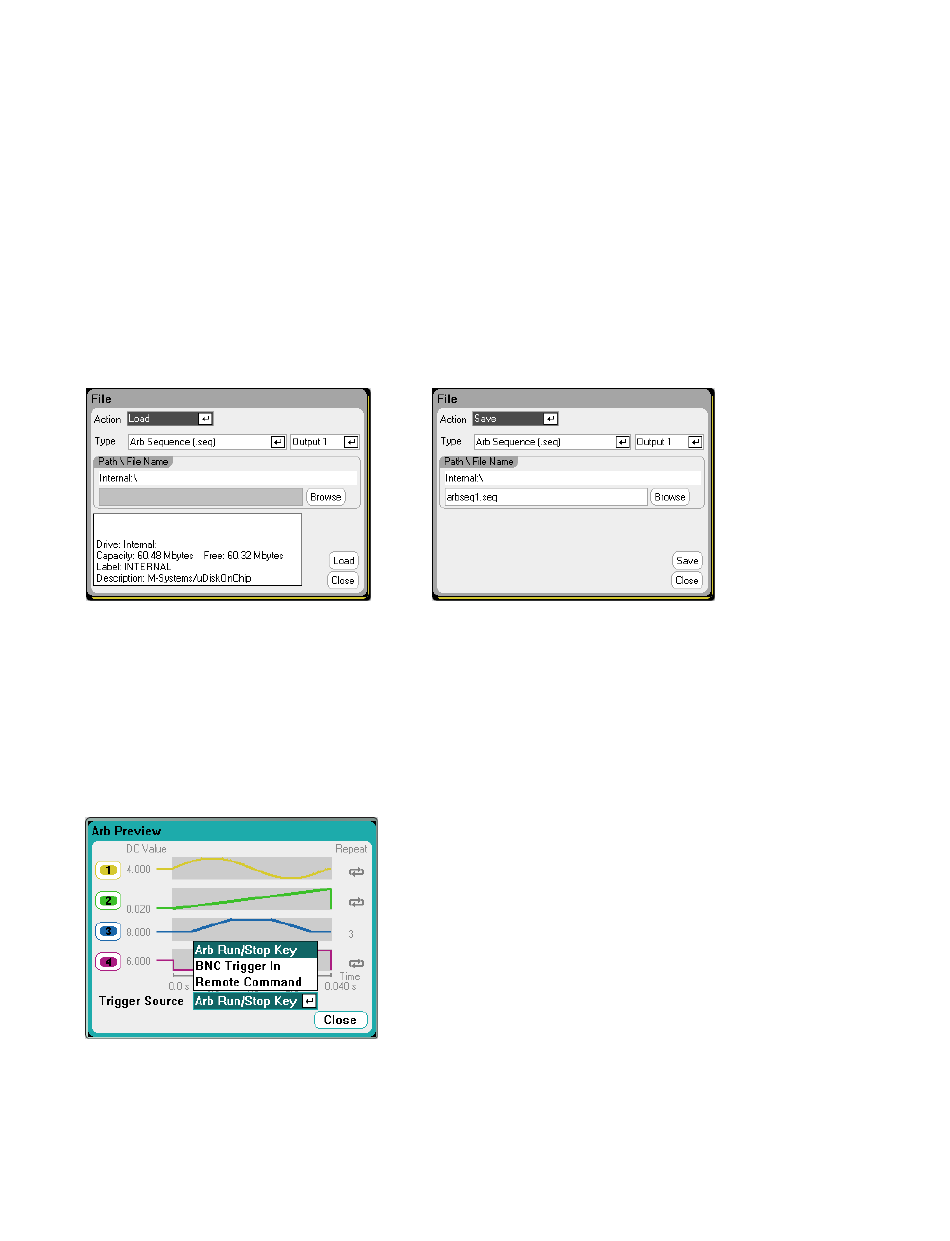

Step 3 –Saving and Loading an Arb Sequence
Arb sequences are saved and recalled in instrument state files, but you can also save and load them in
files that are separate from other instrument settings using the Save and Load buttons.
Select the Sequence file type .seq. When loading a sequence, specify the output on which the
Sequence will run. When saving a Sequence, specify the output from which you want to save the
Sequence.
Under Path/Filename, click Browse and specify the location where the import file is located or where
the export file will be placed. Internal:\ specifies the instrument's internal memory. External:\ specifies
the Memory port on the front panel.
Select Load to load the file. Select Save to save the file.
Step 4 – Select the trigger source:
Press the Arb key, then select the Trigger Source field. The same trigger source will be used to trigger
all of the arbitrary waveforms.
Arb Run/Stopselects the front panel Arb Run/Stop key as the trigger source. This means that the Arb
will be triggered as soon as you run it. BNC Trigger In selects the rear trigger input BNC connector as
the trigger source. Remote command selects a remote interface command as the trigger source.
Step 5 – Preview and run the Arb:
The Arb Preview dialog shown above provides a preview of the Constant-dwell waveform that will be
run on output 1.
