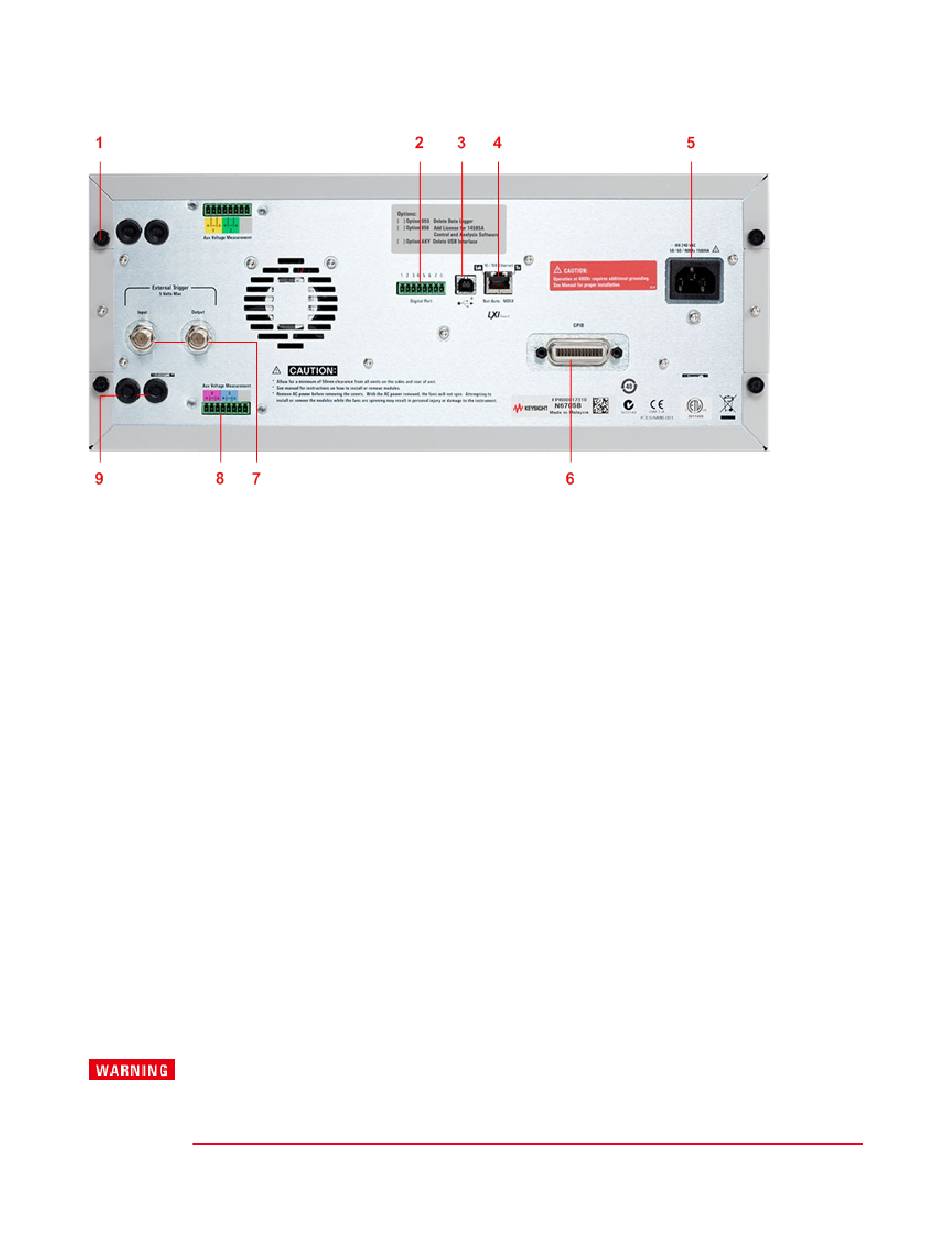

Rear Panel at a Glance
1. Cover screw - Facilitates top and bottom cover removal for power module installation.
2. Digital port connector - Connects to the 8-pin digital port. Port functions are user-configurable.
Refer to
Using the Digital Control Port
3. USB connector - Connects to USB interface. May be disabled from front panel menu. Option AKY
deletes the connector.
4. LAN connector - Connects to 10/100 Base-T interface. Left LED indicates activity. Right LED indic-
ates link integrity. May be disabled from front panel menu.
5. IEC 320 connector - AC input connector. Power cord requires a ground conductor..
6. GPIB connector - GPIB interface connector. May be disabled from front panel menu.
7. Trigger connectors - BNC connectors for trigger in and trigger out signals. Refer to
mands
for signal descriptions.
8. Auxiliary connectors - Auxiliary voltage measurement connectors. Only for use with Keysight
N6781A and N6785A power modules.
9. Wiring access ports - Access for sense and output wire connections. Used for output connections
on power modules rated >20 A. Also used for Keysight N678xA SMU power modules when
extremely precise measurements or output guarding is required.
SHOCK HAZARD The power cord provides a chassis ground through a third conductor.
Be certain that your power outlet is of the three-conductor type with the correct pin
connected to earth ground.
