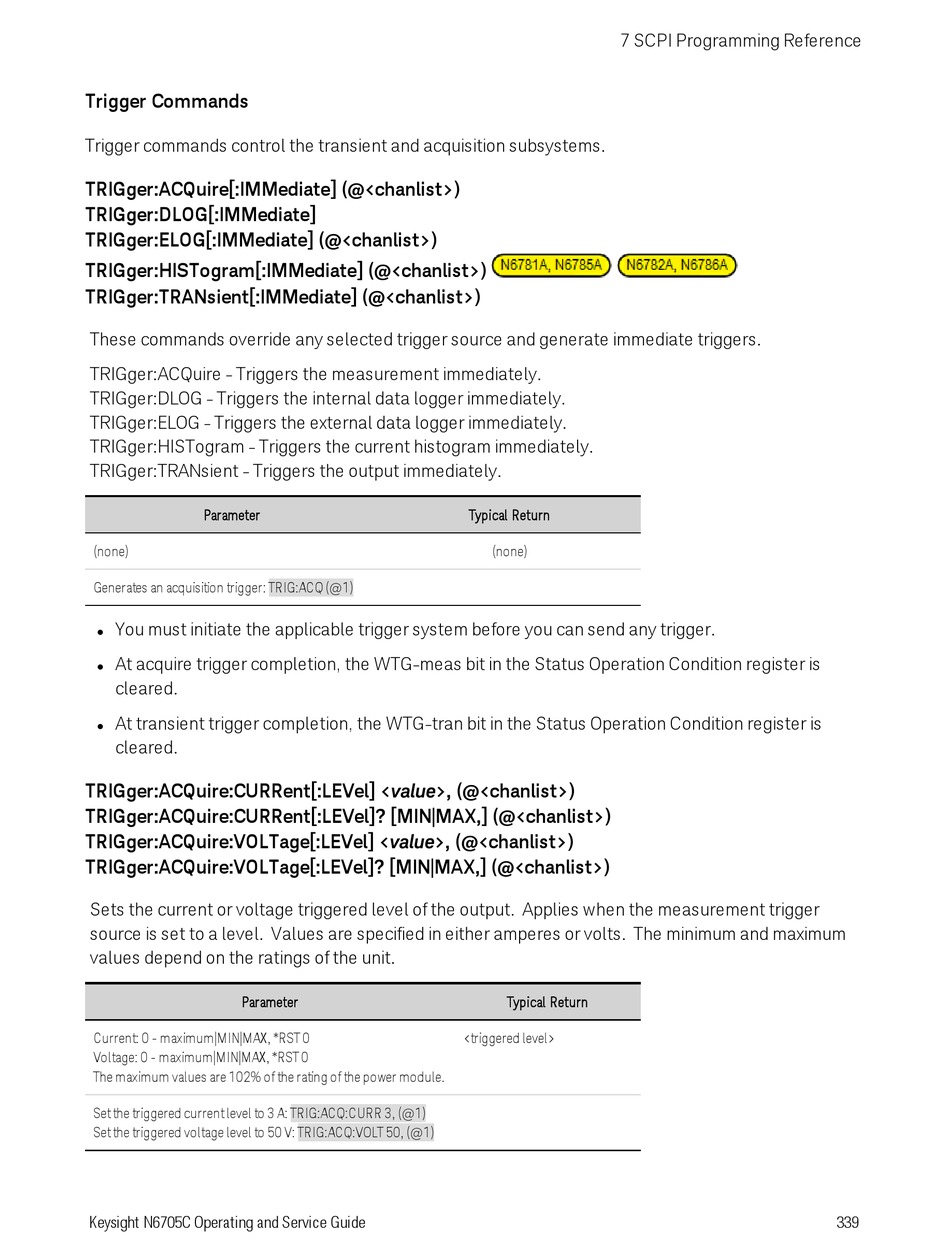

Trigger Commands

Trigger commands control the transient and acquisition subsystems.
TRIGger:ACQuire[:IMMediate] (@<chanlist>)
TRIGger:DLOG[:IMMediate]
TRIGger:ELOG[:IMMediate] (@<chanlist>)
TRIGger:HISTogram[:IMMediate] (@<chanlist>)
TRIGger:TRANsient[:IMMediate] (@<chanlist>)
These commands override any selected trigger source and generate immediate triggers.
TRIGger:ACQuire - Triggers the measurement immediately.
TRIGger:DLOG - Triggers the internal data logger immediately.
TRIGger:ELOG - Triggers the external data logger immediately.
TRIGger:HISTogram - Triggers the current histogram immediately.
TRIGger:TRANsient - Triggers the output immediately.
Parameter
(none)
Generates an acquisition trigger: TRIG:ACQ (@1)
You must initiate the applicable trigger system before you can send any trigger.
l
At acquire trigger completion, the WTG-meas bit in the Status Operation Condition register is
l
cleared.
At transient trigger completion, the WTG-tran bit in the Status Operation Condition register is
l
cleared.
TRIGger:ACQuire:CURRent[:LEVel] <value>, (@<chanlist>)
TRIGger:ACQuire:CURRent[:LEVel]? [MIN|MAX,] (@<chanlist>)
TRIGger:ACQuire:VOLTage[:LEVel] <value>, (@<chanlist>)
TRIGger:ACQuire:VOLTage[:LEVel]? [MIN|MAX,] (@<chanlist>)
Sets the current or voltage triggered level of the output. Applies when the measurement trigger
source is set to a level. Values are specified in either amperes or volts. The minimum and maximum
values depend on the ratings of the unit.
Parameter
Current: 0 - maximum|MIN|MAX, *RST 0
Voltage: 0 - maximum|MIN|MAX, *RST 0
The maximum values are 102% of the rating of the power module.
Set the triggered current level to 3 A: TRIG:ACQ:CURR 3, (@1)
Set the triggered voltage level to 50 V: TRIG:ACQ:VOLT 50, (@1)
Keysight N6705C Operating and Service Guide
7 SCPI Programming Reference
Typical Return
(none)
Typical Return
<triggered level>
