Data Logger View - Keysight Technologies N6705C Operating And Service Manual

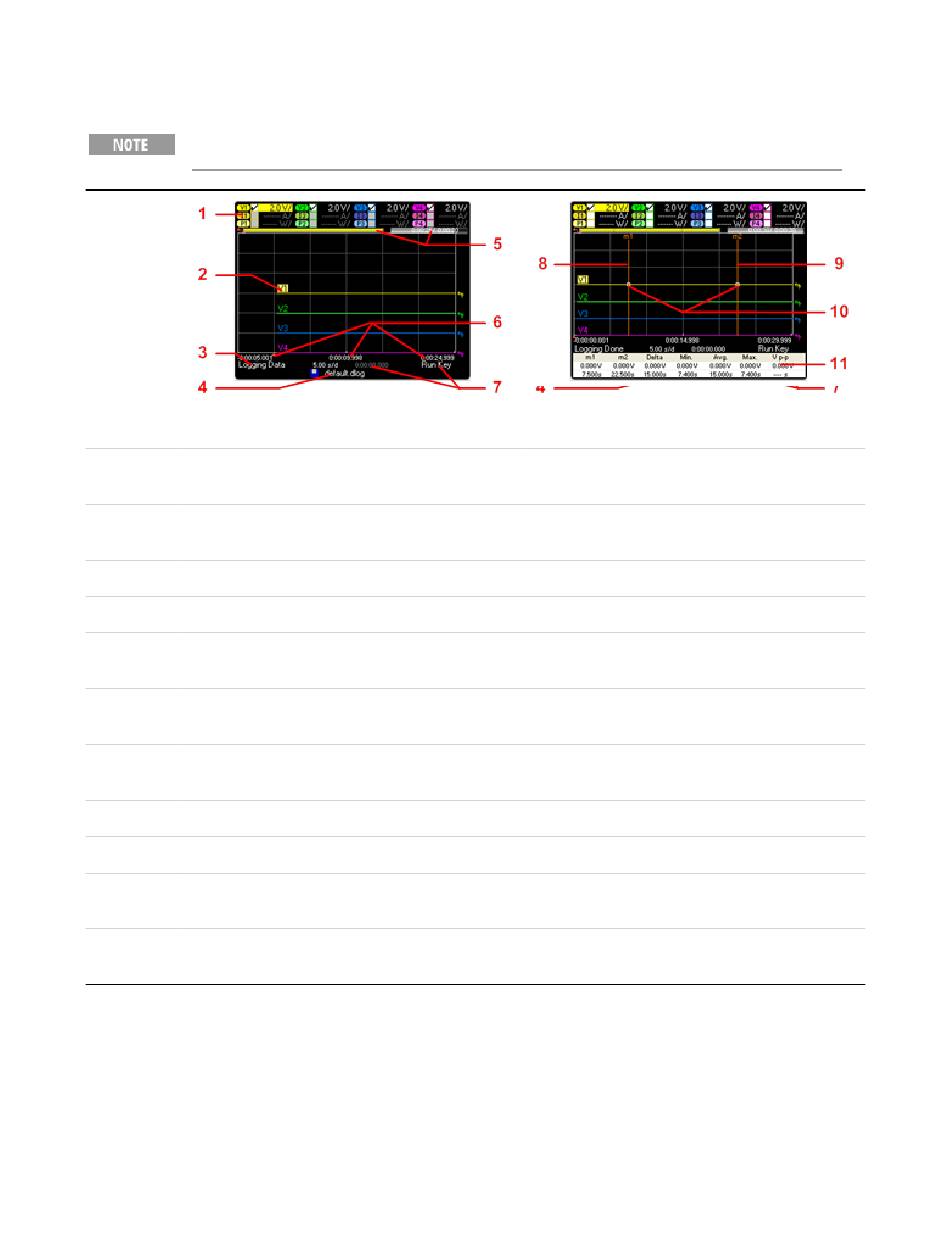

Data Logger View

Option 055 deletes the Data Logger function on Model N6705
Press Data
Logger
This key
toggles
between
standard and
marker views.
1. Trace Identifies the voltage or current trace that will be displayed. Dashes (----) indicate that the specified trace is turned off. Select
Controls the trace and press Enter to turn it on or off.
2. Output Voltage, current, or power traces. Voltage traces V1,V2, V3 and V4 shown. Press Trigger Level knob to autoscale all traces.
Traces
3. Status Indicates whether the Data Logger is logging data, done logging, or is empty.
4. Filename Indicate the file to which the data is being logged.
5. Data Bar & Displays the progress of the data logger. The yellow bar indicates the visible data. Numbers to the right indicate time
Time Elapsed elapsed/total duration.
6. Time base Displays the time remaining before the trigger point; the time at the center line of the grid in relation to trigger point; and the
Information time elapsed since the trigger
7. Trigger Identifies the trigger source and trigger offset. The trigger offset is specified in % of the total duration, but shown in seconds
on the display
8. M1 Marker Measurement Marker 1 enabled. Adjust using Marker 1 knob. Press knob to reset.
9. M2 Marker Measurement Marker 2 enabled. Adjust using Marker 1 knob. Press knob to reset.
10. Intersect Shows where the measurement markers intersect the waveform.
Point
11. Meas- Shows the calculations of the waveform data between Marker 1 and Marker 2.
urements
Keysight N6705C Operating and Service Guide
Standard View
1 Quick Reference
Marker View
21
