3 Using the Source Functions
Step 3 – Importing or exporting Constant-dwell Arb data
Refer to under
Importing and Exporting Arb Data
later in this section for information on how to create
.csv current or voltage data files.

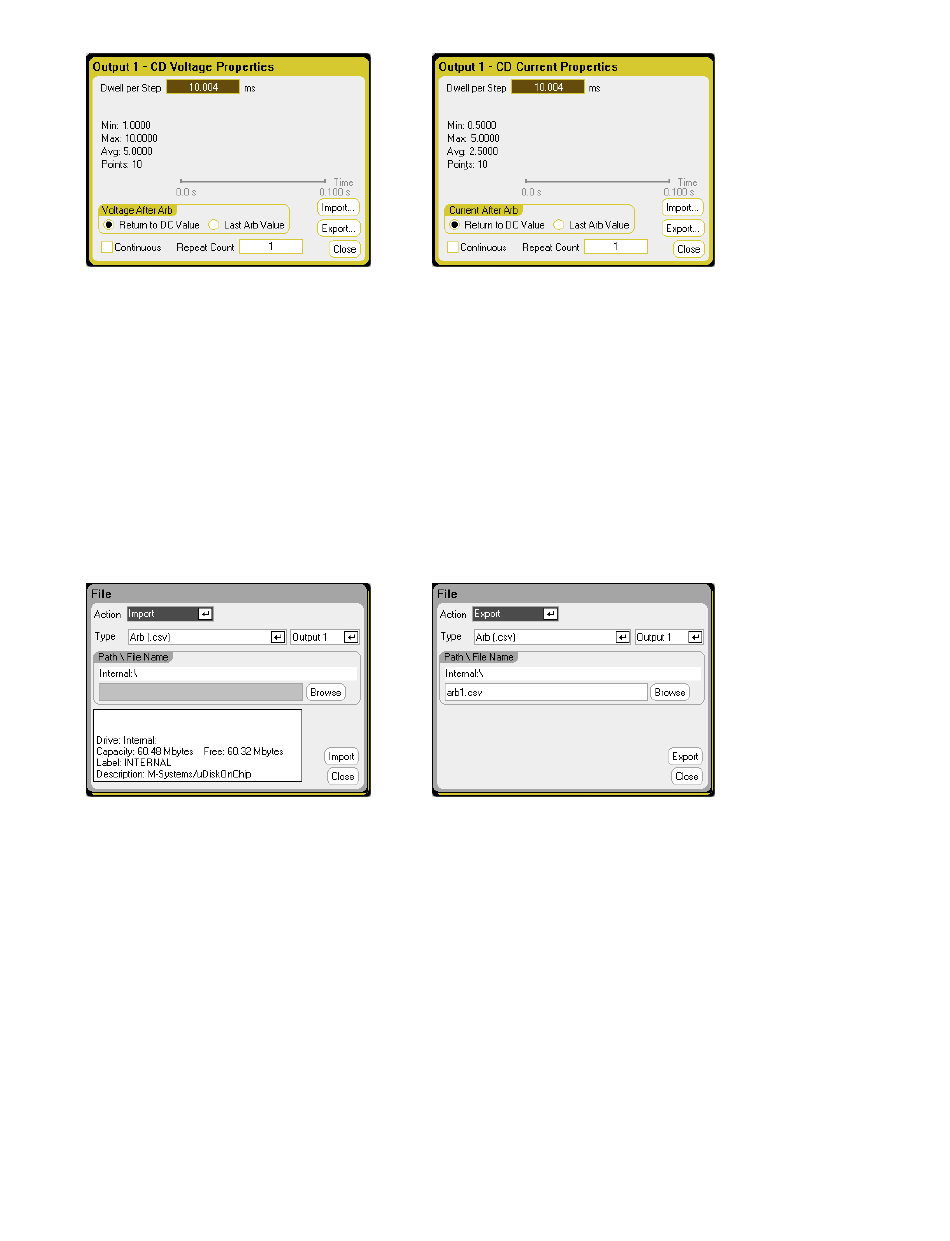

Select the Arb.csv file type format. When importing, specify the output on which the Constant-dwell
Arb will run. When exporting, specify the output from which you want to export the Arb.
Under Path/Filename, click Browse and specify the location where the import file is located or where
the export file will be placed. Internal:\ specifies the instrument's internal memory. External:\ specifies
the Memory port on the front panel.
Select Import to import the file. Select Export to export the file.
Step 4 – Select the trigger source:
Press the Arb key, then select the Trigger Source field. The same trigger source will be used to trigger
all of the arbitrary waveforms.
Arb Run/Stop key selects the front panel Arb Run/Stop key as the trigger source. This means that the
Arb will be triggered as soon as you run it. BNC Trigger In selects the rear trigger input BNC connector
as the trigger source. Remote command selects a remote interface command as the trigger source.
Keysight N6705C Operating and Service Guide
99
