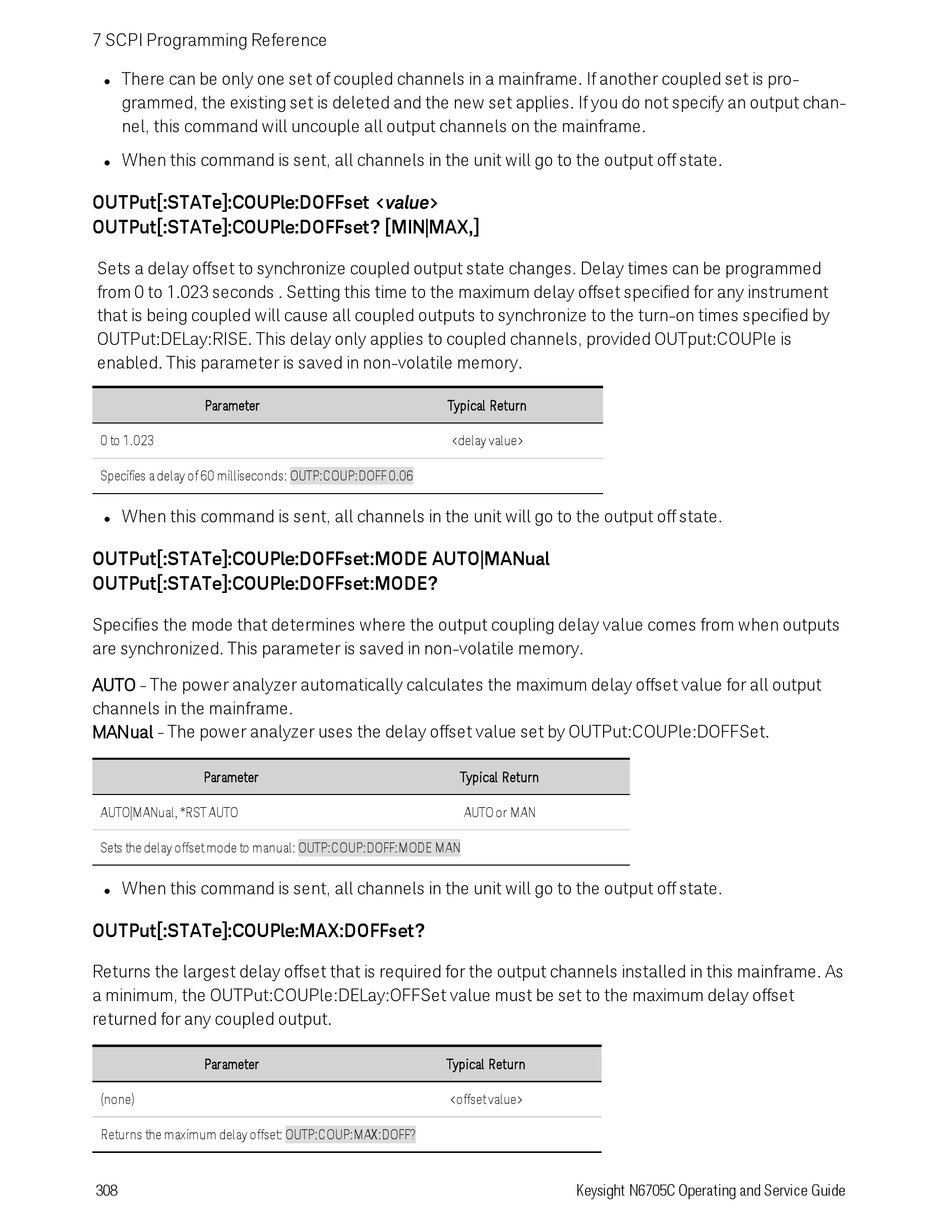

Keysight Technologies N6705C Operating And Service Manual page 308

7 SCPI Programming Reference
There can be only one set of coupled channels in a mainframe. If another coupled set is pro-
l
grammed, the existing set is deleted and the new set applies. If you do not specify an output chan-
nel, this command will uncouple all output channels on the mainframe.
When this command is sent, all channels in the unit will go to the output off state.
l
OUTPut[:STATe]:COUPle:DOFFset <value>
OUTPut[:STATe]:COUPle:DOFFset? [MIN|MAX,]
Sets a delay offset to synchronize coupled output state changes. Delay times can be programmed
from 0 to 1.023 seconds . Setting this time to the maximum delay offset specified for any instrument
that is being coupled will cause all coupled outputs to synchronize to the turn-on times specified by
OUTPut:DELay:RISE. This delay only applies to coupled channels, provided OUTput:COUPle is
enabled. This parameter is saved in non-volatile memory.
Parameter
0 to 1.023
Specifies a delay of 60 milliseconds: OUTP:COUP:DOFF 0.06
When this command is sent, all channels in the unit will go to the output off state.
l
OUTPut[:STATe]:COUPle:DOFFset:MODE AUTO|MANual
OUTPut[:STATe]:COUPle:DOFFset:MODE?
Specifies the mode that determines where the output coupling delay value comes from when outputs
are synchronized. This parameter is saved in non-volatile memory.
AUTO - The power analyzer automatically calculates the maximum delay offset value for all output
channels in the mainframe.
MANual - The power analyzer uses the delay offset value set by OUTPut:COUPle:DOFFSet.
Parameter
AUTO|MANual, *RST AUTO
Sets the delay offset mode to manual: OUTP:COUP:DOFF:MODE MAN
When this command is sent, all channels in the unit will go to the output off state.
l
OUTPut[:STATe]:COUPle:MAX:DOFFset?
Returns the largest delay offset that is required for the output channels installed in this mainframe. As
a minimum, the OUTPut:COUPle:DELay:OFFSet value must be set to the maximum delay offset
returned for any coupled output.
Parameter
(none)
Returns the maximum delay offset: OUTP:COUP:MAX:DOFF?
308
Typical Return
<delay value>
Typical Return
AUTO or MAN
Typical Return
<offset value>
