Screen Capture - Keysight Technologies N6705C Operating And Service Manual

Parameter
Type
Output <1-4>
Path\File Name
Browse
Export

Screen Capture

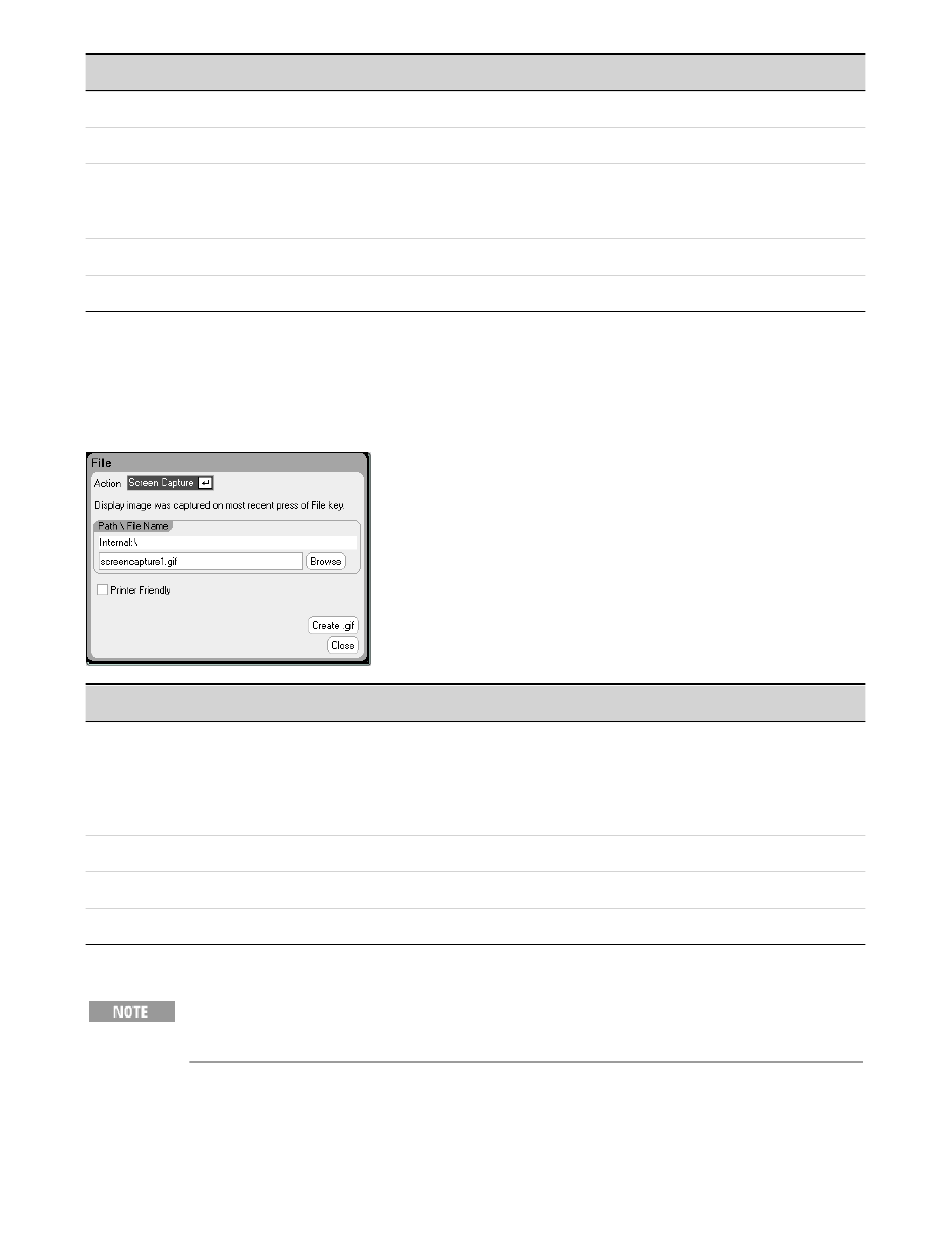

To capture a screen, press the File key, then scroll and select Screen Capture. This saves the screen
that was active when you pressed File
Parameter
Path\File Name
Browse
Print Friendly
Create .gif
The time of step 0 is the sum of the Start Time, Top Time and End Time. The default
pacing for sequence steps is Dwell-pacing.
Keysight N6705C Operating and Service Guide
Description
Data type: Arb data (user-defined or CD). Data is converted from .csv format to an internal file format.
Specifies the output that will receive the Arb data.
Specifies a file where the data is located.
Internal:\ specifies the instrument's internal memory.
External:\ specifies the Memory port on the front panel.
Lets you browse another directory or USB memory device.
Imports the .csv data to the file name in .csv format.
A copy of the current screen is saved
whenever the File key is pressed.
Description
Specifies a file name in which to save the image. Screens are saved in .gif format (graphics interchange
format).
Internal:\ specifies the instrument's internal memory.
External:\ specifies the Memory port on the front panel. Enter a name in the text field. See
Name.
Lets you browse another directory or USB memory device.
Check this box to save Scope View and Data Logger screens with a white instead of a dark background.
Saves the image to the specified .gif file.
