Step 6. Remove the bulk supply.
Step 7. To install the bulk supply, perform the above steps in reverse order.
For reassembly, make a note of the color-coding of all the wires as well as the pins to
which the wires are connected (see table below).

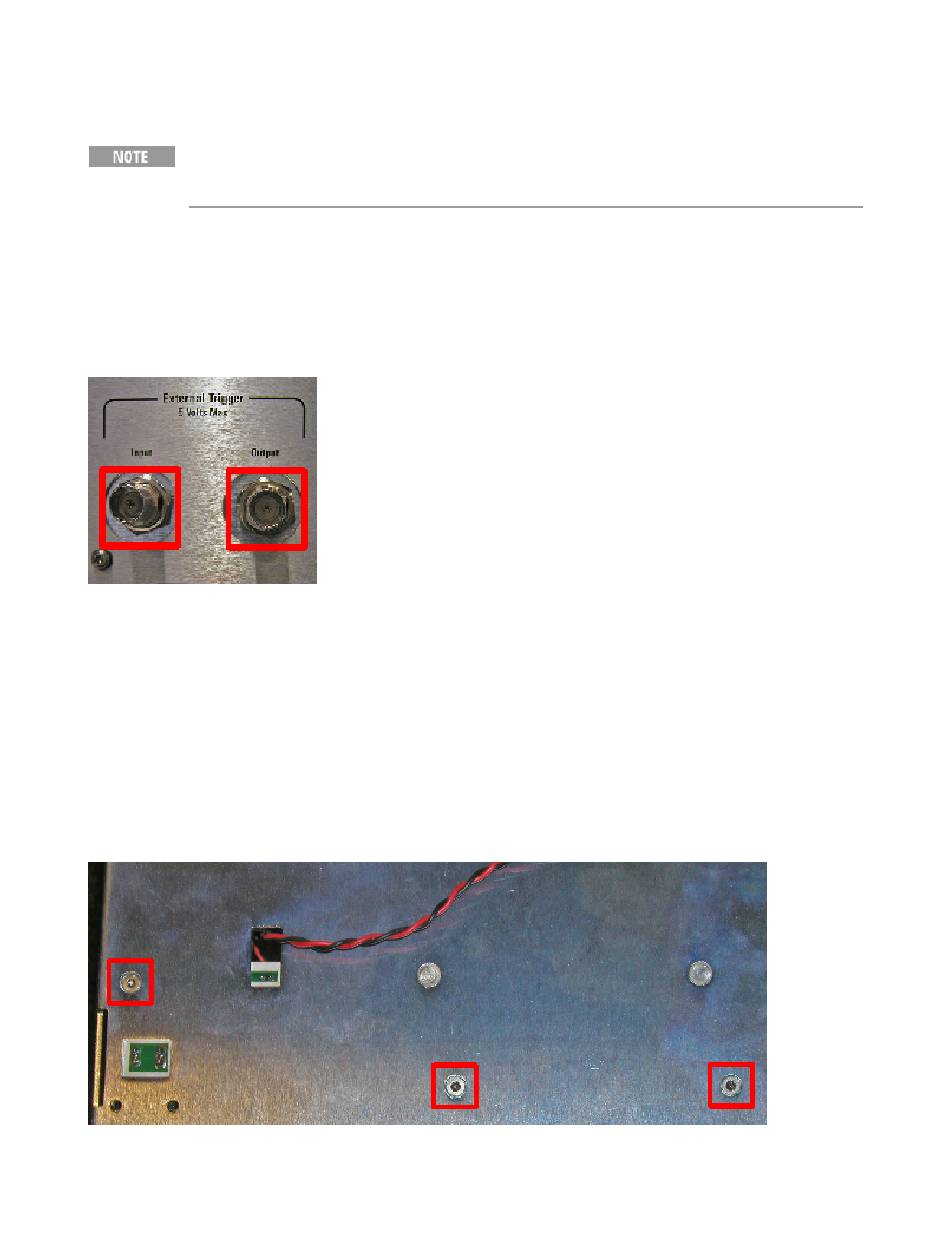

Removing/Installing the BNC Trigger Board (N6705-66502)
Step 1. Remove the top chassis as previously described.
Step 2. Remove the two 5/8 in. nuts from the binding posts.
Step 3. Remove the BNC boardy
Step 4. To install the BNC board, perform steps 1-3 in reverse order.
Removing/Installing the Top Backplane Board (5067-5100)
Step 1. Remove the top chassis as previously described.
Step 2. Remove three screws using a T10 driver from the chassis on the side opposite to the
backplane board.
