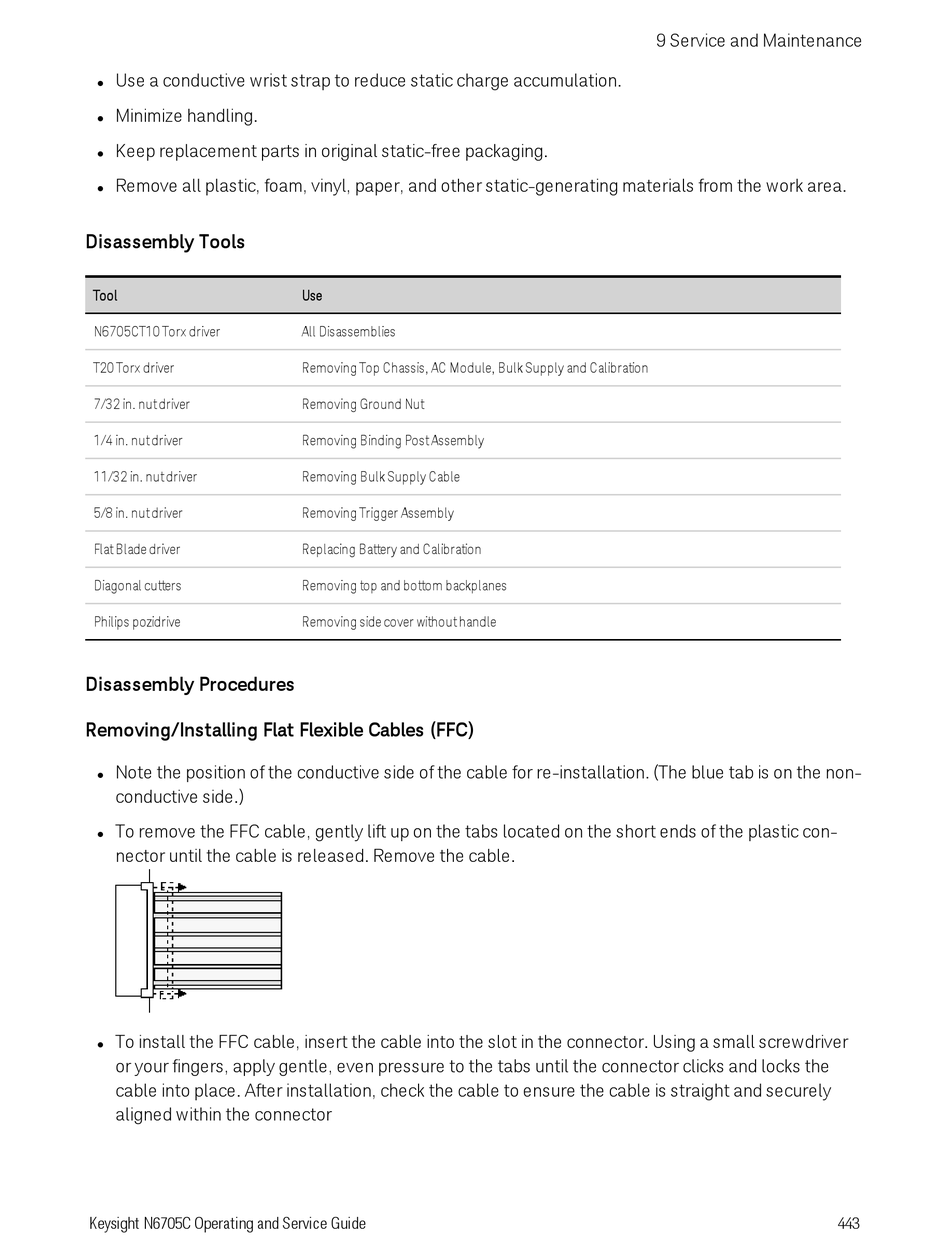

Disassembly Tools; Disassembly Procedures - Keysight Technologies N6705C Operating And Service Manual

Use a conductive wrist strap to reduce static charge accumulation.
l
Minimize handling.
l
Keep replacement parts in original static-free packaging.
l
Remove all plastic, foam, vinyl, paper, and other static-generating materials from the work area.
l

Disassembly Tools

Tool
N6705CT10 Torx driver
T20 Torx driver
7/32 in. nut driver
1/4 in. nut driver
11/32 in. nut driver
5/8 in. nut driver
Flat Blade driver
Diagonal cutters
Philips pozidrive

Disassembly Procedures

Removing/Installing Flat Flexible Cables (FFC)
Note the position of the conductive side of the cable for re-installation. (The blue tab is on the non-
l
conductive side.)
To remove the FFC cable, gently lift up on the tabs located on the short ends of the plastic con-
l
nector until the cable is released. Remove the cable.
To install the FFC cable, insert the cable into the slot in the connector. Using a small screwdriver
l
or your fingers, apply gentle, even pressure to the tabs until the connector clicks and locks the
cable into place. After installation, check the cable to ensure the cable is straight and securely
aligned within the connector
Keysight N6705C Operating and Service Guide
Use
All Disassemblies
Removing Top Chassis, AC Module, Bulk Supply and Calibration
Removing Ground Nut
Removing Binding Post Assembly
Removing Bulk Supply Cable
Removing Trigger Assembly
Replacing Battery and Calibration
Removing top and bottom backplanes
Removing side cover without handle
9 Service and Maintenance
443
