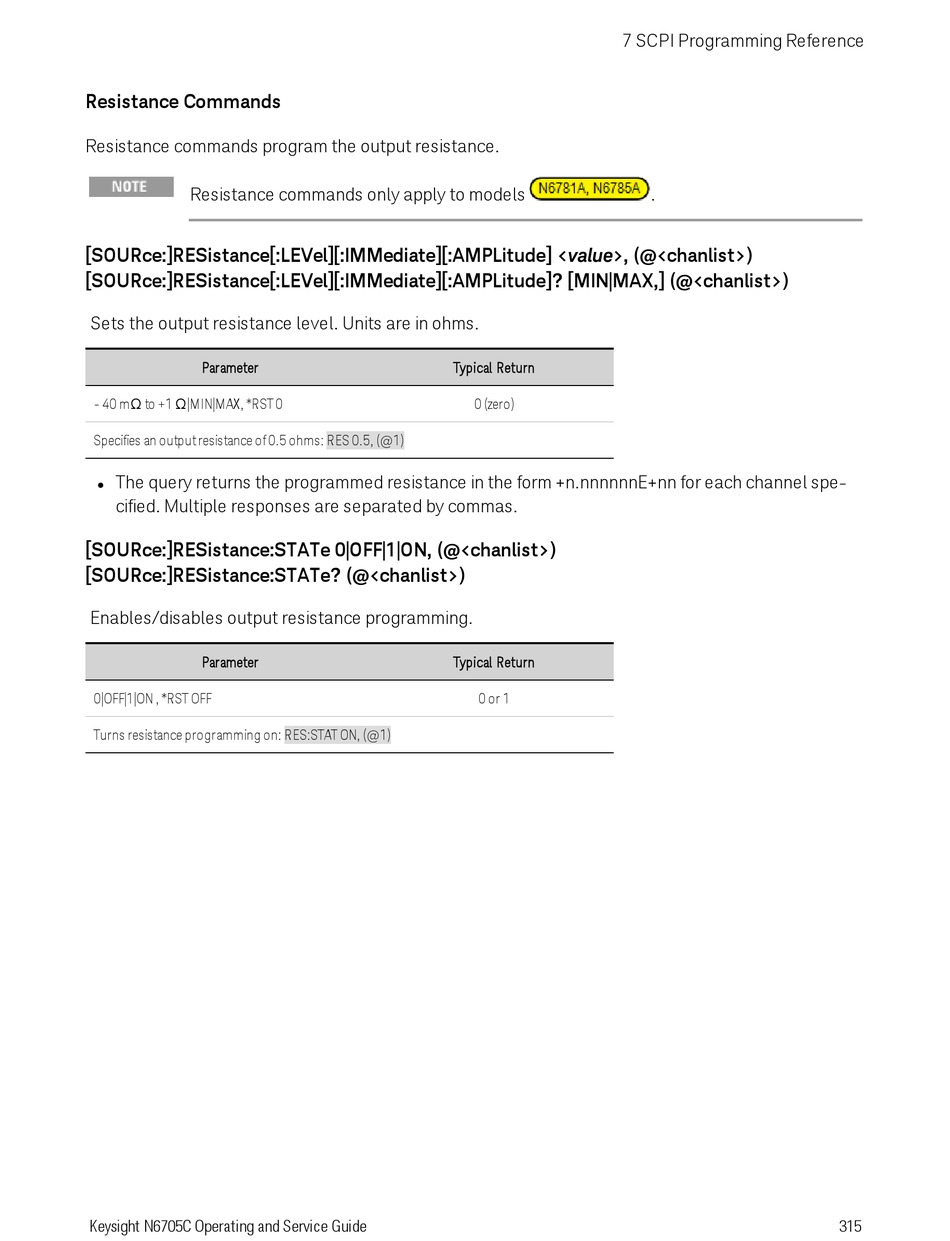

Resistance Commands

Resistance commands program the output resistance.
Resistance commands only apply to models
[SOURce:]RESistance[:LEVel][:IMMediate][:AMPLitude] <value>, (@<chanlist>)
[SOURce:]RESistance[:LEVel][:IMMediate][:AMPLitude]? [MIN|MAX,] (@<chanlist>)
Sets the output resistance level. Units are in ohms.
Parameter
- 40 mΩ to +1 Ω|MIN|MAX, *RST 0
Specifies an output resistance of 0.5 ohms: RES 0.5, (@1)
The query returns the programmed resistance in the form +n.nnnnnnE+nn for each channel spe-
l
cified. Multiple responses are separated by commas.
[SOURce:]RESistance:STATe 0|OFF|1|ON, (@<chanlist>)
[SOURce:]RESistance:STATe? (@<chanlist>)
Enables/disables output resistance programming.
Parameter
0|OFF|1|ON , *RST OFF
Turns resistance programming on: RES:STAT ON, (@1)
Keysight N6705C Operating and Service Guide
7 SCPI Programming Reference
Typical Return
0 (zero)
Typical Return
0 or 1
.
