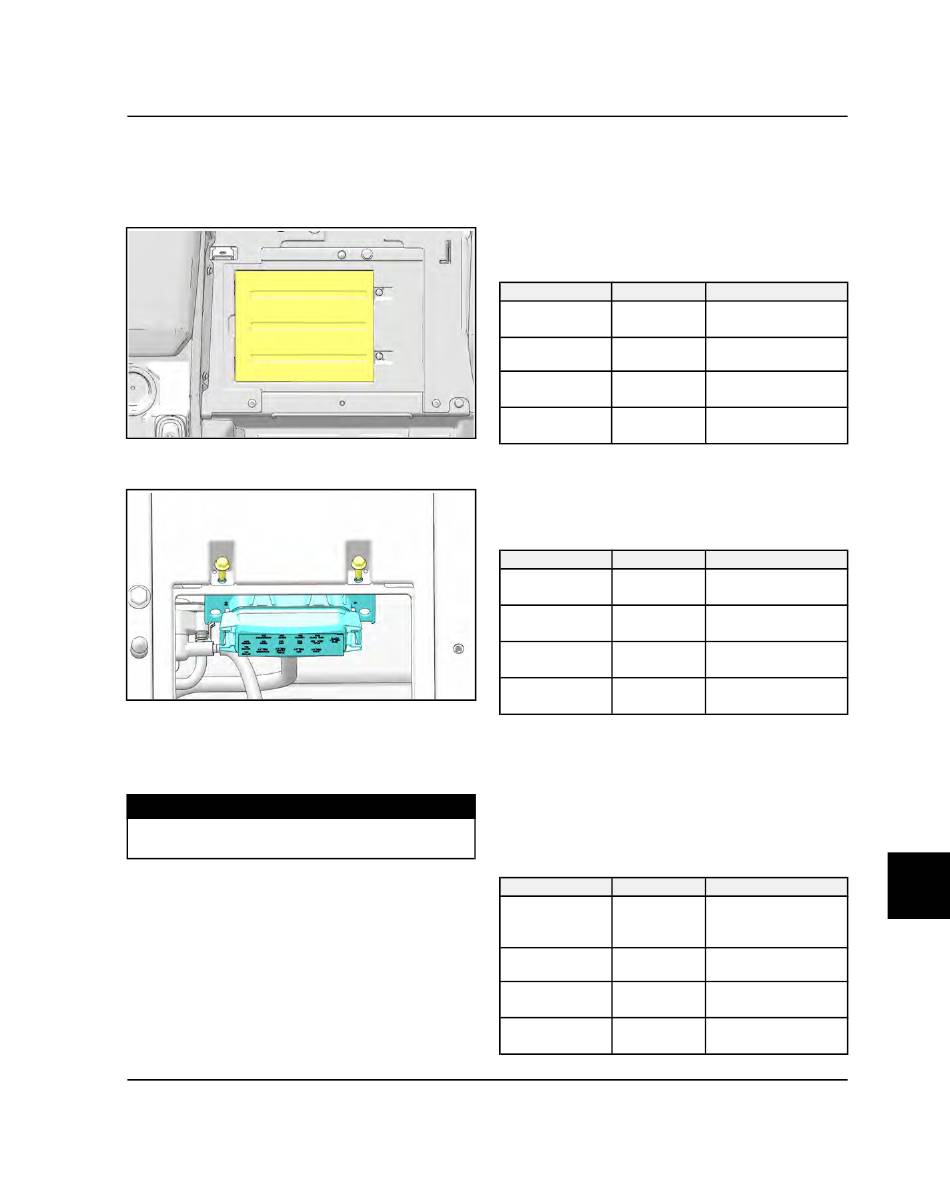

FUSE BOX REPLACEMENT

1. Remove the driver seat.
2. Remove the battery access panel and disconnect the
battery negative (-) cable.
3. Remove the fasteners holding the fuse box to the
vehicle.
4. Disconnect the fuse box from the main harness and
remove from the vehicle.
5. To install, reverse installation procedure. Torque fuse
panel fasteners to specification.
TORQUE
Fuse Box Fasteners:
35 lb-in (4 Nm)
9929375 R02 - 2016-2019 GENERAL / GENERAL 4 Service Manual
© Copyright Polaris Industries Inc.
RELAY CIRCUITS (2017–2018)
Chassis Relay
Provides power to the following systems:
• Lights (Headlights / Taillights)
• Drive (AWD)
• Accessory (12V Receptacles / Accessory Options)
WIRE COLOR PIN
33
Red / Dark Blue
Red 34
Red / Dark 37
Green
Grey 38
Fuel Pump Relay
provides power to the following system:
• Fuel Pump
WIRE COLOR PIN
Red / Dark Blue 25
Orange 26
Red / Blue 29
Dark Green / 30
Yellow
EFI Relay
provides power to the following systems:
• Fuel Injectors
• Ignition Coil
• Fan Relay
• Fuel Pump Relay
WIRE COLOR PIN
Red / White 17
Red 18
Red / Dark Blue 21
Dark Green / 22
Yellow
ELECTRICAL
FUNCTION
Coil power from EFI
B+ #2 Splice
High side power from
Start Solenoid B+
High side output to
Chassis Splice
ECU controlled
ground
FUNCTION
Coil power from EFI
B+ #2 Splice
High side power from
R/S B+ #1 Splice
High side output to
fuel pump
ECU controlled
ground
11
FUNCTION
Coil power from B+
Unswitched Fused #1
Splice
High side power from
EFI fuse
High side output to
EFI B+ Splice
ECU controlled
ground
11.61
