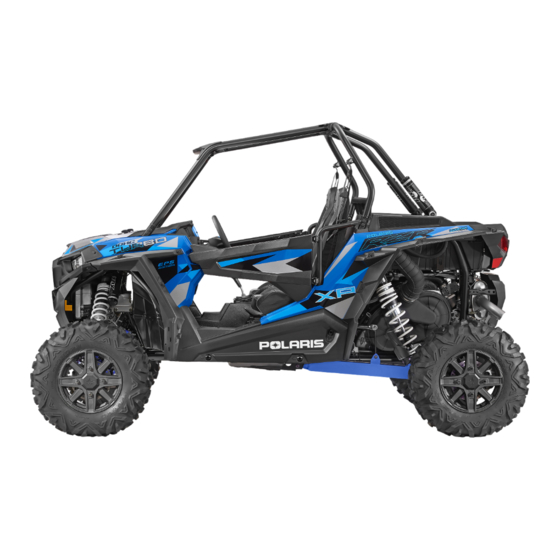

RZR® XP 1000
RZR® XP 4 1000
Owner's Manual
for Maintenance and Safety

Advertisement

Table of Contents
loading

Related Manuals for Polaris RZR XP 1000 2016

Summary of Contents for Polaris RZR XP 1000 2016

  • Page 1 RZR® XP 1000 RZR® XP 4 1000 Owner's Manual for Maintenance and Safety...
  • Page 2 The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. For videos and more information about a safe riding experience with your Polaris vehicle, scan this QR code with your smartphone.
  • Page 3 WELCOME Thank you for purchasing a POLARIS vehicle, and welcome to our world-wide family of POLARIS enthusiasts. Be sure to visit us online at www.polaris.com for the latest news, new product introductions, upcoming events, career opportunities and more. Here at POLARIS we proudly produce an exciting line of utility and recreational products.
  • Page 4 QR code with your smartphone. POLARIS® and RZR® are trademarks of POLARIS Industries Inc. Copyright 2015 Polaris Industries Inc. All information contained within this publication is based on the latest product information at the time of publication. Due to constant...

  • Page 5: Table Of Contents

    Specifications ......130 POLARIS Products..... 132 Troubleshooting .

  • Page 6: Introduction

    INTRODUCTION The RZR is an off-road vehicle. Familiarize yourself with all laws and regulations concerning the operation of this vehicle in your area. The following signal words and symbols appear throughout this manual and on your vehicle. Your safety is involved when these words and symbols are used.
  • Page 7 Failure to heed the warnings and safety precautions contained in this manual can result in severe injury or death. Your POLARIS vehicle is not a toy and can be hazardous to operate. This vehicle handles differently than cars, trucks or other off-road vehicles.
  • Page 8 Record your vehicle's identification numbers and key number in the spaces provided. Remove the spare key and store it in a safe place. An ignition key can be duplicated only by ordering a POLARIS key blank (using your key number) and mating it with one of your existing keys.

  • Page 9: Safety

    SAFETY Safety Training Safety training is a top priority for POLARIS. POLARIS strongly encourages you and any family members who will be riding this vehicle to take a training course. ROHVA (Recreational Off-Highway Vehicle Association) provides both an online safety e-course and a hands-on safety course. To access this valuable training, visit www.rohva.org.
  • Page 10 Protective gear reduces the chance of injury. Helmet Wearing a helmet can prevent a severe head injury. Whenever riding this POLARIS vehicle, always wear a helmet that meets or exceeds established safety standards. Approved helmets in the USA and Canada bear a U.S. Department of Transportation (DOT) label.
  • Page 11 Eye Protection Do not depend on eyeglasses or sunglasses for eye protection. When- ever riding this POLARIS vehicle, always wear shatterproof goggles or use a shatterproof helmet face shield. POLARIS recommends wearing approved Personal Protective Equipment (PPE) bearing markings such as VESC 8, V-8, Z87.1, or CE.
  • Page 12 If an informational or graphic label becomes illegible or comes off, contact your POLARIS dealer to purchase a replacement. Replacement safety labels are provided by POLARIS at no charge. The part number is printed on the label. Payload Riders...
  • Page 13 SAFETY Safety Labels and Locations Drive Responsibly Warning Drive Responsibly Avoid loss of control and rollovers: • Avoid abrupt maneuvers, sideways sliding, skidding or fishtailing, and never do donuts. • Slow down before entering a turn. • Avoid hard acceleration when turning, even from a stop.
  • Page 14 SAFETY Safety Labels and Locations Fuel Transport Warning WARNING Fuel Transport Warning Before transporting flammable liquids in this vehicle, ALWAYS read your Owner’s Manual. • Always use containers designed for off-road vehicles. • Inspect containers for wear, cracks and leaks before each ride. •...
  • Page 15 POLARIS dealer. 7177469 Air Box Caution CAUTION Use a Polaris approved air filter. The use of a non-Polaris approved air filter may cause engine damage. Before installing filter, ensure there is no dirt or debris in the clean side of the intake tube.
  • Page 16 SAFETY Safety Warnings WARNING Failure to operate this vehicle properly can result in a collision, loss of control, accident or rollover, which may result in serious injury or death. Heed all safety warnings outlined in this section of the owner’s manual and in the safety DVD provided with your vehicle.
  • Page 17 SAFETY Safety Warnings Failure to Inspect Before Operating Failure to inspect and verify that the vehicle is in safe operating condition before operating increases the risk of an accident. Always perform the pre-ride inspection before each use of your vehicle to make sure it's in safe operating condition.
  • Page 18 SAFETY Safety Warnings Carrying Multiple Passengers (RZR XP) Never carry a passenger until you have operated this vehicle for at least two hours and have completed the New Operator Driving Procedures outlined on pages 54-55. A passenger must always be seated in a passenger seat with seat belt secured.
  • Page 19 SAFETY Safety Warnings Passengers in the Cargo Box Carrying a passenger in the cargo box could result in a fall from the vehicle or contact with moving components. Never allow a passenger to ride in the cargo box. A passenger must always be seated in a passenger seat with seat belt secured.
  • Page 20 SAFETY Safety Warnings Turning Improperly Turning improperly could cause loss of traction, loss of control, accident or rollover. Always follow proper procedures for turning as described in this owner's manual. Avoid sharp turns. Never turn while applying heavy throttle. Never make abrupt steering maneuvers.
  • Page 21 SAFETY Safety Warnings Crossing Hillsides Driving on a sidehill is not recommended. Improper procedure could cause loss of control or rollover. Avoid crossing the side of any hill unless absolutely necessary. If crossing a hillside is unavoidable, always follow proper procedures as described in this owner's manual.
  • Page 22 SAFETY Safety Warnings Operating Improperly in Reverse Improperly operating in reverse could result in a collision with an obstacle or person. Always follow proper operating procedures as outlined in this manual. See page 62. Before shifting into reverse gear, always check for obstacles or people behind the vehicle.
  • Page 23 SAFETY Safety Warnings Operating Through Water Operating through deep or fast-flowing water can cause loss of traction, loss of control, rollover or accident. Never operate in fast-flowing water or in water that exceeds the floor level of the vehicle. Always follow proper procedures for operating in water as described in this owner’s manual.
  • Page 24 SAFETY Safety Warnings Improper Cargo Loading Overloading the vehicle or carrying cargo improperly may cause changes in stability and handling, which could cause loss of control or an accident. • Always follow the instructions in this owner’s manual for carrying cargo. See page 64.
  • Page 25 SAFETY Safety Warnings Exposure to Exhaust Engine exhaust fumes are poisonous and can cause loss of consciousness or death in a short time. Never start the engine or let it run in an enclosed area. Operate this vehicle only outdoors or in well-ventilated areas. Hot Exhaust Systems Exhaust system components are very hot during and after use of the vehicle.
  • Page 26 SAFETY Safety Warnings Equipment Modifications Your POLARIS vehicle is designed to provide safe operation when used as directed. Modifications to your vehicle may negatively impact vehicle stability. Failure of critical machine components may result from operation with any modifications, especially those that increase speed or power. This vehicle may become less stable at speeds higher than those for which it is designed.

  • Page 27: Features And Controls

    FEATURES AND CONTROLS Component Locations ROPS Frame RZR XP 4 Shown Steering Cargo Wheel Radiator Fuel Tank Doors Passenger Hand Hold Brake Gear Selector Cargo Box Tie-Down Pedal Points (4 corners) Throttle Pedal...
  • Page 28 FEATURES AND CONTROLS Switches Instrument Light Cluster Switch Switch 12V Accessory Ignition Outlet Switch Auxiliary Outlets The vehicle is equipped with one or more 12-volt accessory outlets. One outlet is on the dash, a second outlet (if equipped) is in the rear passenger area.
  • Page 29 ON position. The EPS warning indicator will illuminate to indicate the EPS has shut down. If the light remains on after starting the engine, the EPS system is inoperative. Your POLARIS dealer can assist.
  • Page 30 FEATURES AND CONTROLS Seats Before operating the vehicle, always push down on all seat backs to ensure the latches are secure. Seat Adjustments On seats equipped with an adjustment lever under the front edge of the seat, pull the lever to the left. Slide the seat forward or rearward to the desired position.
  • Page 31 FEATURES AND CONTROLS Steering Wheel The steering wheel can be tilted upward or downward for rider preference. Lift and hold the steering wheel adjustment lever while moving the steering wheel upward or downward. Release the lever when the steering Adjustment Lever wheel is at the desired position.
  • Page 32 FEATURES AND CONTROLS Passenger Hand Hold Always adjust the hand hold to a comfortable position for your passenger before operating. Make sure the adjustment pin and retainer are securely installed after making adjustments. 1. Remove the retainer from the end of the adjustment pin. 2.
  • Page 33 FEATURES AND CONTROLS Hood Remove the hood to access the radiator pressure cap and coolant overflow bottle. 1. Turn the hood fasteners 1/4 turn. 2. Grasp the upper hood edge and pull upward to disengage the fasteners. 3. Pivot the hood forward and lift upward to disengage the lower hood hooks.
  • Page 34 FEATURES AND CONTROLS Seat Belts This POLARIS vehicle is equipped with seat belts for all riders. Always make sure the seat belts are secured for the operator and all passengers before riding. The driver’s seat belt is equipped with a seat belt interlock.
  • Page 35 FEATURES AND CONTROLS Seat Belts Seat Belt Height Adjuster (if equipped) STEP 1 Stretch the seat belt height adjuster toward the front of the vehicle. STEP 1 STEP 2 While continuing to stretch the seat belt height adjuster, slide the adjuster up or down, rocking it side to side if necessary, until you reach the desired height.
  • Page 36 Retractor Latch Housings and/or replaced by an Housing authorized POLARIS dealer. 4. To clean dirt or debris from the seat belts, sponge the straps with mild soap and water. Do not use bleach, dye or household detergents. Rinse the entire length of the belt webbing. Use a garden...
  • Page 37 FEATURES AND CONTROLS Service Access Panels Engine Access Panel The engine access panel is located behind the seats on the frame of the vehicle. Remove the seats and remove the access panel to reach serviceable engine components. Cargo Box Access Panel The cargo box access panel is located on the floor of the cargo box.
  • Page 38 Tip: Maintaining shift linkage adjustment is important to assure proper transmission function. Your POLARIS dealer can assist in resolving any shifting problems. NOTICE: Do not attempt to shift the transmission while the vehicle is moving or damage to the transmission could result.
  • Page 39 OSHA (on ROPS or on 1928.53 rollover passenger hip bar) performance requirements. Always have your authorized POLARIS dealer thoroughly inspect the ROPS if it ever becomes damaged in any way. No device can assure occupant protection in the event of a rollover.
  • Page 40 FEATURES AND CONTROLS All Wheel Drive (AWD) System The All Wheel Drive system is controlled by the AWD switch. When the switch is on 2X4, the vehicle is in two-wheel drive at all times. When the switch is on AWD, the vehicle is in all wheel drive and the 4X4 indicator in the instrument cluster will be on.
  • Page 41 FEATURES AND CONTROLS Instrument Cluster NOTICE: High water pressure may damage components. Wash the vehicle by hand or with a garden hose using mild soap. Certain products, including insect repellents and chemicals, will damage the speedometer lens and other plastic surfaces. Do not use alcohol to clean the instrument cluster.
  • Page 42 EPS Warning This indicator illuminates briefly when the key is turned to the ON position. If the light remains on, the EPS system is inoperative. Your POLARIS dealer can assist. Neutral This lamp illuminates when the transmission is in neutral and the ignition key is in the ON position.
  • Page 43 If this occurs, your POLARIS dealer can provide proper diagnosis. The information center is set to display standard units of measurement and a 12-hour clock at the factory.
  • Page 44 5. Clock - The clock displays time in a 12-hour or 24-hour format. See page 44 for resetting instructions. 6. Service Indicator - A flashing wrench symbol alerts the operator that the preset service interval has been reached. Your POLARIS dealer can provide scheduled maintenance. See page 44 for resetting instructions.
  • Page 45 FEATURES AND CONTROLS Instrument Cluster Rider Information Center Use the MODE button to toggle through the information area options. Display Units (Standard/Metric) MODE Button The display can be changed to show either standard or metric units of measurement for each of the following settings. Tip: To exit the set-up mode, turn the key off.
  • Page 46 FEATURES AND CONTROLS Instrument Cluster Rider Information Center Clock Mode Tip: The clock must be reset any time the battery has been disconnected or dis- charged. 1. Turn the key to the ON position. Use the MODE button to toggle to the odometer display.
  • Page 47 FEATURES AND CONTROLS Instrument Cluster Rider Information Center Odometer Mode The odometer records and displays the distance traveled by the vehicle. Trip Meter Mode The trip meter records the distance traveled by the vehicle if reset before each trip. To reset, select the trip meter mode. Press and hold the MODE button until the meter resets to zero.
  • Page 48 Diagnostic Display Mode The EFI diagnostic display mode is for informational purposes only. Your POLARIS dealer can provide for all major repairs. The diagnostic mode is accessible only when the check engine warning indicator activates after the key has been turned on. Leave the key on if you want to view the active code (failure code).
  • Page 49 3. Record the three numbers displayed in the gear position, clock and odometer displays. 4. Press the MODE button to advance to the next error code. 5. Press and hold the MODE button to exit the diagnostics code menu. 6. Your authorized POLARIS dealer can provide code details and diagnosis.

  • Page 50: Operation

    Vehicle Break-in Period The break-in period for your new POLARIS vehicle is the first 25 hours of operation, or the time it takes to use the first two tanks full of gasoline. Clutch and drive belt break-in periods vary depending on operating conditions.
  • Page 51 OPERATION Vehicle Break-in Period Engine and Drivetrain Break-in 7. Carry only light loads. 8. During the break-in period, change both the oil and the filter at 25 hours or one month. 9. Check fluid levels of transmission and all gearcases after the first 25 hours of operation and every 100 hours thereafter.
  • Page 52 OPERATION Pre-Ride Inspection Failure to inspect and verify that the vehicle is in safe operating condition before operating increases the risk of an accident. Always inspect the vehicle before each use to make sure it's in safe operating condition. Item Remarks Page Brake system/pedal travel...
  • Page 53 4. Engine exhaust fumes are poisonous. Never start the engine or let it run in an enclosed area. 5. Never operate with accessories not approved by POLARIS for use on this vehicle. 6. Operate this vehicle off-road only. Never operate the vehicle on pavement or on any public street, road or highway, including dirt and gravel roads.
  • Page 54 OPERATION Starting the Engine 1. Position the vehicle on a level surface outdoors or in a well-venti- lated area. 2. Sit in the driver's seat and fasten the seat belt. Always make sure all cab doors are closed and latched when riding in this vehicle. 3.
  • Page 55 Respect the environment in which you ride your vehicle. Find out where the designated riding areas are by contacting your POLARIS dealer, a local riding club, or local officials. Help keep our trails open for recreational vehicle use. As an off-road enthusiast, you represent the sport and can set a good example (or a poor example) for others to follow.
  • Page 56 OPERATION New Operator Driving Procedures 1. Read and understand the owner's manual and all warning and instruction labels before operating this vehicle. 2. Visit the Recreational Off-Highway Vehicle Association web site (rohva.org) and take the free on-line training course. Hands-on training is also available through ROHVA.
  • Page 57 OPERATION New Operator Driving Procedures 12. Apply the brakes and shift into low gear. 13. Check your surroundings and determine your path of travel. 14. Keeping both hands on the steering wheel, slowly release the brakes and depress the throttle with your right foot to begin driving. 15.
  • Page 58 OPERATION Driving with Passengers 1. Complete the New Operator Driving Procedures outlined on pages 54-55. 2. Perform the pre-ride inspection. See page 50. 3. Do not carry more than one passenger in a 2-seat vehicle. Do not carry more than three passen- gers in a 4-seat vehicle.
  • Page 59 OPERATION Driving on Slippery Surfaces When driving on slippery surfaces such as wet trails, loose gravel, or ice, be alert for the possibility of skidding and sliding. Follow these precautions when encountering slippery conditions: 1. Slow down before entering slippery areas. 2.
  • Page 60 OPERATION Driving Uphill Whenever traveling uphill, follow these precautions: 1. Always check the terrain carefully before ascending a hill. Never drive on hills with excessively slippery or loose surfaces. 2. Avoid excessively steep hills. If ascending a steeper grade is unavoidable, shift to low gear and engage all-wheel drive before ascending.
  • Page 61 OPERATION Driving on a Sidehill (Sidehilling) Driving on a sidehill is not recommended. Improper procedure could cause loss of control or rollover. Avoid crossing the side of any hill unless absolutely necessary. If crossing a hill is unavoidable, follow these precautions: 1.
  • Page 62 If your vehicle becomes immersed or is operated in water that exceeds the floor level, service is required before starting the engine. Your POLARIS dealer can provide this service. If it's impossible to bring the vehicle in before starting the engine, perform the service outlined on page 119, and take the vehicle in for service at the first opportunity.
  • Page 63 OPERATION Driving Over Obstacles Follow these precautions when operating over obstacles: 1. Always check for obstacles before operating in a new area. 2. Look ahead and learn to read the terrain. Be constantly alert for hazards such as logs, rocks and low hanging branches. 3.
  • Page 64 OPERATION Driving in Reverse Follow these precautions when operating in reverse: 1. Always check for obstacles or people behind the vehicle. 2. Apply the throttle lightly. Never open the throttle suddenly. 3. Back slowly. 4. Apply the brakes lightly for stopping. 5.
  • Page 65 OPERATION Parking on an Incline A rolling vehicle can result in serious injury. Avoid parking on an incline. If parking on an incline is unavoidable, follow these precautions: 1. Apply the brakes. 2. Place the transmission in PARK. 3. Turn the engine off. 4.
  • Page 66 OPERATION Hauling Cargo WARNING Overloading the vehicle or carrying cargo improperly can alter vehicle handling and may cause loss of control or brake instability. Always follow these precautions when hauling cargo: Never exceed the stated load capacity for this vehicle. REDUCE SPEED AND ALLOW GREATER DISTANCES FOR BRAKING WHEN HAULING CARGO.
  • Page 67 OPERATION Hauling Cargo Your POLARIS vehicle has been designed to carry a specific capacity. Reduce speed and allow a greater distance for braking when carrying cargo. Loads should be centered and carried as low as possible in the box. For stability on rough or hilly terrain, reduce both speed and cargo.
  • Page 68 OPERATION Towing WARNING Towing improperly can alter vehicle handling and may cause loss of control or brake instability. The tow loop on the rear of the vehicle is provided for recovery use ONLY. Tow a vehicle ONLY of equal or lesser size and weight. When towing a disabled RZR vehicle, place the disabled vehicle's transmission in neutral.

  • Page 69: Winch Guide

    WINCH GUIDE These safety warnings and instructions apply if your vehicle came equipped with a winch or if you choose to add an accessory winch to your vehicle. WARNING Improper winch use can result in SEVERE INJURY or DEATH. Always follow all winch instructions and warnings in this manual.
  • Page 70 WINCH GUIDE Winch Safety Precautions 10. Always apply your vehicle’s park brake and/or park mechanism to hold the vehicle in place during winching. Use wheel chocks if needed. 11. Always align the vehicle and winch with the load directly in front of the vehicle as much as possible.
  • Page 71 WINCH GUIDE Winch Safety Precautions 18. Never release the clutch on the winch when the winch cable is under load. 19. Never use the winch for lifting or transporting people. 20. Never use the winch to hoist or suspend a vertical load. 21.
  • Page 72 WINCH GUIDE Winch Operation Read the Winch Safety Precautions in the preceding pages before using your winch. Tip: Consider practicing the operation and use of your winch before you actually need to use it in the field. WARNING Improper winch use can result in SEVERE INJURY or DEATH. Always follow all winch instructions and warnings in this manual.
  • Page 73 WARNING! Replace the winch cable at the first sign of damage to prevent SEVERE INJURY or DEATH in the event of failure. For your safety, always replace POLARIS winch parts (including the cable) with genuine POLARIS replacement parts available at your authorized POLARIS dealer.
  • Page 74 WINCH GUIDE Winch Operation 5. Never remove the hook strap from the hook. 6. Release the winch clutch and pull out the winch cable. 7. Pulling out as much cable as possible maximizes the winch’s pulling capacity. Always be sure that at least five (5) full turns of winch cable are wrapped around the winch drum at all times.
  • Page 75 WINCH GUIDE Winch Operation 11. The ONLY time a winch-equipped vehicle should be moving when using the winch is when that vehicle itself is stuck. The winch- equipped vehicle should NEVER be in motion to “shock” load the winch cable in an attempt to move a second stuck vehicle. See the Shock Loading section on page 76.
  • Page 76 WINCH GUIDE Winch Operation 14. The winch motor may become hot during winch use. If you winch for more than 45 seconds, or if the winch stalls during operation, stop winching and permit the winch to cool down for 10 minutes before using it again.
  • Page 77 WINCH GUIDE Winch Cable Care For your safety, always replace POLARIS winch parts (including the cable) with genuine POLARIS replacement parts available at your authorized POLARIS dealer. WARNING! Use of worn or damaged cable could lead to sudden failure and SEVERE INJURY.
  • Page 78 WINCH GUIDE Shock Loading WARNING! Your winch cable is very strong but it is NOT designed for dynamic, or “shock” loading. Shock loading may tension a winch cable beyond its strength and cause the cable to break. The end of a broken winch cable under such high loading can cause SEVERE INJURY or DEATH to you and other bystanders.
  • Page 79 3. Never work on your winch without first disconnecting the battery connections to prevent accidental activation of the winch. 4. For your safety, always replace POLARIS winch parts (including the cable) with genuine POLARIS replacement parts available at your authorized POLARIS dealer.

  • Page 80: Emission Control Systems

    CFR 205) and local noise level requirements. Operation on Public Lands in the U.S.A. Your POLARIS vehicle has a spark arrester that was tested and qualified to be in accordance with the USFS standard 5100-1C. Federal law requires that this spark arrester be installed and functional when the vehicle is operated on public lands.

  • Page 81: Maintenance

    Any qualified repair shop or person may maintain, replace or repair the emission control devices or systems on your vehicle. An authorized POLARIS dealer can perform any service that may be necessary for your vehicle. POLARIS also recommends POLARIS parts for emissions-related service, however equivalent parts can be used.
  • Page 82 Maintenance Chart Key Perform these operations more often for vehicles subjected to severe use. D Have an authorized POLARIS dealer or other qualified person perform these services. WARNING! Improperly performing the procedures marked with a “D” could result in component failure a nd lead to serious injury or death. Have an...
  • Page 83 D Drive clutch bolt 25 H See your dealer to have re-torque bolt re-torqued to 96 ft-lbs (130 Nm) Perform these procedures more often for vehicles subjected to severe use. D Have an authorized POLARIS dealer or other qualified person perform these services.
  • Page 84 Spark plugs 100 H 12 M 1000 (1600) Inspect; replace as needed, torque to specification Perform these procedures more often for vehicles subjected to severe use. D Have an authorized POLARIS dealer or other qualified person perform these services.
  • Page 85 Replace coolant D Toe adjustment Inspect periodically; adjust when parts are replaced Headlight aim Adjust as needed Perform these procedures more often for vehicles subjected to severe use. D Have an authorized POLARIS dealer or other qualified person perform these services.
  • Page 86 MAINTENANCE Lubrication Recommendations Check and lubricate all components at the intervals outlined in the Periodic Maintenance Chart beginning on page 79, or more often under severe use, such as wet or dusty conditions. Items not listed in the chart should be lubricated at the general lubrication interval. Item Lube Method...
  • Page 87 MAINTENANCE Lubrication Recommendations Front Suspension (viewed from rear) Front Control Arm Pivot Bushings (3 per side) Stabilizer Bar Bushings (one on each side of vehicle)
  • Page 88 10W-50 4-Cycle Oil (-18 C to +49 Oil may need to be changed more frequently if POLARIS oil is not used. Do not use automotive oil. Follow the manufacturer's recommendations for ambient temperature operation. See page 132 for the part numbers of POLARIS products.
  • Page 89 MAINTENANCE Engine Oil Always check and change the oil at the intervals outlined in the Periodic Maintenance Chart beginning on page 79. Always use the recommended engine oil. Oil Check Always check the oil when the engine is cold. If the engine is hot when the oil is checked, the level will appear to be overfull.
  • Page 90 MAINTENANCE Engine Oil Oil and Filter Change Always change the oil and filter at the intervals outlined in the Periodic Maintenance Chart beginning on page 79. Always change the oil filter whenever changing oil. Access the oil check dipstick through the right rear wheel well. Access the oil fill cap through the service access panel on the floor of the cargo box.
  • Page 91 MAINTENANCE Engine Oil Oil and Filter Change 6. Lubricate the o-ring on the new filter with a film of fresh engine oil. Check to make sure the o-ring is in good condition. 7. Install the new filter and turn by hand until the filter gasket contacts the sealing surface, then turn an additional 1/2 turn.
  • Page 92 MAINTENANCE Transmission (Main Gearcase) Always check and change the fluid at the intervals outlined in the Periodic Maintenance Chart beginning on page 79. Refer to the Gearcase Specifications Chart on page 94 for recommended lubricants, capacities and torque specifications. Fluid Check The fill plug is located on the rear of the gearcase.
  • Page 93 MAINTENANCE Transmission (Main Gearcase) Fluid Change The drain plug is located on the bottom of the gearcase. Access the drain plug through the drain hole in the skid plate. 1. Remove the fill plug. 2. Place a drain pan under the drain plug. 3.
  • Page 94 MAINTENANCE Demand Drive Unit (Front Gearcase) Always check and change the fluid at the intervals outlined in the Periodic Maintenance Chart beginning on page 79. Refer to the Gearcase Specifications Chart on page 94 for recommended lubricants, capacities and torque specifications. Fluid Check The fill plug is located on the bottom right side of the...
  • Page 95 MAINTENANCE Demand Drive Unit (Front Gearcase) Fluid Change The drain plug is located on the bottom of the gearcase. 1. Remove the fill plug. 2. Place a drain pan under the drain plug. 3. Remove the drain plug. Allow the fluid to drain completely. 4.
  • Page 96 MAINTENANCE Gearcases Gearcase Specification Chart Use of other fluids may result in improper operation of components. See page 132 for the part numbers of POLARIS products. Gearcase Lubricant Capacity Fill Plug Drain Plug Torque Torque Transmission AGL Gearcase 44 oz.
  • Page 97 MAINTENANCE Spark Plugs Spark Plug Removal and Replacement 1. Remove the cargo box access panel. 2. Clean the area around the spark plugs before removing the plugs. 3. Remove the spark plug caps. 4. Using the spark plug wrench provided in the tool kit, remove the plugs by rotating them counter-clockwise.
  • Page 98 MAINTENANCE Fuse/Relay Center If the engine stops or will not start, if the power steering stops working (if equipped), or if you experience other electrical failures, a fuse may need replacement. Locate and correct any short circuits that may have caused the blown fuse, then replace the fuse.
  • Page 99 POLARIS recommends the use of POLARIS Antifreeze 50/50 Premix. This antifreeze is already premixed and ready to use. Do not dilute with water. See page 132 for the part numbers of POLARIS products. To ensure that the coolant maintains its ability to protect the engine, we recommend that the system be completely drained every five (5) years and fresh Antifreeze 50/50 Premix added.
  • Page 100 MAINTENANCE Cooling System Radiator and Cooling Fan Always check and clean the screen and radiator fins at the intervals outlined in the Periodic Maintenance Chart beginning on page 79. Do not obstruct or deflect air flow through the radiator by installing unauthorized accessories in front of the radiator or behind the cooling fan.
  • Page 101 6. Reinstall the pressure cap. Tip: Use of a non-standard pressure cap will not allow the recovery system to function properly. Your POLARIS dealer can provide the correct replacement part. Bleed Screw...
  • Page 102 5. Reinstall the cap. Tip: If coolant must be added often, or if the overflow bottle runs completely dry, there may be a leak in the system. Your POLARIS dealer can inspect the cooling system.
  • Page 103 • See your dealer as recommended in the owner’s manual and on safety labels. • This PVT system is intended for use on POLARIS products only. Do not install it in any other product. • Always make sure the PVT housing is securely in place during operation.
  • Page 104 MAINTENANCE POLARIS Variable Transmission (PVT) System Belt Replacement/Debris Removal If a belt fails, always clean any debris from the duct and from the clutch and engine compartments when replacing the belt. WARNING! Failure to remove ALL debris when replacing the belt could result in vehicle damage, loss of control and severe injury or death.
  • Page 105 6. Allow the engine RPM to settle to idle speed. Apply the brakes. Shift the transmission to the lowest available range. 7. Test for belt slippage. If the belt slips, repeat the process. 8. Your vehicle requires service as soon as possible. Your POLARIS dealer can assist.
  • Page 106 MAINTENANCE Filter Systems Intake Pre-Filters The engine intake pre-filter is located on the right side of the vehicle. The clutch air intake is located on the left side of the vehicle. Inspect the engine pre-filter before each use of the vehicle to ensure adequate air flow.
  • Page 107 7. Reinstall the air filter (if clean) or install a new air filter (if soiled). Do not attempt to clean the air filter. NOTICE: Use of a non-POLARIS-approved air filter may cause engine damage. Always use a POLARIS-approved replacement filter.
  • Page 108 MAINTENANCE Spark Arrester WARNING Failure to heed the following warnings while servicing the spark arrester could result in serious injury or death. • Do not perform clean-out immediately after the engine has been run, as the exhaust system becomes very hot. Serious burns could result from contact with the exhaust components.
  • Page 109 MAINTENANCE Spark Arrester Periodically clean the spark arrester to remove accumulated carbon. A plugged spark arrester will affect engine performance. Clean daily when driving in mud and water. Replace a cracked or damaged arrester before operating. 1. Remove the arrester retaining bolt and nut. 2.
  • Page 110 MAINTENANCE Brakes The front and rear brakes are hydraulic disc type brakes activated by the brake pedal. See page 37. Always check brake pedal travel and the brake fluid reservoir level before each use of the vehicle. When applied, the brake pedal should feel firm.
  • Page 111 MAINTENANCE Brakes Brake Inspection 1. Check the brake system for fluid leaks. 2. Check the brake pedal for excessive travel or a spongy feel. 3. Check the friction pads for wear, damage and looseness. 4. Check brake discs for signs of cracks, excessive corrosion, warping or other 0.030”...
  • Page 112 Inspect the level of the brake fluid before each operation. If the fluid level is low add DOT 4 brake fluid only. See page 132 for the part numbers of POLARIS products. WARNING! After opening a bottle of brake fluid, always discard any unused portion.
  • Page 113 MAINTENANCE Suspension Settings Front/Rear Spring Preload The factory setting is appropriate for nearly all riding conditions. If desired, the suspension may be adjusted to maintain vehicle clearance height when carrying loads. HARD SOFT Front Shock Preload Rear Shock Preload Measurement Measurement Factory Preload Settings Model...
  • Page 114 MAINTENANCE Suspension Settings Front/Rear Spring Preload Walker Evans Shock Preload Adjustment Follow these guidelines if you make adjustments to this suspension. • Always return the suspension to the factory setting after the load is removed from the vehicle. The increased suspension height will negatively impact vehicle stability when operating without a load.
  • Page 115 WARNING! Uneven adjustment may cause poor handling of the vehicle, which could result in an accident. Always adjust both the left and right spring preloads equally or have your POLARIS dealer perform the adjustments. Adjusting Ring...
  • Page 116 MAINTENANCE Suspension Settings Front/Rear Shock Compression The compression damping clicker knob is located at the top of the shock reservoir. When the knob is turned clockwise until it stops, the damping is in the fully closed position. When turned counter-clockwise until it stops, the damping is in the fully open position.
  • Page 117 Improper tire inflation or the use of non-standard size or type of tires may adversely affect vehicle handling, which could result in vehicle damage or personal injury. Always maintain proper tire pressure. Always use POLARIS- approved size and type of tires for this vehicle when replacing tires.
  • Page 118 Always ensure that all nuts are torqued to specification. Do not service axle nuts that have a cotter pin installed. Your POLARIS dealer can assist. Valve Stem 3. Attach the wheel nuts and washers and finger tighten.
  • Page 119 MAINTENANCE Lights Headlight and taillight lenses become dirty during normal operation. Clean all lights frequently to ensure a clear field of vision as well as visibility to other vehicles. Tip: If an LED headlamp has moisture or fogging inside, disconnect the wiring harness from the headlamp(s) for a few days to allow the moisture to clear out.
  • Page 120 MAINTENANCE Lights Headlight Beam Adjustment The headlight beam can be adjusted slightly upward or downward and to the left or right. 1. Position the vehicle on a level surface. The headlight should be approximately 25 ft. (7.6 m) from a wall. 25 ft.
  • Page 121 8. Take the vehicle in for service as soon as possible, whether you succeed in starting it or not. Your POLARIS dealer can provide the required service. 9. If water has been ingested into the PVT follow the procedure on page 103 for drying.
  • Page 122 MAINTENANCE Battery WARNING Improperly connecting or disconnecting battery cables can result in an explosion and cause serious injury or death. When removing the battery, always disconnect the negative (black) cable first. When reinstalling the battery, always connect the negative (black) cable last. Your vehicle has a maintenance-free battery.
  • Page 123 Whenever the vehicle is not used for a period of three months or more, recharge the battery about once a month to make up for normal self- discharge (see page 122), or use a POLARIS Battery Tender, which can be left connected during the storage period. Battery Tender will automatically charge the battery if voltage drops below a pre- determined point.
  • Page 124 MAINTENANCE Battery Battery Charging The following battery charging instructions apply only to the installation of a maintenance-free battery. Read all instructions before proceeding with the installation of this battery. The maintenance-free battery is already filled with electrolyte and has been fully charged at the factory. Never pry the battery caps off or add any other fluid to this battery.
  • Page 125 MAINTENANCE Battery Battery Charging Always verify battery condition before and 1-2 hours after the end of charging. Charge Time State of Voltage Action (Using constant current Charge charger @ standard amps specified on top of battery) 100% 12.8-13.0 volts None, check at 3 None required mos.
  • Page 126 The best and safest way to clean your POLARIS vehicle is with a garden hose and a pail of mild soap and water. 1. Use a professional-type washing cloth, cleaning the upper body first and the lower parts last.
  • Page 127 • Labels and decals • Electrical components and wiring • Air intake components If warning and safety labels are damaged, contact your POLARIS dealer for free replacement. Grease all zerk fittings immediately after washing. Allow the engine to run for a while to evaporate any water that may have entered the engine or exhaust system.
  • Page 128 124. Stabilize the Fuel 1. Fill the fuel tank. 2. Add POLARIS Carbon Clean Fuel Treatment or POLARIS Fuel Stabilizer or equivalent fuel treatments or stabilizers. Follow the instructions on the container for the recommended amount. Carbon Clean removes water from fuel systems, stabilizes fuel and removes carbon deposits from pistons, rings, valves and exhaust systems.
  • Page 129 6. If POLARIS fuel system additive is not used, fuel tank, fuel lines, and injectors should be completely drained of gasoline. 7. Reinstall the spark plug caps to the spark plugs.
  • Page 130 4. Check all the points listed in the Daily Pre-Ride Inspection section on page 50. Tightness of the bolts, nuts and other fasteners should be checked by an authorized POLARIS dealer or other qualified service facility. 5. Lubricate at the intervals outlined in the Periodic Maintenance Chart beginning on page 79.
  • Page 131 Secure or remove all cargo, and inspect the unit for loose parts prior to transport. 5. Always tie the frame of the POLARIS vehicle to the transporting unit securely with suitable straps or rope. Do not attach tie straps to the front control arm bolt pockets.

  • Page 132: Specifications

    SPECIFICATIONS RZR XP 1000 / RZR XP 4 1000 Gross Vehicle Weight RZR XP: 2200 lbs. (998 kg) RZR XP 4: 2560 lbs. (1161 kg) Dry Weight RZR XP: 1379 lbs. (625.5 kg) RZR XP 4: 1596 lbs. (724 kg) Test GVW - Rollover 2750 lbs.
  • Page 133 High Gear 10.73 12.05 Low Gear 18.77 18.79 Reverse 20.41 22.92 Front (including front drive) High Gear 11.42 12.82 Low Gear 19.98 19.98 Reverse 21.73 24.41 Drive Ratio - Front 3.182:1 3.182:1 Clutching Please see your POLARIS dealer for clutching specifications.

  • Page 134: Polaris Products

    POLARIS PRODUCTS Part Description Number Engine Lubricant 2870791 Fogging Oil (12 oz./355 ml Aerosol) 2876244 PS-4 Full Synthetic 5W-50 4-Cycle Oil (qt./.95 l) 2876245 PS-4 Full Synthetic 5W-50 4-Cycle Oil (gal./3.8 l) 2878920 PS-4 Extreme Duty Synthetic 10W-50 4-Cycle Oil (qt./.95 l) 2878919 PS-4 Extreme Duty Synthetic 10W-50 4-Cycle Oil (gal./3.8 l)

  • Page 135: Troubleshooting

    Your POLARIS dealer can assist. Poor engine performance Check for fouled plugs or foreign material in gas tank or fuel lines. Your POLARIS dealer can assist. Slippage from failure to Always warm up the belt by operating below 30 MPH (48 warm up belt km/h) for one mile (1.5 km) and for 5 miles (8 km) or...
  • Page 136 Check all connections and tighten Loose solenoid connections Check all connections and tighten Loose electronic control box connections Inspect, clean, reinstall connectors Mechanical failure Your POLARIS dealer can assist. Engine Turns Over, Fails to Start Possible Cause Solution Out of fuel Refuel Clogged fuel filter Your POLARIS dealer can assist.
  • Page 137 Solution Poor quality or low octane fuel Replace with recommended fuel Incorrect ignition timing Your POLARIS dealer can assist. Incorrect spark plug gap or heat range Set gap to specs or replace plugs Engine Runs Irregularly, Stalls or Misfires Possible Cause...
  • Page 138 Replace with new fuel Fouled or defective spark plugs Inspect, clean and/or replace spark plug Worn or defective spark plug wires Your POLARIS dealer can assist. Incorrect spark plug gap or heat range Set gap to specs or replace plug Loose ignition connections...

  • Page 139: Warranty

    Warranty Coverage And Exclusions: Limitations Of Warranties And Remedies This POLARIS limited warranty excludes any failures that are not caused by a defect in material or workmanship. THIS WARRANTY DOES NOT COVER CLAIMS OF DEFECTIVE DESIGN. This warranty also does not cover acts of God, accidental damage, normal wear and tear, abuse or improper handling.
  • Page 140 MATERIALS, COMPONENTS, OR PRODUCTS. THE REMEDIES SET FORTH IN THIS WARRANTY ARE THE ONLY REMEDIES AVAILABLE TO ANY PERSON FOR BREACH OF THIS WARRANTY. POLARIS SHALL HAVE NO LIABILITY TO ANY PERSON FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES OF ANY DESCRIPTION, WHETHER ARISING OUT OF EXPRESS OR IMPLIED WARRANTY OR ANY OTHER CONTRACT, NEGLIGENCE, OR OTHER TORT OR OTHERWISE.
  • Page 141 If you purchase from a private party: If you purchase a POLARIS product from a private party, to be kept and used outside of the country in which the product was originally purchased, all warranty coverage will be denied.
  • Page 142 Please work with your dealer to resolve any warranty issues. Should your dealer require any additional assistance, they will contact the appropriate person at POLARIS. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state or in different countries.
  • Page 143 This EPA emissions warranty period is extended for at least as long as the standard factory warranty that Polaris provides on the vehicle as a whole. The EPA emissions warranty period does not further extend if you purchase...
  • Page 144 The exclusive remedy for breach of this limited warranty shall be, at the exclusive option of POLARIS, repair or replacement of any defective materials, components or products. THE REMEDIES SET FORTH IN THIS LIMITED WARRANTY ARE THE ONLY REMEDIES AVAILABLE TO ANY PERSON FOR BREACH OF THIS WARRANTY.
  • Page 145 POLARIS also recommends POLARIS parts, however equivalent parts may be used for such service. It is a potential violation of the Clean Air Act if a part supplied by an aftermarket parts manufacturer reduces the effectiveness of the vehicle's emission controls.

  • Page 146: Maintenance Log

    MAINTENANCE LOG Use the following chart to record periodic maintenance. DATE MILES (KM) TECHNICIAN SERVICE PERFORMED / COMMENTS OR HOURS...
  • Page 147 MAINTENANCE LOG DATE MILES (KM) TECHNICIAN SERVICE PERFORMED / COMMENTS OR HOURS...

  • Page 148: Index

    INDEX Access Panel Cab Doors ..... 36 Cargo Box ....35 Cab Frame, ROPS .
  • Page 149 INDEX Electromagnetic Interference ..78 Fouled Plugs ....95 Electronic Power Steering ..27 Freeplay, Steering Wheel .
  • Page 150 Plugs, Spark ....94-95 Polaris Products ....132 Polishing the Vehicle... . 125 Power Steering.
  • Page 151 INDEX Safe Operation Practices ..51 Suspension Settings ..111-114 Safety Labels....10-13 Switches Safety Symbols .
  • Page 152 12 or who cannot comfortably reach the floor and hand holds. • On paved surfaces - pavement may seriously affect handling and control. • With non-Polaris approved accessories - they may seriously affect stability. ALWAYS: • Wear your seat belt. Vehicle rollover can cause severe injury or death.

This manual is also suitable for:

Rzr xp 4 1000 2016

Table of Contents
