Cabling the AP
Connect cables to the AP-7 as follows:
1. Plug the power cord into the power jack (the left port) and connect the unit to an AC power
outlet (100~240V, 50~60Hz).
2. If using active Ethernet, connect power to the unit from a DC injector device, such as the
Avaya 1-Port Active Ethernet DC Injector hub.
3. Attach one end of an Ethernet cable to the AP's WAN port (the center port, labeled "WAN")
and the other end to a network hub or switch.
4. Optionally, connect an RS-232 cable to the RS-232 console port (the right port, labeled
"RS-232").
Note:
You cannot install the security cover to the AP if an RS-232 cable is connected.
Note:

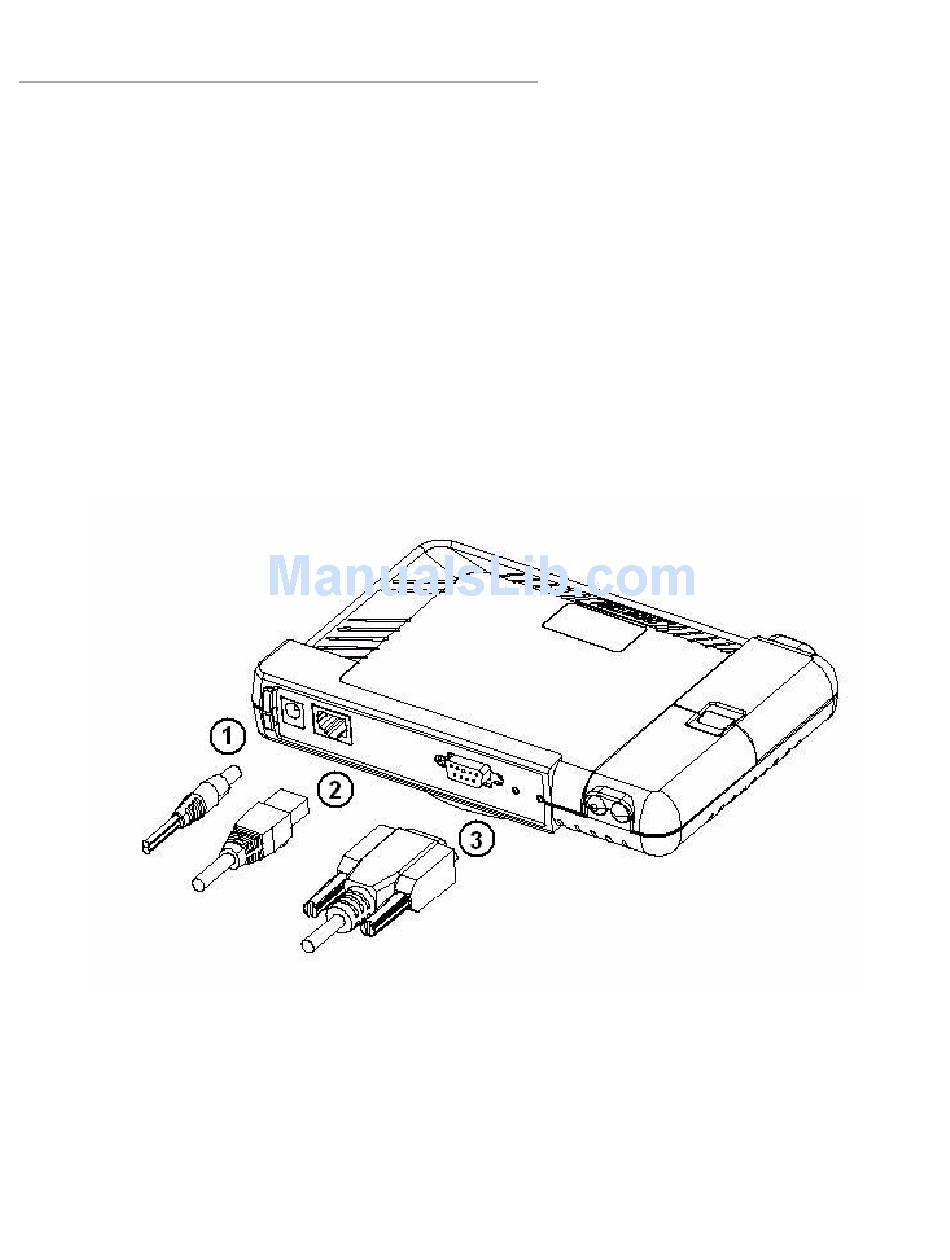

Figure 3: Cabling the AP-7
5. Verify LED Status
6. When the AP boots, it performs a series of self-tests.
7. Wait for the power LED to turn green before proceeding.
22 Avaya Wireless AP-7 User Guide
