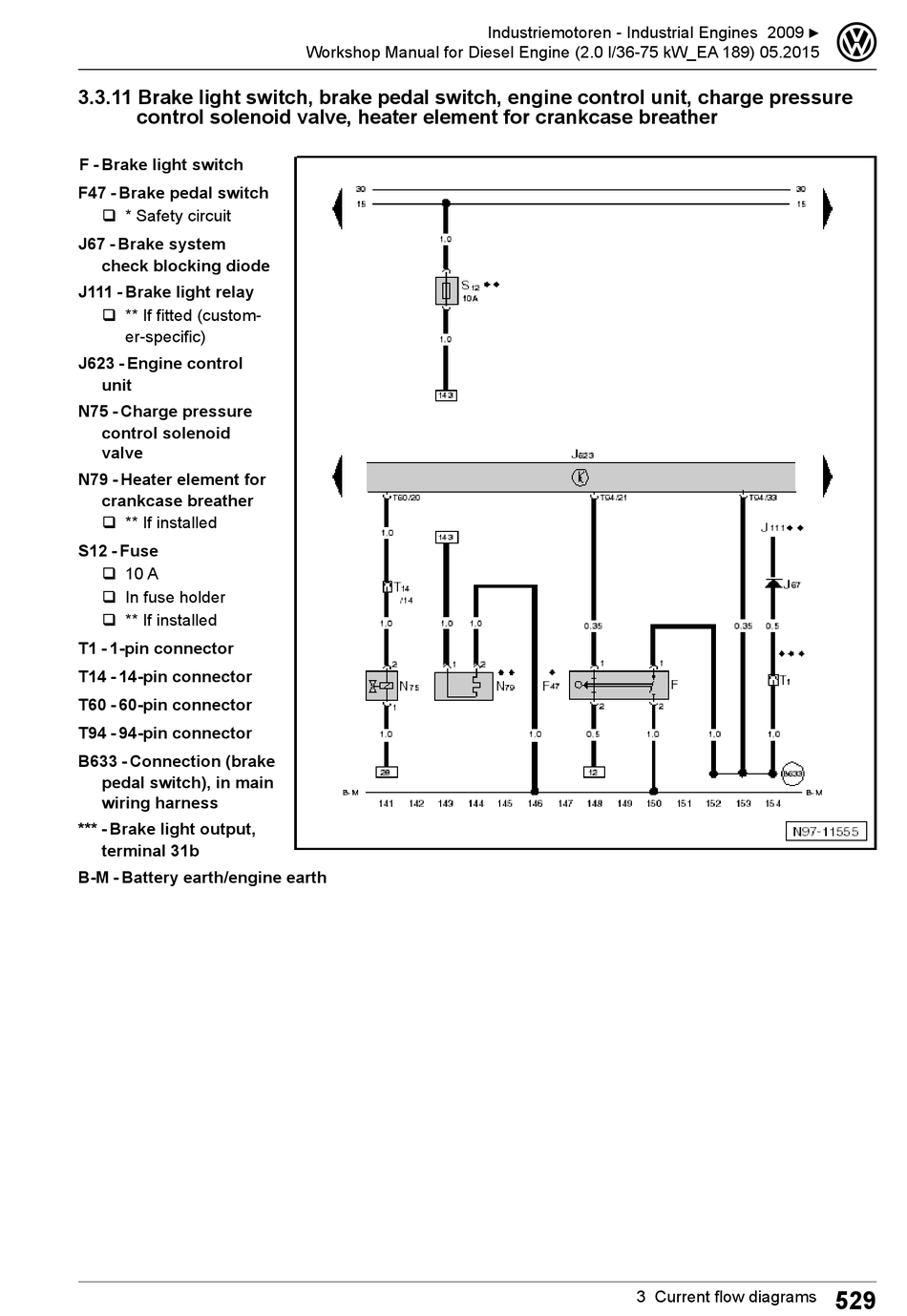

3.3.11 Brake light switch, brake pedal switch, engine control unit, charge pressure
control solenoid valve, heater element for crankcase breather
F - Brake light switch
F47 - Brake pedal switch
q * Safety circuit
J67 - Brake system
check blocking diode
J111 - Brake light relay
q ** If fitted (custom-
er-specific)
J623 - Engine control
unit
N75 - Charge pressure
control solenoid
valve
N79 - Heater element for
crankcase breather
q ** If installed
S12 - Fuse
q 10 A
q In fuse holder
q ** If installed
T1 - 1-pin connector
T14 - 14-pin connector
T60 - 60-pin connector
T94 - 94-pin connector
B633 - Connection (brake
pedal switch), in main
wiring harness
*** - Brake light output,
terminal 31b
B-M - Battery earth/engine earth
