Industriemotoren - Industrial Engines 2009 ▶
Workshop Manual for Diesel Engine (2.0 l/36-75 kW_EA 189) 05.2015

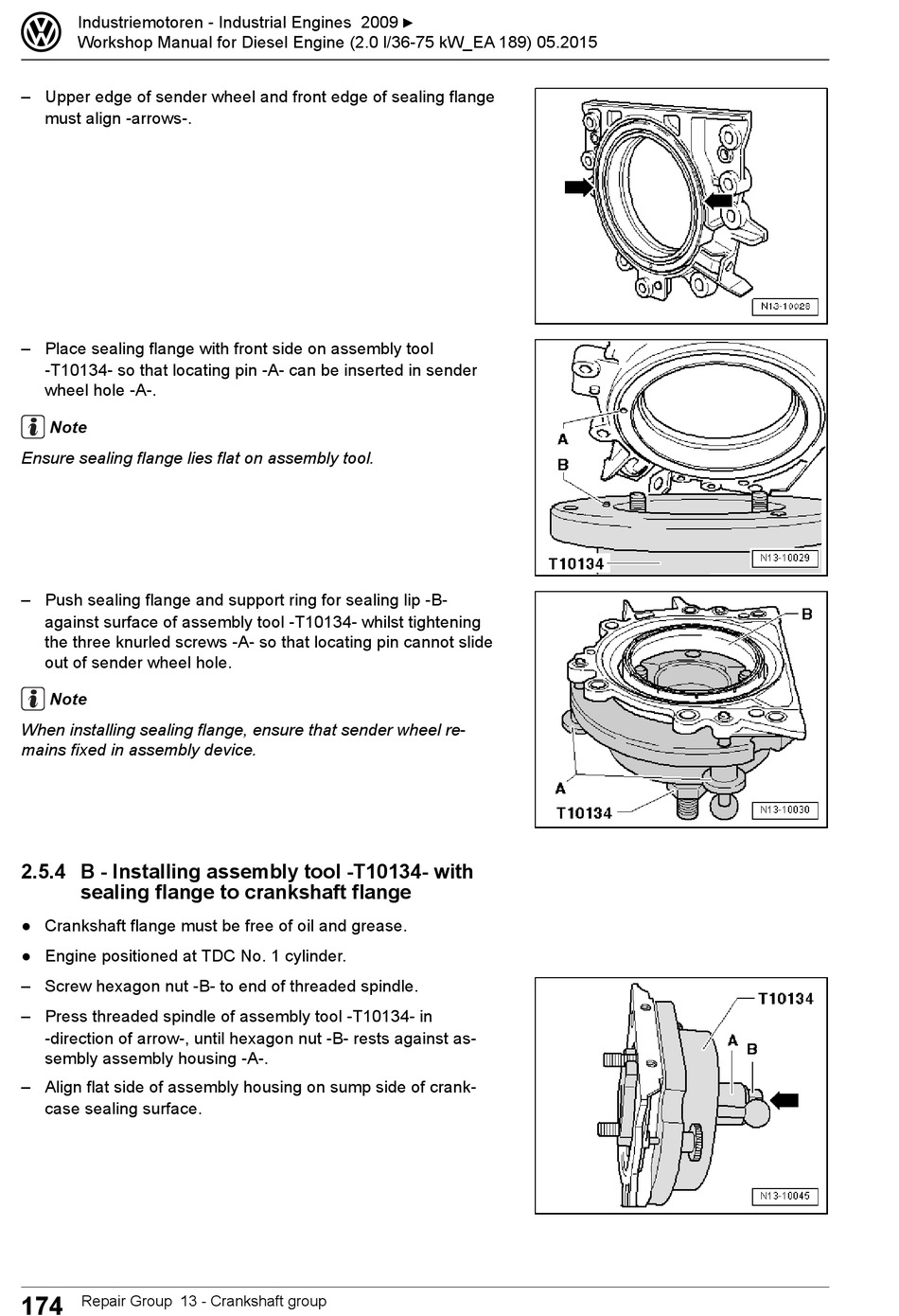

– Upper edge of sender wheel and front edge of sealing flange
must align -arrows-.
– Place sealing flange with front side on assembly tool
-T10134- so that locating pin -A- can be inserted in sender
wheel hole -A-.
Note
Ensure sealing flange lies flat on assembly tool.
– Push sealing flange and support ring for sealing lip -B-
against surface of assembly tool -T10134- whilst tightening
the three knurled screws -A- so that locating pin cannot slide
out of sender wheel hole.
Note
When installing sealing flange, ensure that sender wheel re-
mains fixed in assembly device.
2.5.4 B - Installing assembly tool -T10134- with
sealing flange to crankshaft flange
● Crankshaft flange must be free of oil and grease.
● Engine positioned at TDC No. 1 cylinder.
– Screw hexagon nut -B- to end of threaded spindle.
– Press threaded spindle of assembly tool -T10134- in
-direction of arrow-, until hexagon nut -B- rests against as-
sembly assembly housing -A-.
– Align flat side of assembly housing on sump side of crank-
case sealing surface.
174
Repair Group 13 - Crankshaft group
