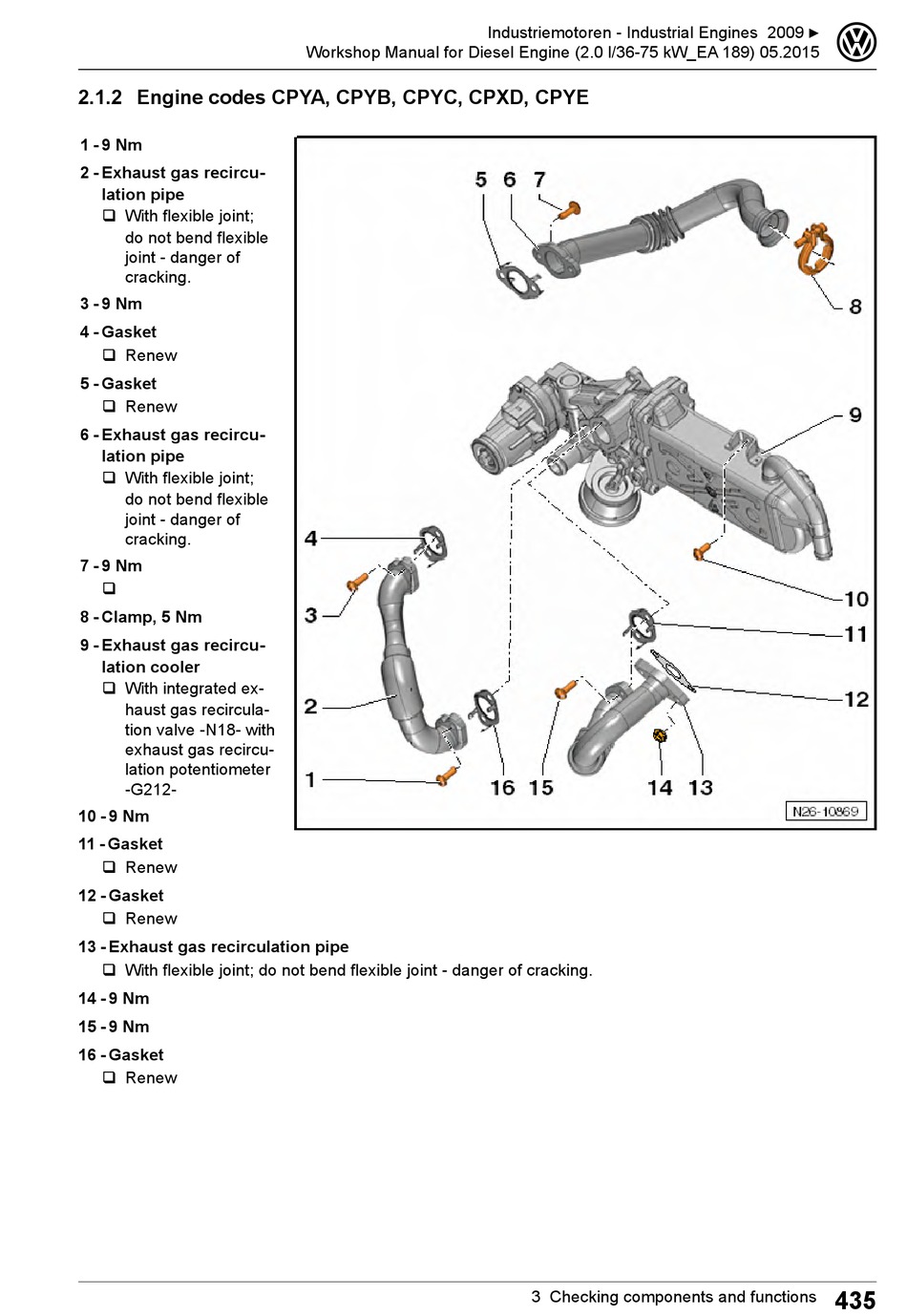

2.1.2 Engine codes CPYA, CPYB, CPYC, CPXD, CPYE
1 - 9 Nm
2 - Exhaust gas recircu-
lation pipe
q With flexible joint;
do not bend flexible
joint - danger of
cracking.
3 - 9 Nm
4 - Gasket
q Renew
5 - Gasket
q Renew
6 - Exhaust gas recircu-
lation pipe
q With flexible joint;
do not bend flexible
joint - danger of
cracking.
7 - 9 Nm
q
8 - Clamp, 5 Nm
9 - Exhaust gas recircu-
lation cooler
q With integrated ex-
haust gas recircula-
tion valve -N18- with
exhaust gas recircu-
lation potentiometer
-G212-
10 - 9 Nm
11 - Gasket
q Renew
12 - Gasket
q Renew
13 - Exhaust gas recirculation pipe
q With flexible joint; do not bend flexible joint - danger of cracking.
14 - 9 Nm
15 - 9 Nm
16 - Gasket
q Renew
