14 - Poly V-belt tensioner, if fitted
q Swing to slacken poly V-belt
15 - Sump
q Clean sealing surface before fitting.
q Install with silicone sealant D176404 A2
q Removing and installing
16 - 15 Nm

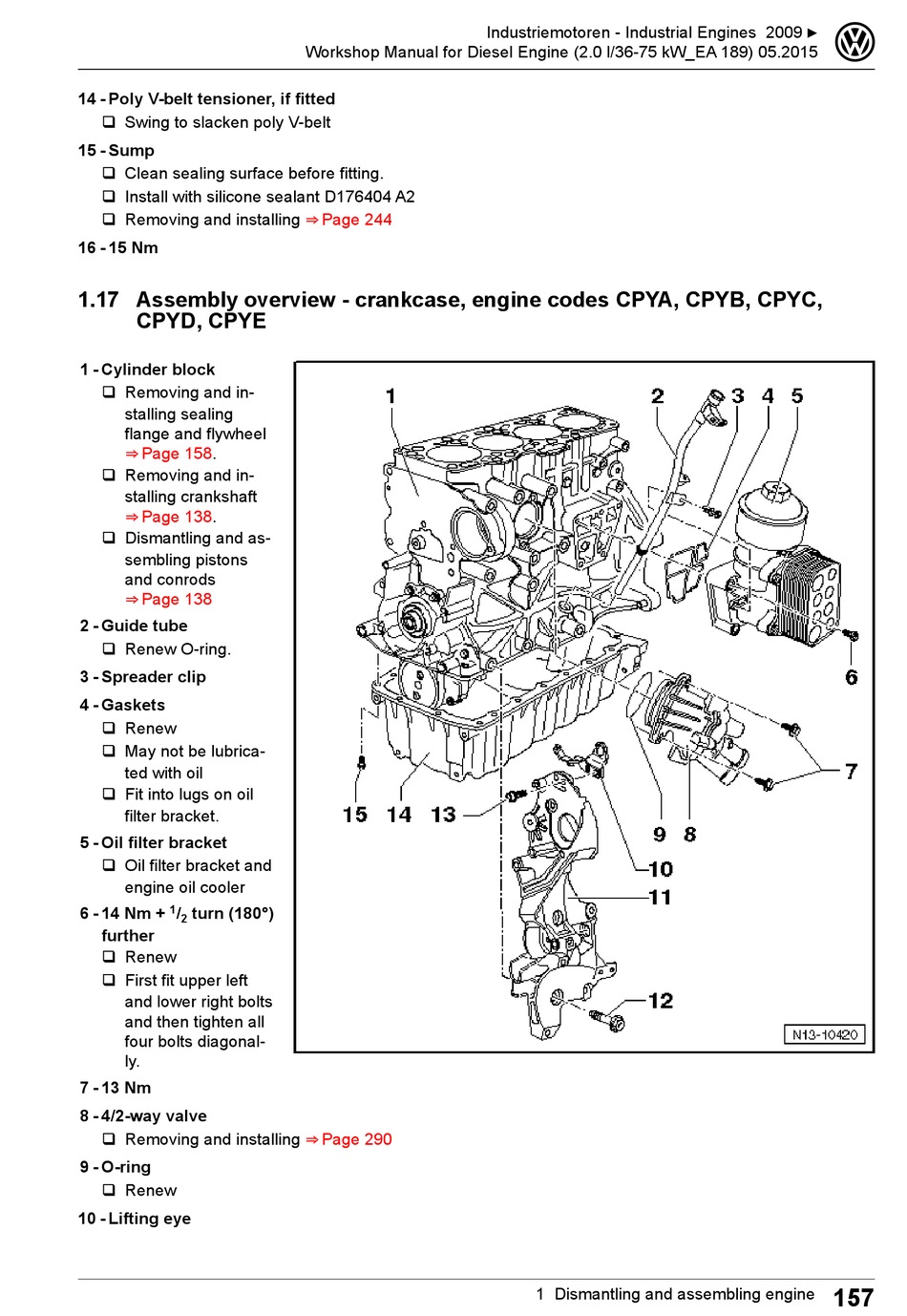

1.17 Assembly overview - crankcase, engine codes CPYA, CPYB, CPYC,
CPYD, CPYE
1 - Cylinder block
q Removing and in-
stalling sealing
flange and flywheel
⇒ P age
158.
q Removing and in-
stalling crankshaft
⇒ P age
138.
q Dismantling and as-
sembling pistons
and conrods
⇒ P age 138
2 - Guide tube
q Renew O-ring.
3 - Spreader clip
4 - Gaskets
q Renew
q May not be lubrica-
ted with oil
q Fit into lugs on oil
filter bracket.
5 - Oil filter bracket
q Oil filter bracket and
engine oil cooler
1
6 - 14 Nm + / turn (180°)
2
further
q Renew
q First fit upper left
and lower right bolts
and then tighten all
four bolts diagonal-
ly.
7 - 13 Nm
8 - 4/2-way valve
q Removing and installing
9 - O-ring
q Renew
10 - Lifting eye
Workshop Manual for Diesel Engine (2.0 l/36-75 kW_EA 189) 05.2015
⇒ P age 244
⇒ P age 290
