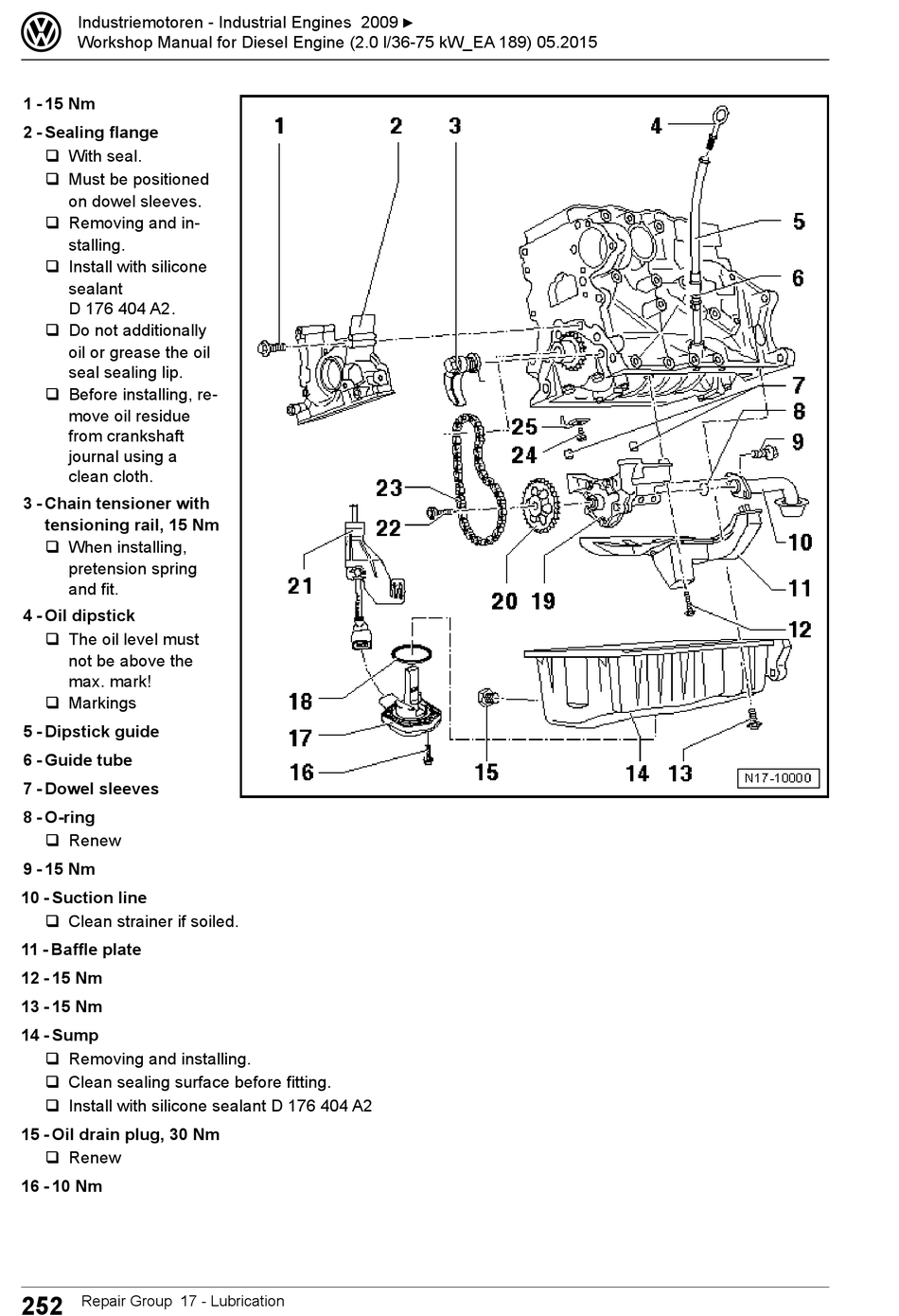

Industriemotoren - Industrial Engines 2009 ▶
Workshop Manual for Diesel Engine (2.0 l/36-75 kW_EA 189) 05.2015
1 - 15 Nm
2 - Sealing flange
q With seal.
q Must be positioned
on dowel sleeves.
q Removing and in-
stalling.
q Install with silicone
sealant
D 176 404 A2.
q Do not additionally
oil or grease the oil
seal sealing lip.
q Before installing, re-
move oil residue
from crankshaft
journal using a
clean cloth.
3 - Chain tensioner with
tensioning rail, 15 Nm
q When installing,
pretension spring
and fit.
4 - Oil dipstick
q The oil level must
not be above the
max. mark!
q Markings
5 - Dipstick guide
6 - Guide tube
7 - Dowel sleeves
8 - O-ring
q Renew
9 - 15 Nm
10 - Suction line
q Clean strainer if soiled.
11 - Baffle plate
12 - 15 Nm
13 - 15 Nm
14 - Sump
q Removing and installing.
q Clean sealing surface before fitting.
q Install with silicone sealant D 176 404 A2
15 - Oil drain plug, 30 Nm
q Renew
16 - 10 Nm
252
Repair Group 17 - Lubrication
