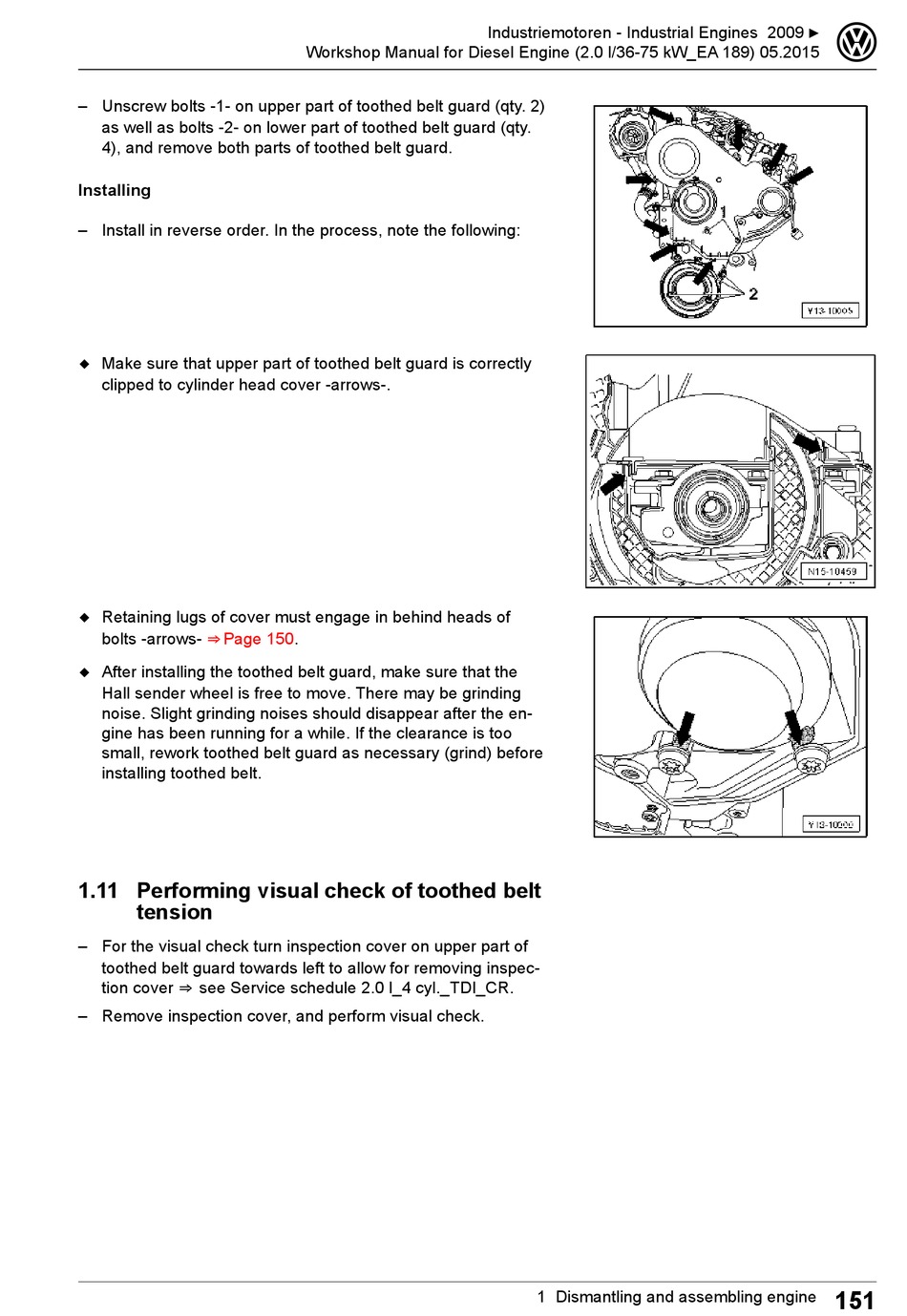

– Unscrew bolts -1- on upper part of toothed belt guard (qty. 2)
as well as bolts -2- on lower part of toothed belt guard (qty.
4), and remove both parts of toothed belt guard.
Installing
– Install in reverse order. In the process, note the following:
◆ Make sure that upper part of toothed belt guard is correctly
clipped to cylinder head cover -arrows-.
◆ Retaining lugs of cover must engage in behind heads of
⇒ P age
bolts -arrows-
◆ After installing the toothed belt guard, make sure that the
Hall sender wheel is free to move. There may be grinding
noise. Slight grinding noises should disappear after the en-
gine has been running for a while. If the clearance is too
small, rework toothed belt guard as necessary (grind) before
installing toothed belt.
1.11 Performing visual check of toothed belt
tension
– For the visual check turn inspection cover on upper part of
toothed belt guard towards left to allow for removing inspec-
tion cover ⇒ see Service schedule 2.0 l_4 cyl._TDI_CR.
– Remove inspection cover, and perform visual check.
