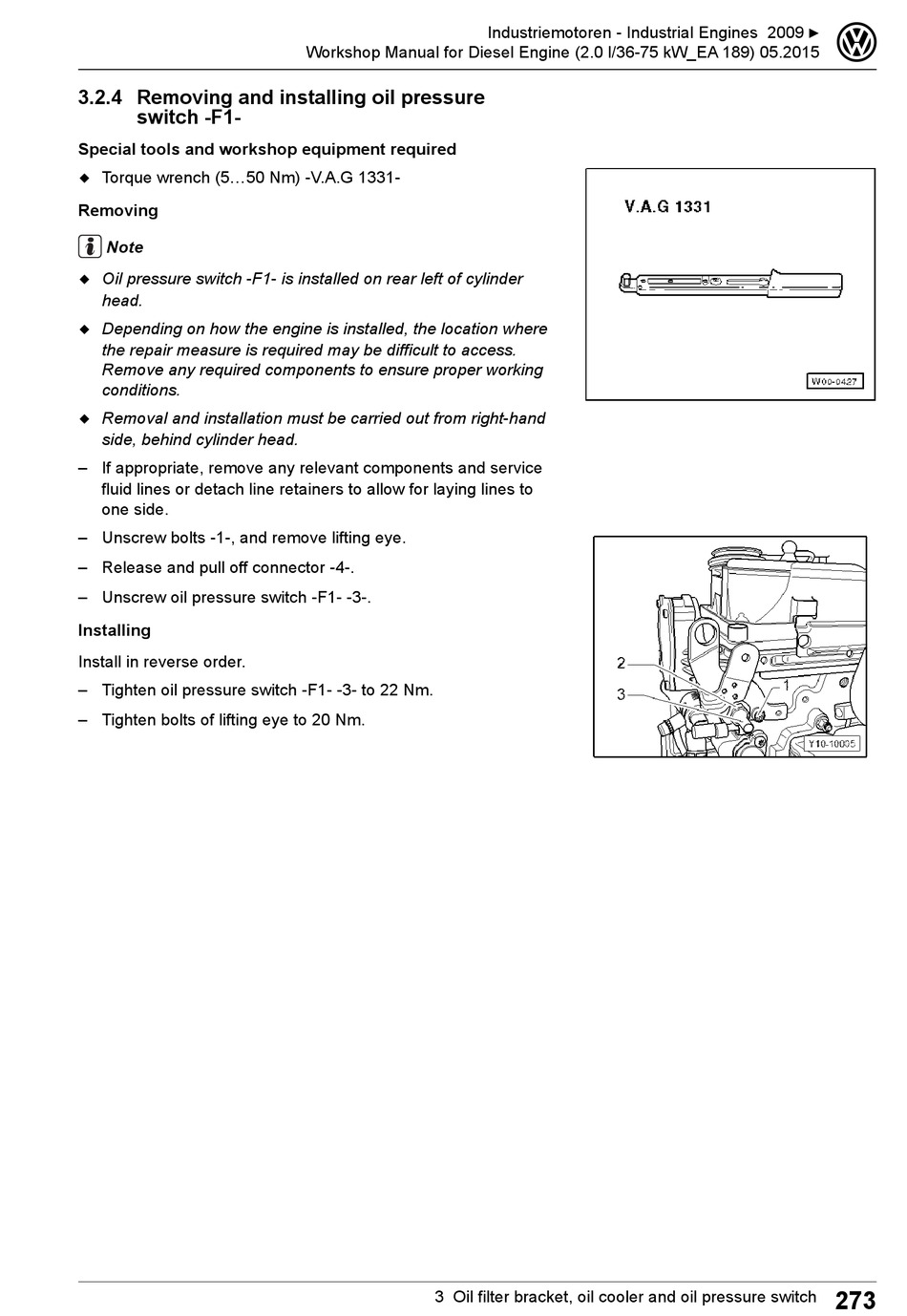

3.2.4 Removing and installing oil pressure
switch -F1-
Special tools and workshop equipment required
◆ Torque wrench (5...50 Nm) -V.A.G 1331-
Removing
Note
◆ Oil pressure switch -F1- is installed on rear left of cylinder
head.
◆ Depending on how the engine is installed, the location where
the repair measure is required may be difficult to access.
Remove any required components to ensure proper working
conditions.
◆ Removal and installation must be carried out from right-hand
side, behind cylinder head.
– If appropriate, remove any relevant components and service
fluid lines or detach line retainers to allow for laying lines to
one side.
– Unscrew bolts -1-, and remove lifting eye.
– Release and pull off connector -4-.
– Unscrew oil pressure switch -F1- -3-.
Installing
Install in reverse order.
– Tighten oil pressure switch -F1- -3- to 22 Nm.
– Tighten bolts of lifting eye to 20 Nm.
