Installing the Upper Tower Mounts

The upper tower mounts don't fit in the tower sockets without being a bit clever in the
installation process.

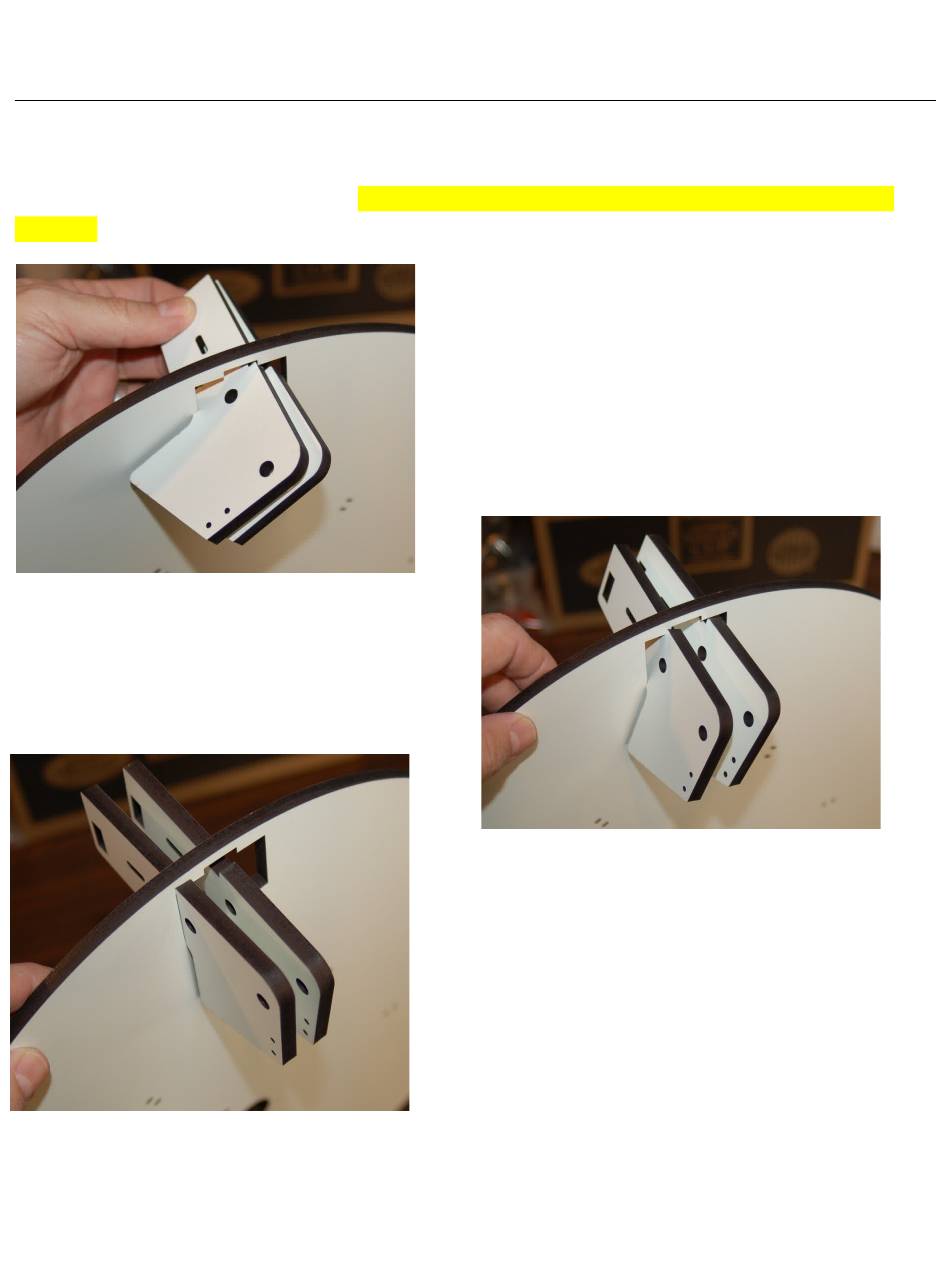

Take two upper tower mounts (make sure the one on your left has a tower depth stop screw
installed!) and set them into the tower socket as shown in Fig. 7-2.
Fig. 7-2: Staging the tower mounts.
Now rotate the left mount until it's firmly
against the side of the notch as shown in Fig. 7-4.
Fig. 7-4: Left mount in place.
Rostock MAX v2 Assembly Guide
Once you've gotten them "staged" as shown,
carefully rotate them counter-clockwise until both parts
are in the position shown in Fig. 7-3.
Fig. 7-3: Rotating the mount pair.
