Click on the tab in the Arduino IDE marked "Configuration.h". At line #701, you should see
this text: #define MOTOR_CURRENT {175,175,175,200,0}.
Change that line to this: #define MOTOR_CURRENT {155,155,155,165,0}
Save your changes and upload the updated firmware to the RAMBo, just like you did in the
prior step.

The LCD and Front Panel Controls

Let's go over what information the LCD displays and what the front panel controls do.

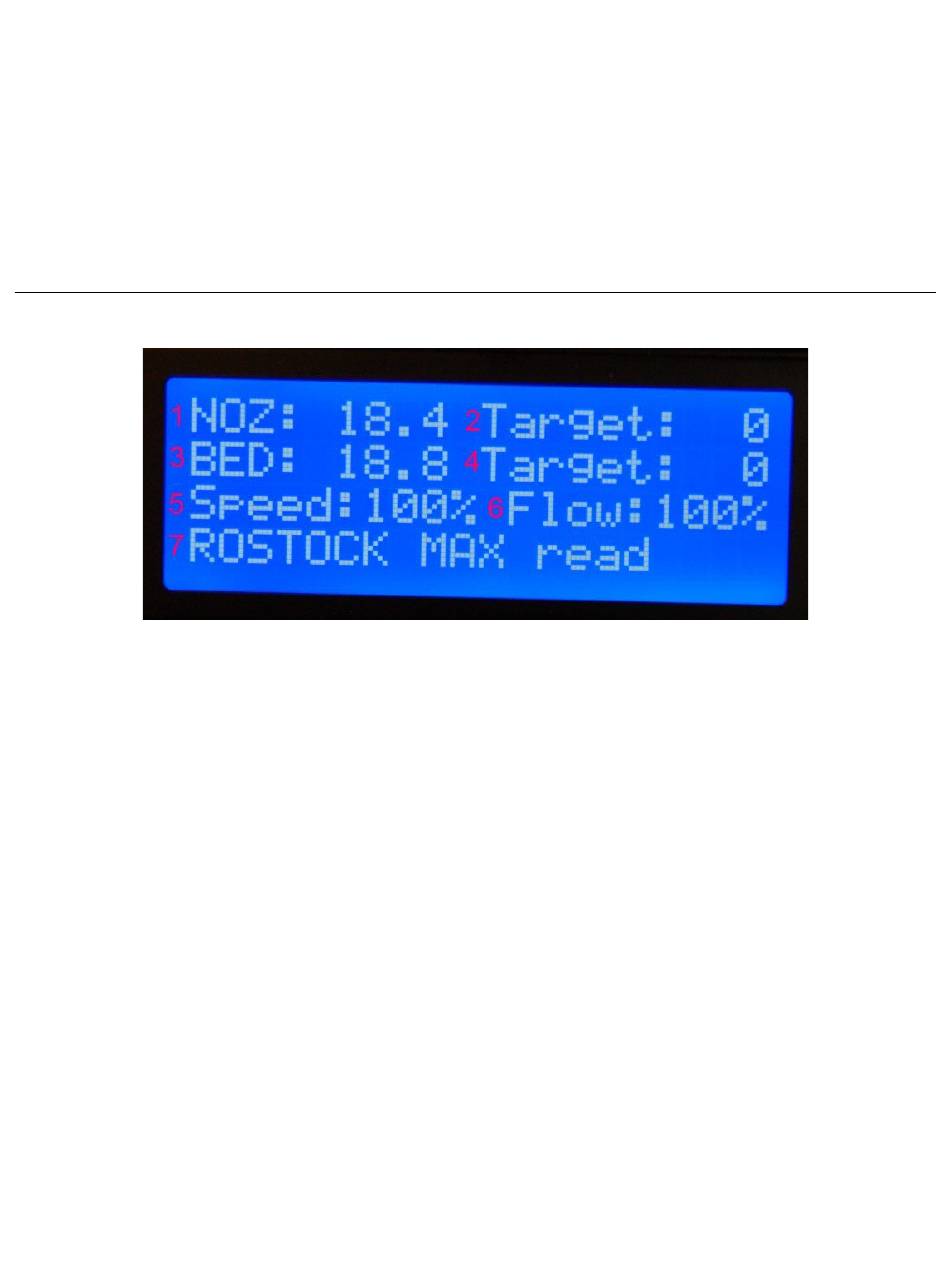

Fig. 18-10:Default LCD display.
1. Nozzle Temperature. This is the temperature at the nozzle as measured by the thermistor
that you installed when you put the hot end together. It reads in degrees Celsius – you'll
find quickly that just about everything to do with 3D printing is done in Metric units of
measure. FYI, 18.4C is 65.12F.
2. Target Nozzle Temperature. When you're printing a part, this field will show you what
temperature you've set the hot end to.
3. Bed Temperature. This is the temperature of the Onyx heated bed as measured by the
thermistor that you installed in the center of the bed. Just like the nozzle, it reads in
Celsius.
4. Target Bed Temperature. This displays the temperature that you've set the Onyx to heat
to.
5. Speed Rate. This is the speed multiplier field. Normally it will read 100%, but if you've
changed the speed control from MatterControl, this number will display what that
setting is. We'll get into this in more detail later.
6. Flow Rate. This shows the current flow rate of the extruder. This is also a field that is
controlled from MatterControl.
