SeeMeCNC Rostock MAX v2 Assembly Manual page 152

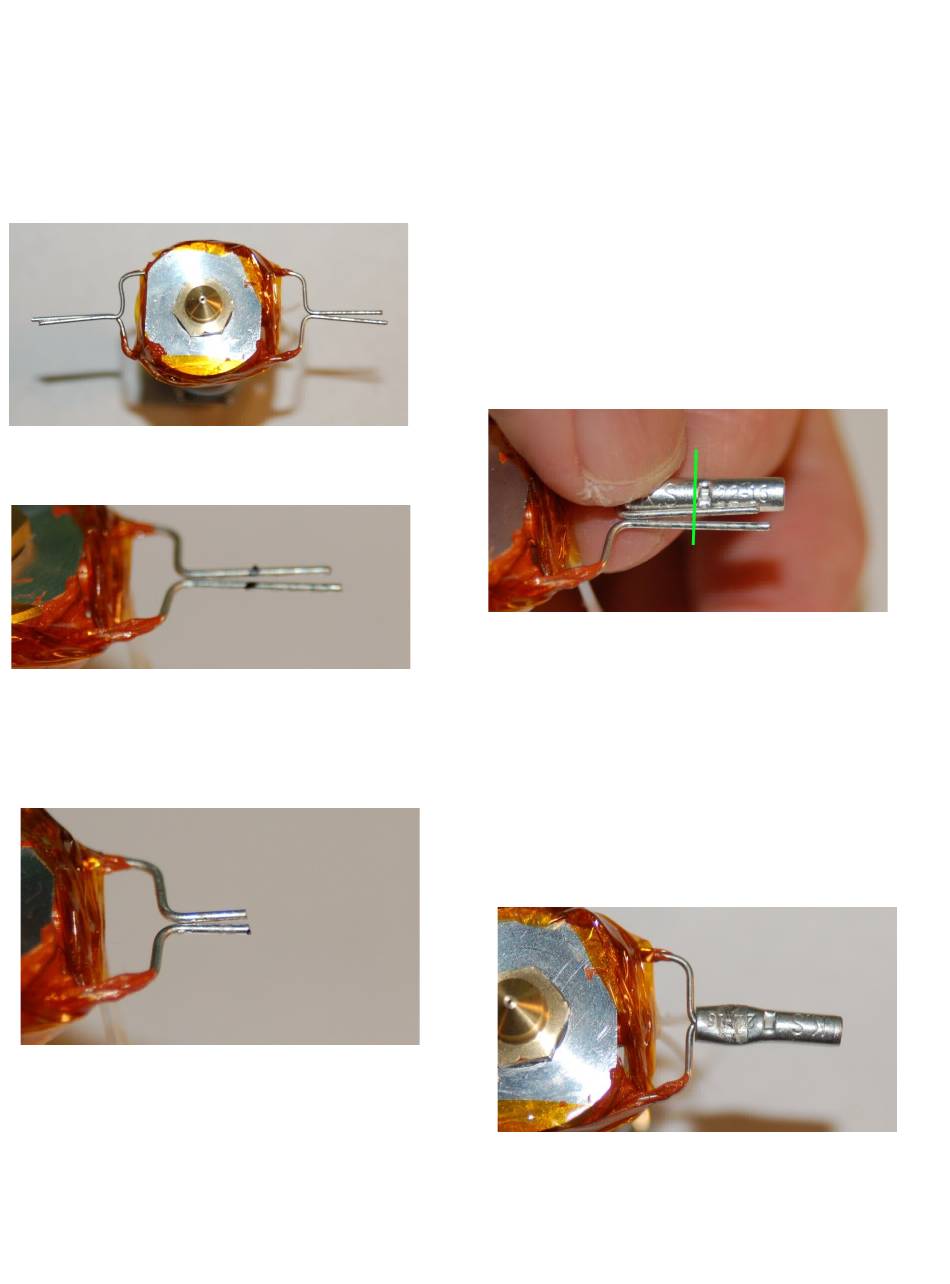

Fig. 11-10: Step #3.
Fig. 11-12: Leads marked for cutting.
Fig. 11-13: Leads trimmed.
Repeat the process for the leads on the other
side of the heater block.
Rostock MAX v2 Assembly Guide
long to used right now. In order to trim them to the
proper length, place one of the crimp connectors
along side the wires and mark the wires just behind
the center point of the crimp as shown below. Trim
the leads off at that mark.
Fig. 11-11: Marking the trim point.
freshly trimmed leads as shown.
Fig. 11-14: Crimp installed.
The resistor leads on the hot end are too
Finally, attach the crimp on connector to the
152
