SeeMeCNC Rostock MAX v2 Assembly Manual page 50

RAMBo support panel legs to the front of the base.

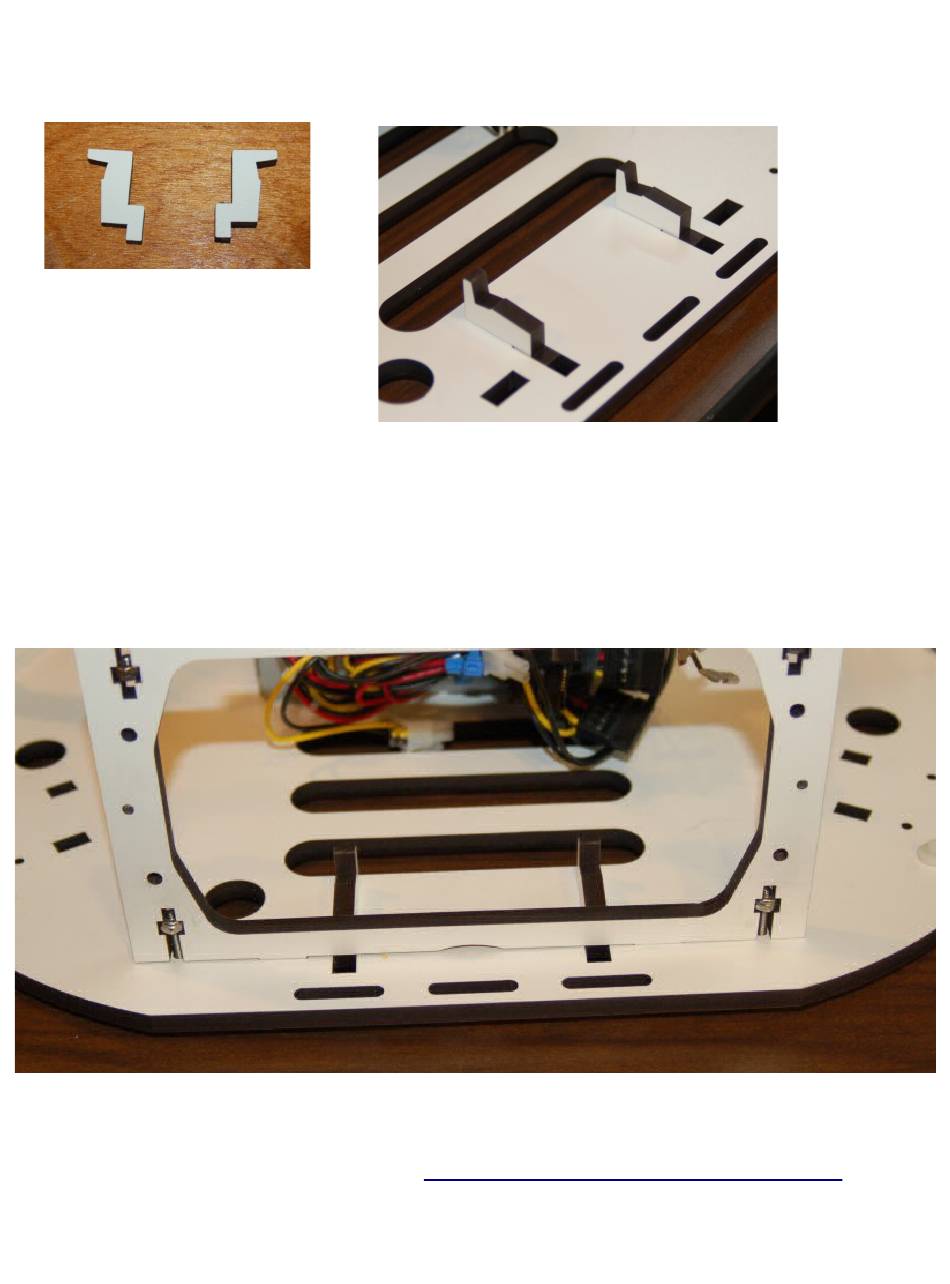

Fig. 4-23: Support Legs.
The support legs just rest in place – they're held firmly when the support plate is installed over
the top of them.
Use two #6-32, 1" Stainless Steel pan head screws to attach the front vertical support over the
two RAMBo legs as shown below. Like the two back supports, leave this a bit loose in order to assist
with fitting the top.
Fig. 4-25: Front vertical support installed.
Checkpoint Video #1:
Rostock MAX v2 Assembly Guide
Fig. 4-24: Support legs installed.
http://youtu.be/Bdv5sja3EQk
50
