Rostock MAX v2 Assembly Guide

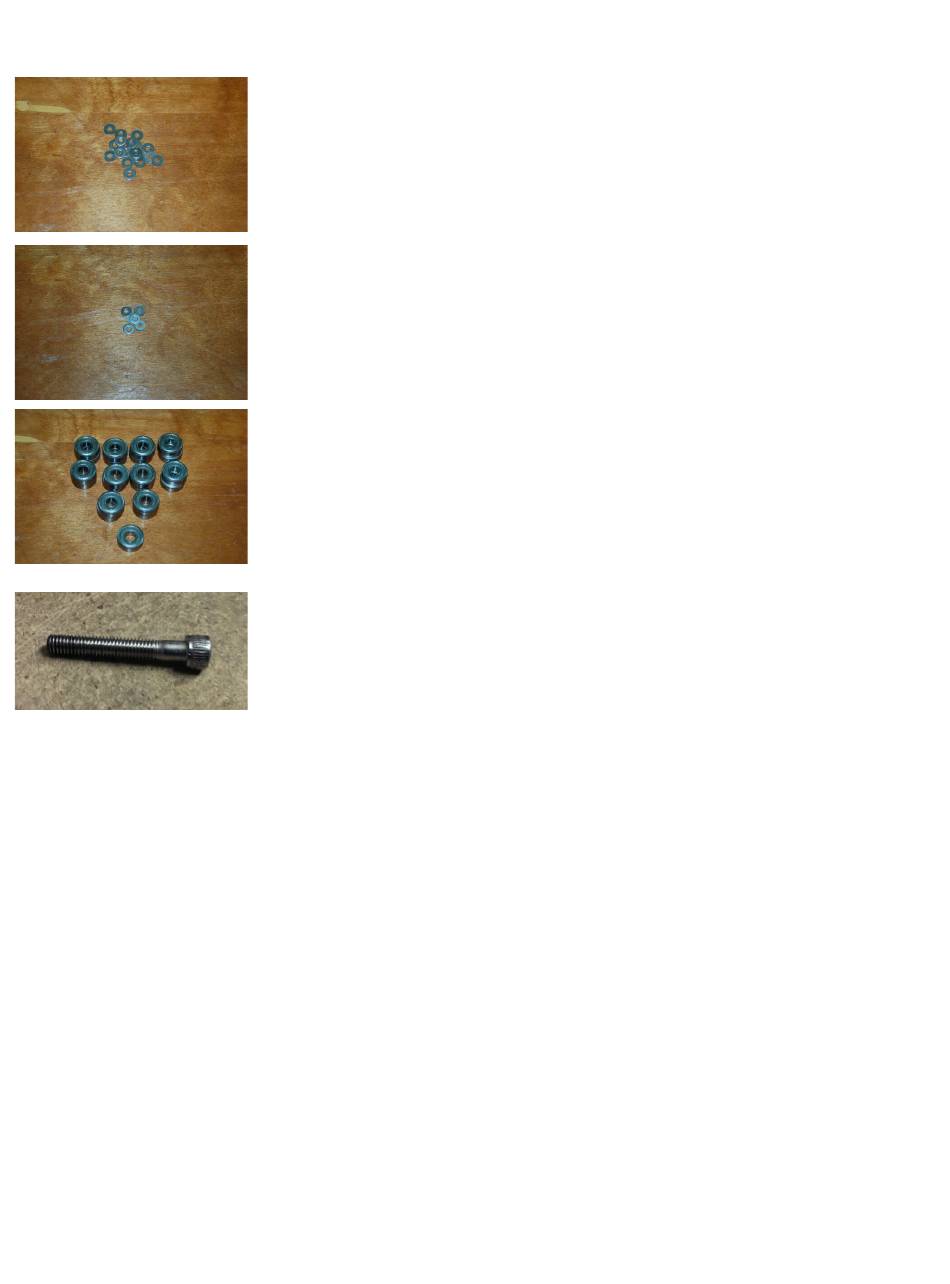

(___) (18) #6 Stainless Steel Flat washers. Used on the 608 bearings
that go in the top & bottom T-Slot rails. [30450]
(___) (6) #4 Stainless Steel Flat washers. Used with the belt clamp
screws. [30449]
(___) (21) 608ZZ Ball Bearings. Used in the Cheapskates and belt
idlers. [35065]
(___) (1) #10-32, 5/8" Socket Head Cap Screw. Used as a tap for the
#10-32 Nylon thumb screws. [29999]
17
