SeeMeCNC Rostock MAX v2 Assembly Manual page 185

Hold or tape the wires into place and flip the RAMBo controller upside down so you can reach
the solder pads on the back side of the board. Solder the leads in place.

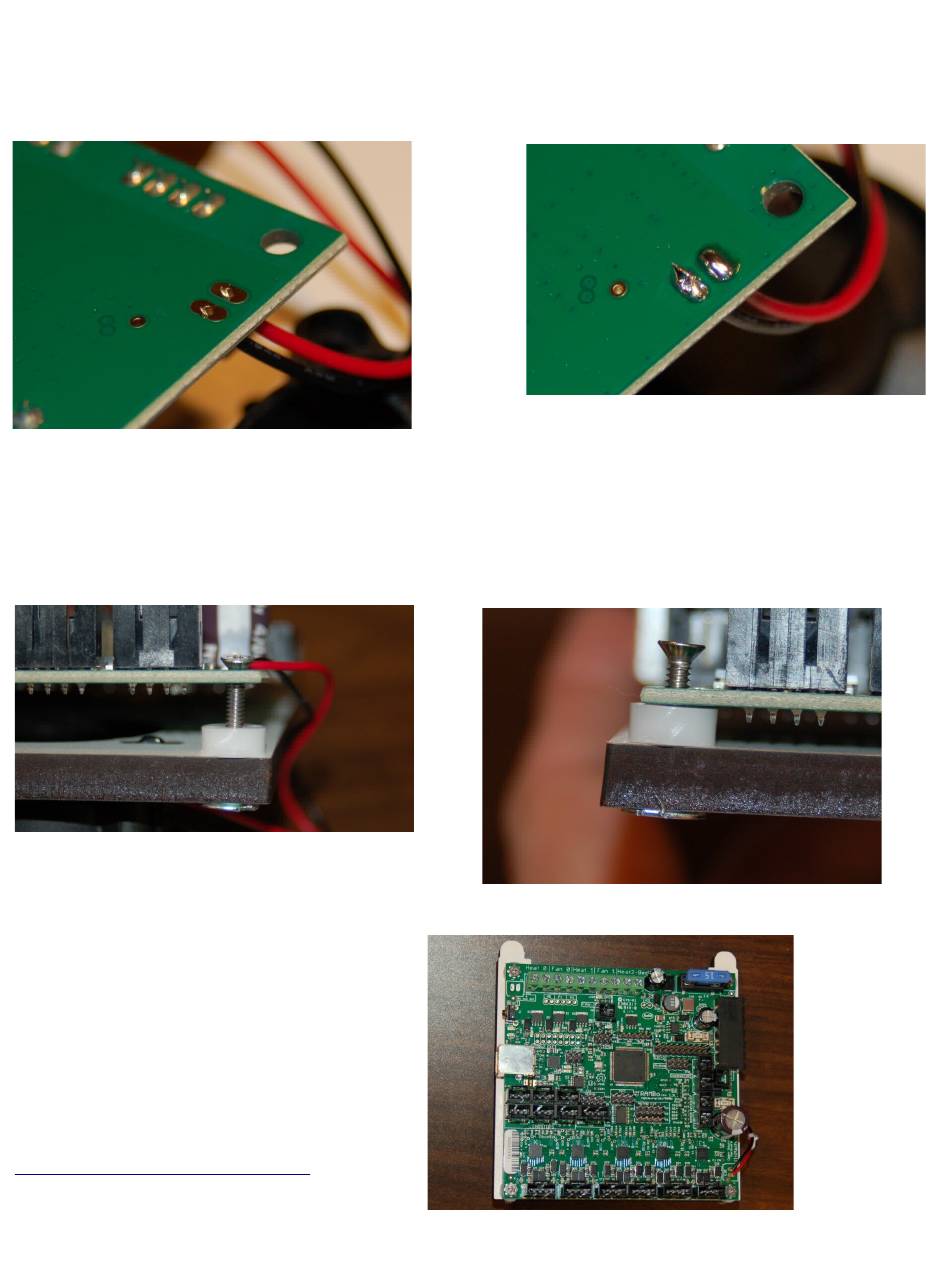

Fig. 16-8: Fan power solder pads.
Mounting the RAMBo is very straightforward. Simply set the RAMBo on top of the mount and
slide a plastic roller between the RAMBo and the mounting plate as shown in Fig. 16-10. Insert a #4-
40, 3/4" flat head screw in the hole and tighten a few turns.
Fig. 16-10: Starting the screw.
When you've got all four screws
started, go ahead and tighten them all down.
Take care to not over tighten them or you'll
damage the circuit board!
Checkpoint Video #20:
http://youtu.be/JrmqtoH2MQ4
Rostock MAX v2 Assembly Guide
Fig. 16-11: Same idea, different screw.
Fig. 16-12: Done!
Fig. 16-9: All done.
