Installing The Hot End - SeeMeCNC Rostock MAX v2 Assembly Manual

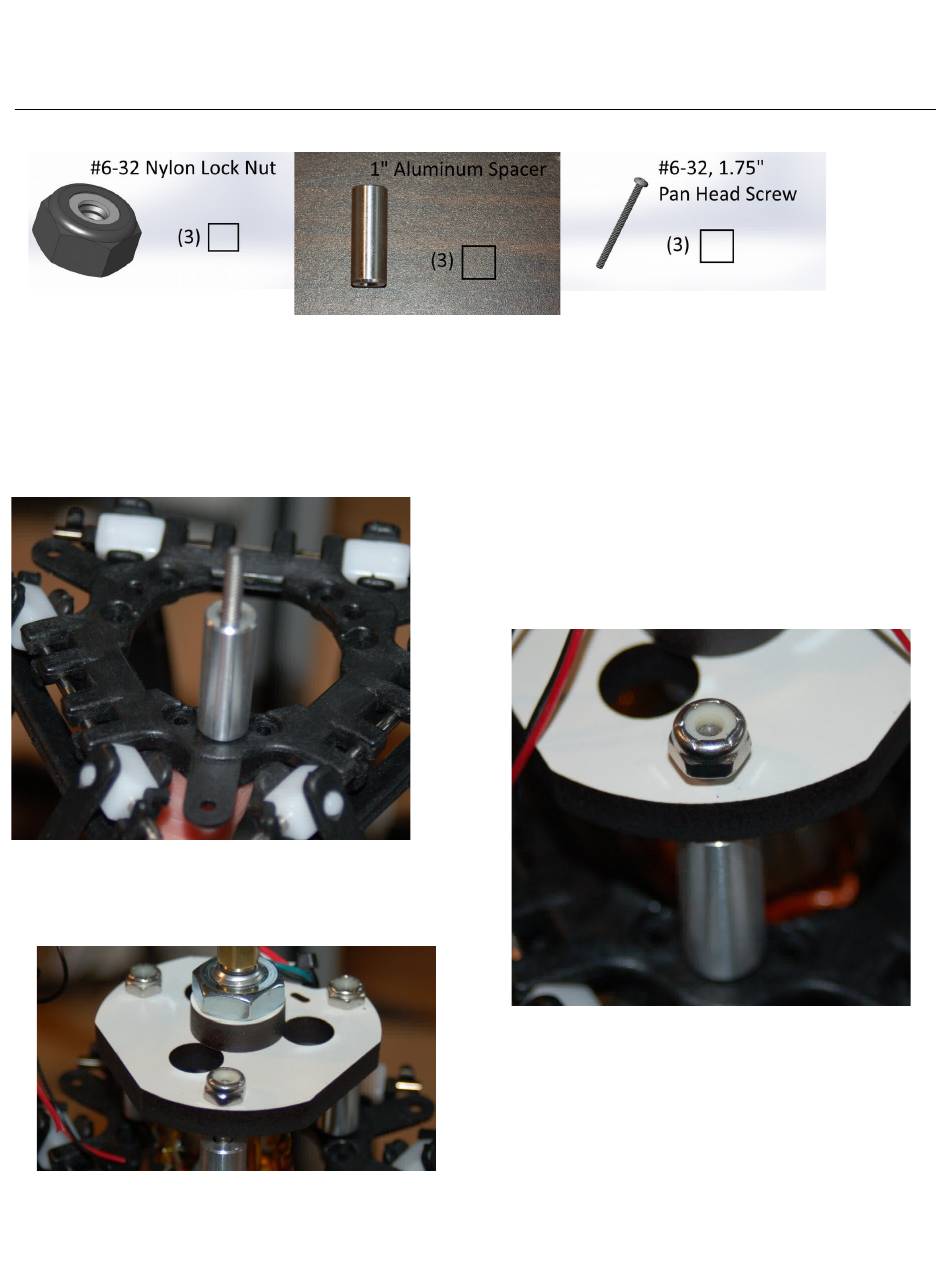

For this task you'll need the following components:
You should also have a soft cloth that you can cover the Onyx heated bed with. That way if you
accidentally drop a tool during the installation, you won't damage or scratch the bed.
Start the installation by inserting a 1.75" pan head screw through the bottom of the platform and
then slide a spacer over it as shown.
Fig. 13-1: First screw ready.
Repeat this task for the other two screws.
Fig. 13-3: Ready to tighten!
Rostock MAX v2 Assembly Guide
13 – Installing the Hot End
Next, set the hot end on the screw and
thread a #6-32 nylon lock nut on the screw. It
doesn't need to be tightened yet – we just want it
there to keep the screw from falling out the bottom.
Fig. 13-2: First of three done.
166
