Rostock MAX v2 Assembly Guide

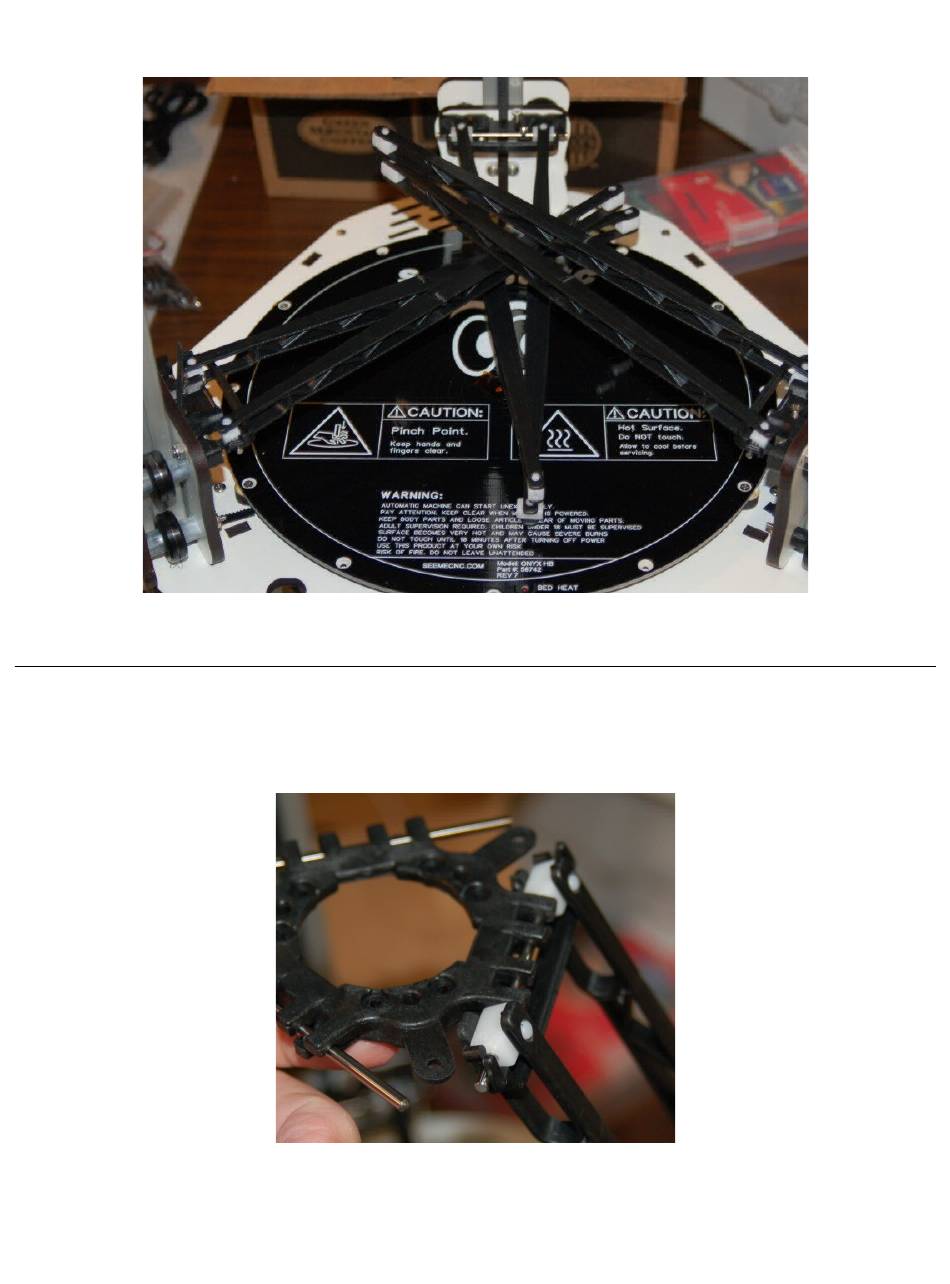

Fig. 12-15: All six arms installed.
Attaching the Effector Platform
For this task, you'll need the remaining three retaining clips and the assembled effector
platform. The delta arms attach to the effector platform just as they did to the Cheapskates. Take care
to make sure the ejector pin marks are facing outward!
Fig. 12-16: First two arms attached.
164
