Next, I want you to feed the belt down and under the upper idler and around the top of the GT2
drive gear as shown in Fig. 9-2.
Pass the belt around the gear and under the lower idler as shown below.
Rostock MAX v2 Assembly Guide

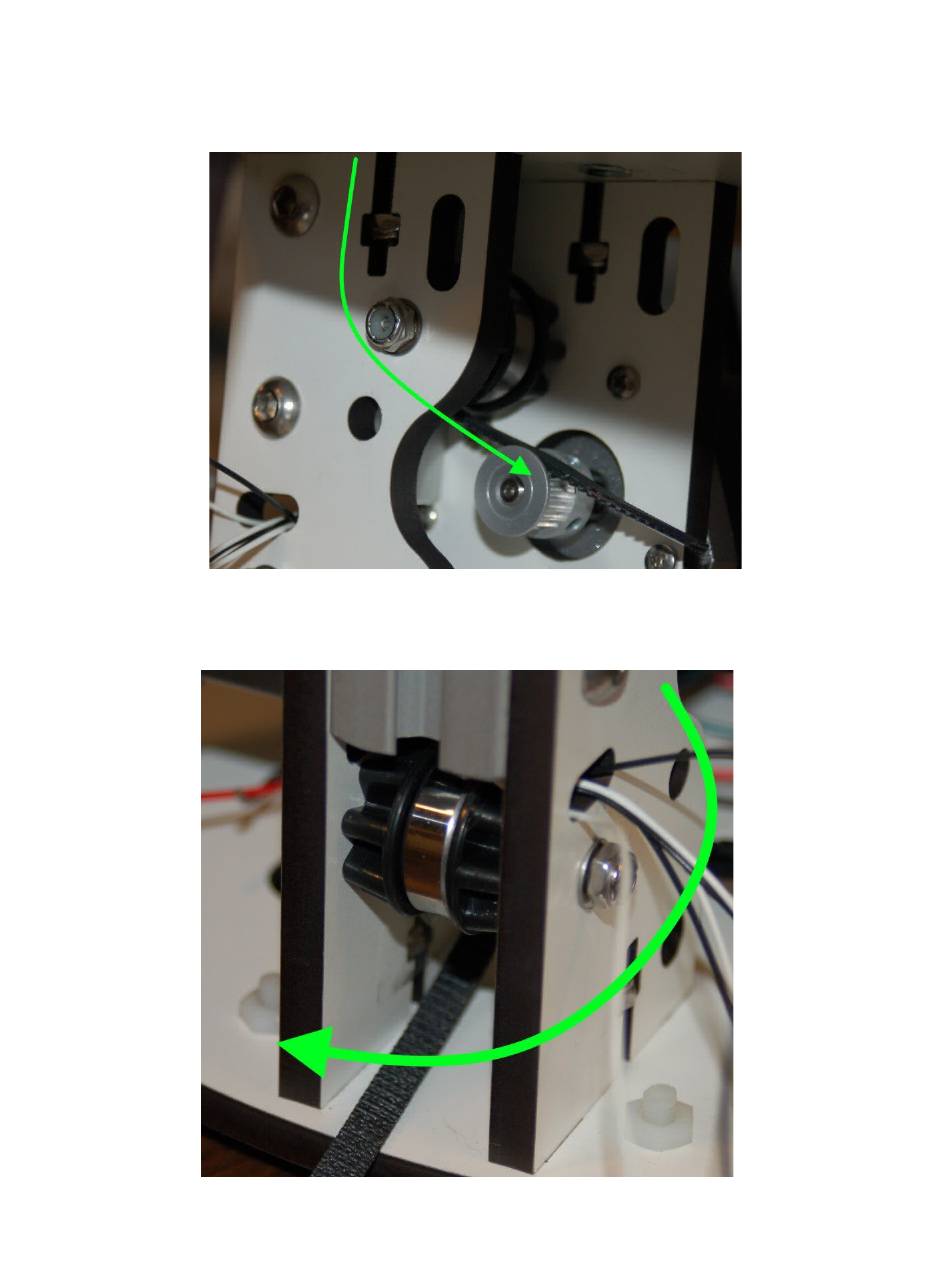

Fig. 9-2: Passing under the idler and over the gear.
Fig. 9-3: Around the gear and under the idler...to
Grandmother's house we go...
128
