Make sure that the hot end is turned such that the sides of the PEEK fan shroud can go to either
side of the hot end body, but not trap a wire between the shroud and the hot end. You do NOT want
wires jammed against the hot end by the fan shroud! When you slide the fan shroud into place, the
"arms" should come in full contact with the 1" aluminum spacers to either side.

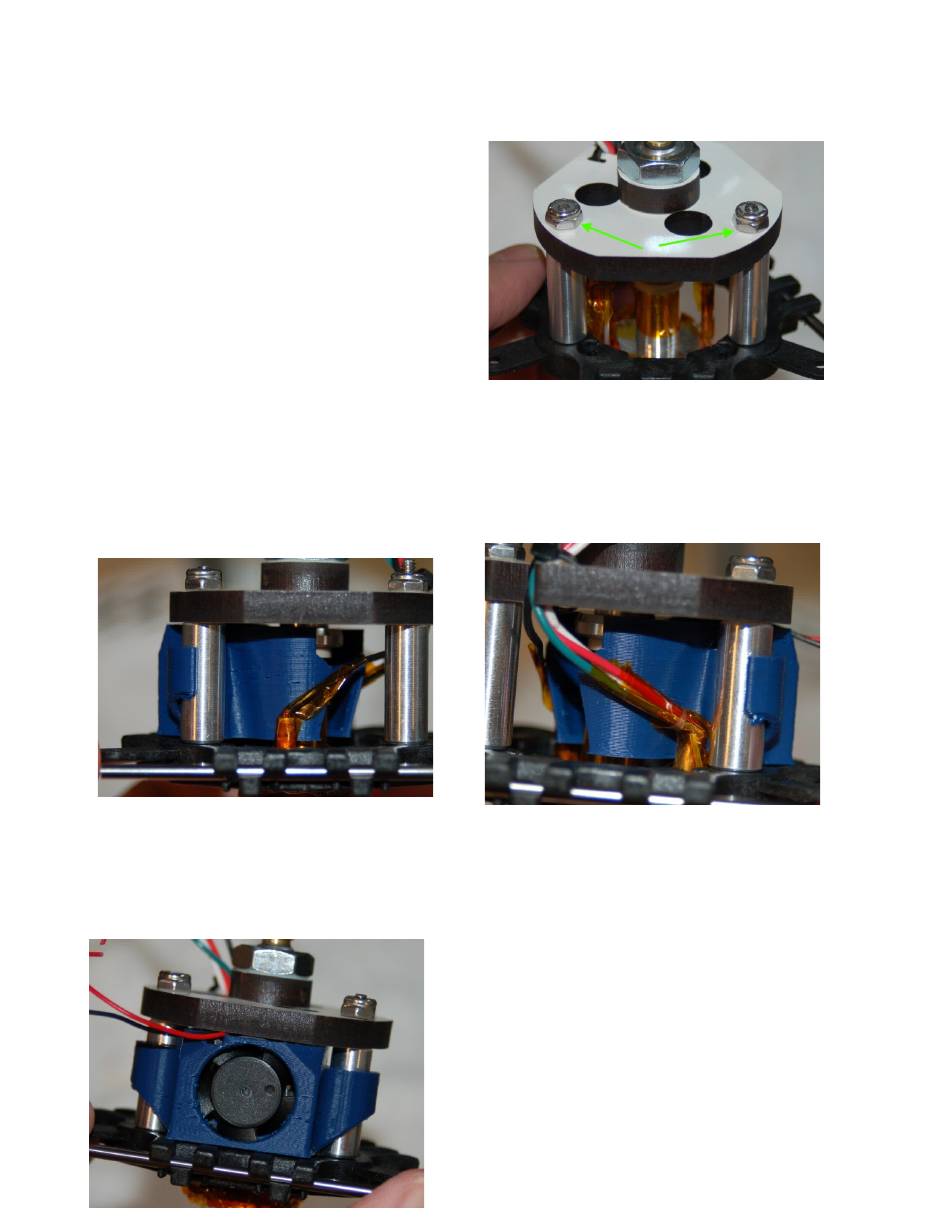

Fig. 20-27: Side view of fan shroud
installation.
Fig. 20-29: What is it with all these angles?
Rostock MAX v2 Assembly Guide
Fig. 20-26: Loose screws. (But you knew
that, right?)
Fig. 20-28: Another side view...
loosened in order to install the fan and attach the
fan leads to the knotted pair of 26ga wires coming
Now tighten down the two screws you
